No. Part Name
A AC trunk cable
B AC trunk connector unlock tool
C AC trunk end cap
D M8*25 bolts (optional)
Table 4.1
Installation parts
B
C
E D
Multi-machine system

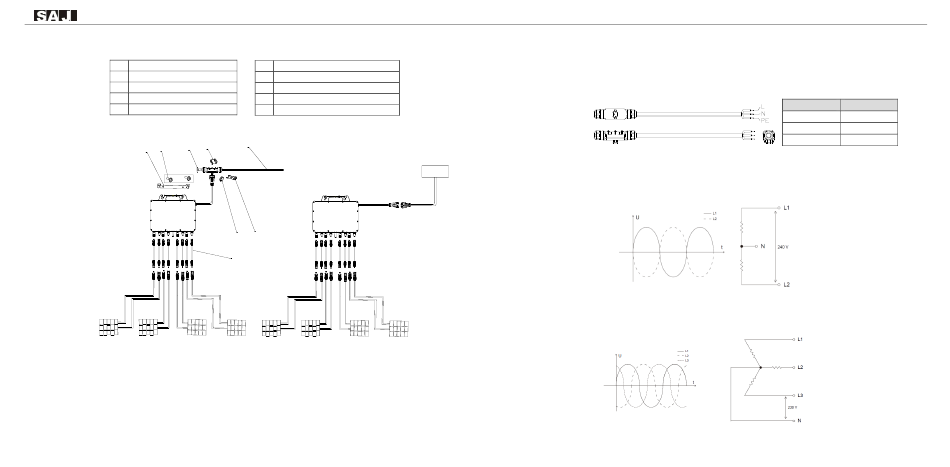

Figure 4.1
Connection diagram
19
No. Part Name
E Mounting bracket (optional)
F AC trunk port cap
G AC trunk port disconnect tool
I DC extension cable (optional)
A
G
F
I
Single-machine system

4.3 AC Side Cable Connection

Step1: Take out the AC connector from the package.
Figure 4.2
Connector wiring
Grid
(1) If the micro-inverter is connected to 120/240V split-phase power grid, connect two live lines to port L and
port N.
Figure 4.3
Split-phase power grid
(2) If the micro-inverter is connected to 230/400V three-phase WYE power grid, connect the live line to port
L and connect the neutral line to port N, as the connection of single-phase power grid.
Figure 4.4
Three-phase WYE power grid
M2 Series Micro-inverter
Wire Color
L Red
N Black
PE Green
