38Mm Ring / 42Mm Ring Mounting - PROAIM ST-RGDB-01 Assembly Manual


Press the locking lever of the Docking Plate to
remove the 54mm ring.

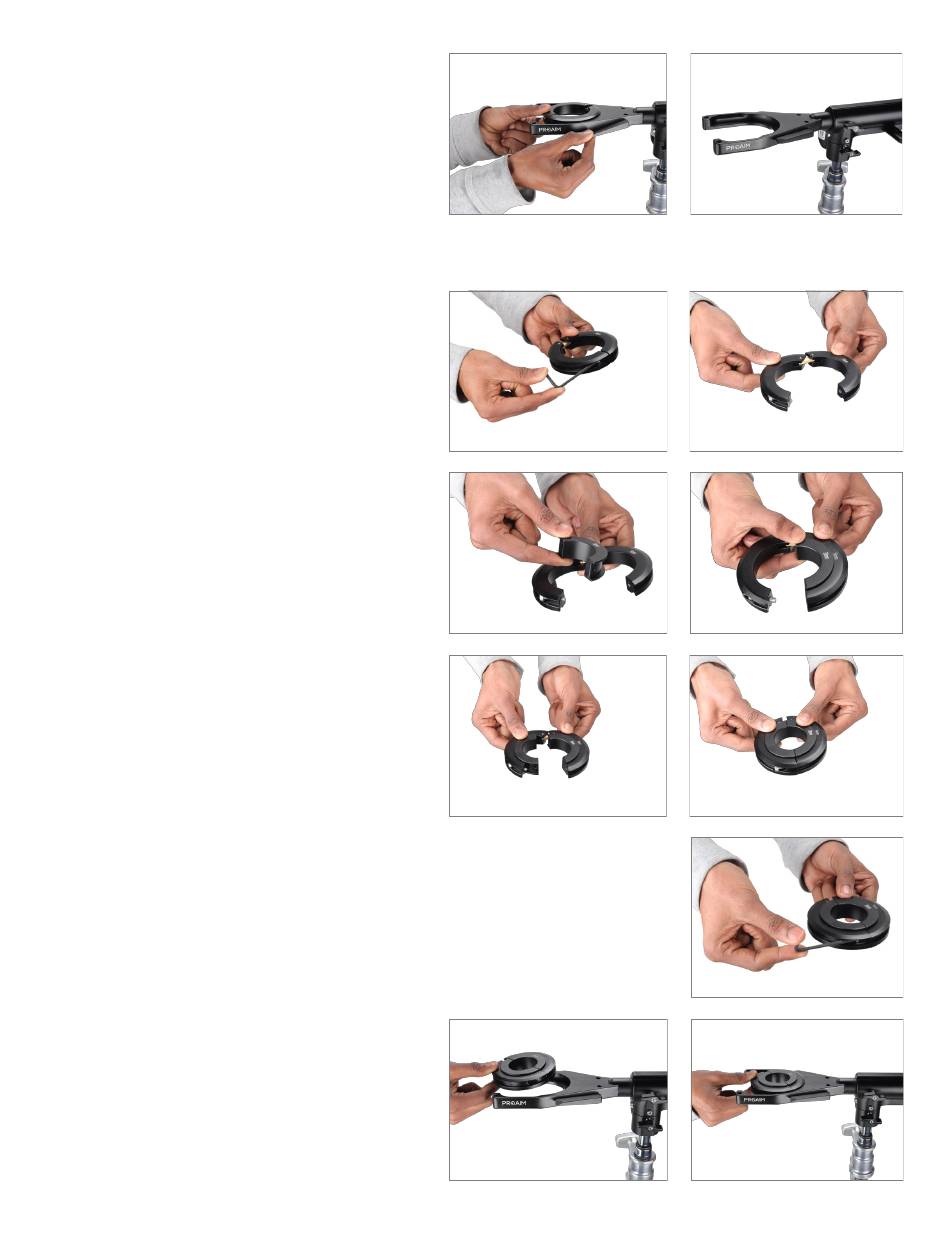

38mm Ring / 42mm Ring Mounting


Loosen screw of the 54mm ring using the
3mm Allen key to open the ring.

Insert one-half of the 38mm ring into the
54mm ring securely.

Now, insert the other half of the 38mm ring
into the 54mm and close it.

After closing the ring securely, tighten the
screw using the 3mm Allen key.

Now, mount both the rings to the Docking
Bracket and lock them using the locking
lever.
