Summary of Contents for Creative Play OAKMERE ACTIVITY CENTRE

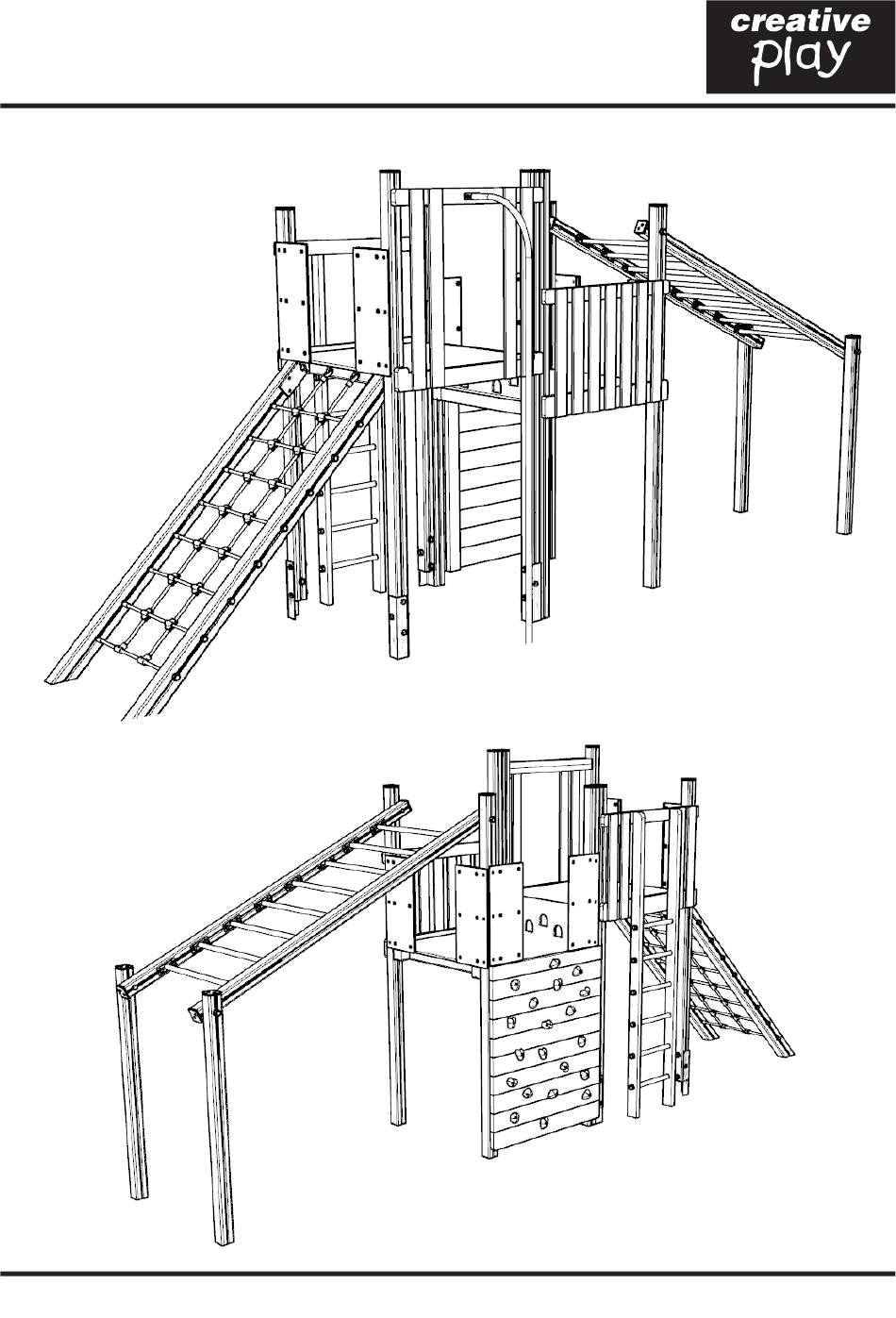

- Page 1 AC202 - OAKMERE ACTIVITY CENTRE Installation Instructions REF: AC202 - OAKMERE ACTIVITY CENTRE pg 1 of 13...
- Page 2 FOUNDATIONS SOIL (150mm) POST SHOE CONCRETE REF: AC202 - OAKMERE ACTIVITY CENTRE pg 2 of 13...
-
Page 3: Surfacing Details
SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: AC202 - OAKMERE ACTIVITY CENTRE pg 3 of 13... -
Page 4: Parts Required
PARTS REQUIRED JIGSAW FLOOR ASSEMBLY 274.M12X180 656.M12 102003-01 97.M8X180CSK STEPPING PANEL 97.M8X80CSK REF: AC202 - OAKMERE ACTIVITY CENTRE pg 4 of 13... - Page 5 PARTS REQUIRED - POST SHOE FIXINGS 90X90 POST SHOE 274.M12X120 CUP SQUARE 656.M12 - NYLOCS 102003-01 274.M12X200 CUP SQUARE REF: AC202 - OAKMERE ACTIVITY CENTRE pg 5 of 13...
- Page 6 AC202 - A4 2862 PLATFORM A AC202 - B1 2623 PLATFORM B AC202 - B2 2623 PLATFORM B AC202 - B3 2862 PLATFORM B AC202 - B4 2862 PLATFORM B REF: AC202 - OAKMERE ACTIVITY CENTRE pg 6 of 13...
- Page 7 .inc standard fixings .inc standard fixings .inc standard fixings JIGSAW STANDARD PART JIGSAW STANDARD PART JIGSAW STANDARD PART JIG1814 - NET CLIMBER JIG1816 - RUNG LADDER JIG1817 - FIREFIGHTERS POLE 274.M12X180 REF: AC202 - OAKMERE ACTIVITY CENTRE pg 7 of 13...
-
Page 8: Installation Instructions
PRE - ASSEMBLE PLATFORM A USING TIMBERS IN LOCATION SHOWN BELOW ENSURE ALL PLANE FACES POINT IN SAME DIRECTION (GREY) & COUNTERSINKS ON OUTSIDE OF PLATFORM AC201-A4 AC201-A3 AC201-A1 AC201-A2 REF: AC202 - OAKMERE ACTIVITY CENTRE pg 8 of 13... - Page 9 PRE - ASSEMBLE PLATFORM B USING TIMBERS IN LOCATION SHOWN BELOW ENSURE ALL PLANE FACES POINT IN SAME DIRECTION (GREY) & COUNTERSINKS ON OUTSIDE OF PLATFORM AC201-B4 AC201-B1 AC201-B3 AC201-B2 NOTES: SEE NEXT STEP FOR ATTACHING THE POSTS SHOES REF: AC202 - OAKMERE ACTIVITY CENTRE pg 9 of 13...
- Page 10 TURN POSTS SHOES ON B2/B3 TO BE POSITIONED ON THE INSIDE OF THE PLATFORM ONLY BOLT POST SHOES ON GROOVED FACE OF B2/B3 TIMBERS USING 274.M12X120 / 656.M12 / 102003-01 AC201-B3 AC201-B2 !! ONLY BOLT POST SHOES TO B2/B3 ON GROOVED FACE !! REF: AC202 - OAKMERE ACTIVITY CENTRE pg 10 of 13...
- Page 11 FURTHER SECURE ANY TIMBERS BUTTED UP TO EACH OTHER (SEE BELOW) USING M8X180MM WOOD SCREWS, TIMBERS SHOULD BE SCREWED TOGETHER FROM FRONT & BACK OF PLANE A4/B3 TIMBERS A1/B2 TIMBERS NOTES: ENSURE ALL HOLES ARE COUNTERSUNK REF: AC202 - OAKMERE ACTIVITY CENTRE pg 11 of 13...
- Page 12 USING STANDARD JIGSAW INSTRUCTIONS JIG102 - GUARD RAIL - STRAIGHT JIG1817 - FIREFIGHTERS POLE JIG1814 - NET CLIMBER JIG1814 - NET CLIMBER JIG1816 - RUNG LADDER JIG1515 - CLIMBING PANEL WITH BLOCKS REF: AC202 - OAKMERE ACTIVITY CENTRE pg 12 of 13...
-
Page 13: Additional Dimensions
ADDITIONAL DIMENSIONS REF: AC202 - OAKMERE ACTIVITY CENTRE pg 13 of 13...
