Summary of Contents for Creative Play OS120

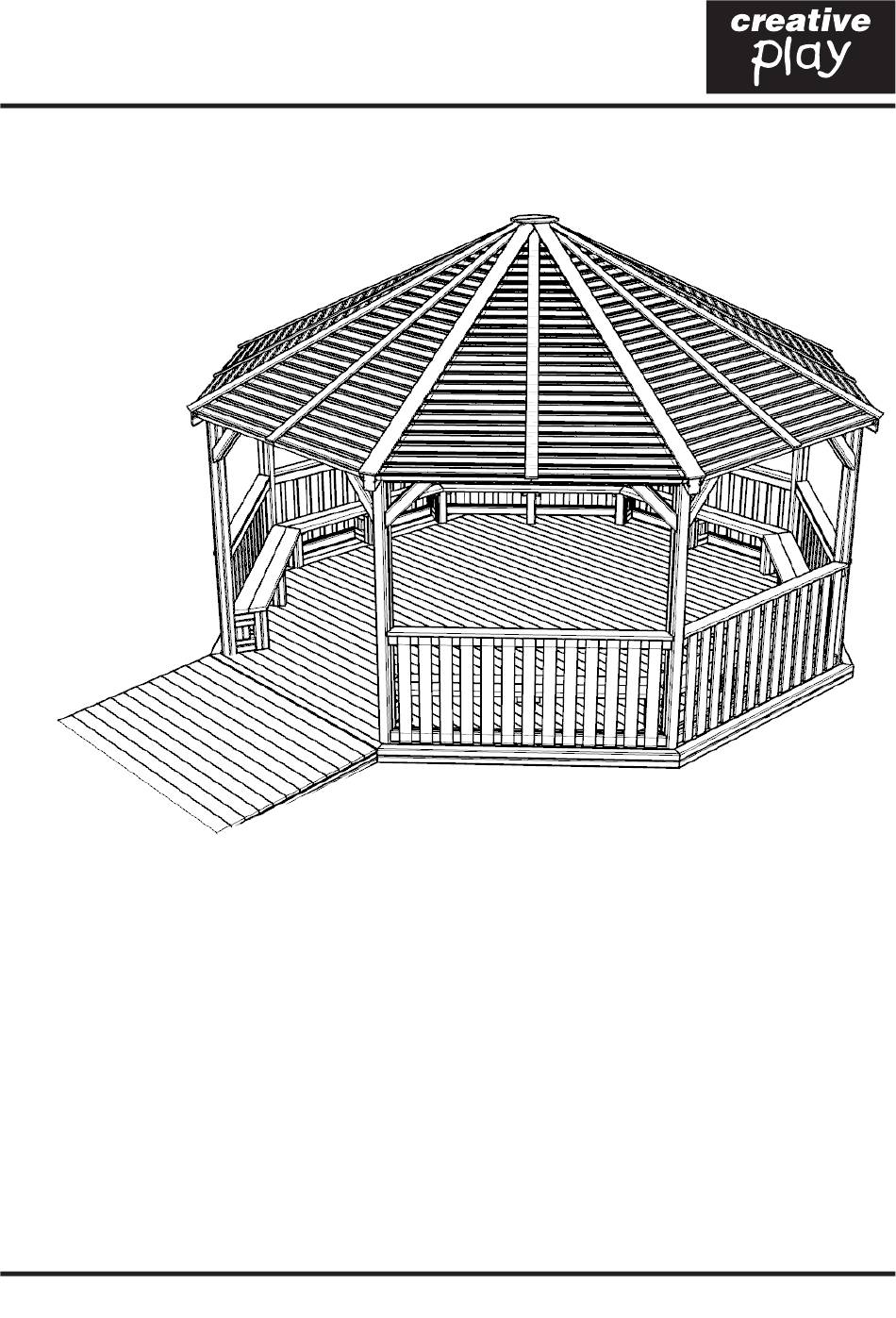

- Page 1 OS120 (6M) - RAMP Installation Instructions REF: OS120 (6M) - RAMP pg 1 of 5 27.08.2019...
-
Page 2: Parts Required
PARTS REQUIRED PRE - ASSEMBLED RAMP OS120 - a (LOOSE TIMBERS) OS120 - b (LOOSE TIMBERS) 97.M8X120CSK 97.M8X180CSK REF: OS120 (6M) - RAMP pg 2 of 5... -
Page 3: Foundation Details
NOTES: DIG 120MM DEPTH “TRENCHES” (DOTTED LINE) AROUND OS120 - c TIMBERS CENTRE TRENCH TO TIMBER (APPROX 55MM EITHER SIDE OF OS120 - c TIMBERS) RAMP SHOULD SIT IN GROUND AS SHOWN BELOW (SOME WILL BE BURIED) *DOTTED LINE =... -
Page 4: Installation Instructions
USING M8X120MM WOOD SCREWS, ENSURE THEY ARE POSITIONED IN LOCATIONS SHOWN NOTES: ENSURE 2 SCREWS ARE INSERTED INTO EACH LOOSE TIMBER AS SHOWN ABOVE OS120 - a TIMBERS (LONGEST LOOSE) POSITIONED FLUSH ON OCTAVIA SHELTER ENTRANCE - SEE BELOW OCTAVIA SHELTER ENTRANCE HERE 0S120 - a... - Page 5 TO FURTHER SECURE THE RAMP ASSEMBLY TO THE OCTAVIA SHELTER USING M8X180MM WOOD SCREWS OCTAVIA FLOOR SURROUND - ENTRANCE NOTES: SCREW THROUGH OS120 - a TIMBERS INTO OCTAVIA FLOOR SURROUND ASSEMBLY TO SECURE THE RAMP ENSURE SLAT TIMBERS ARE SCREWED BACK INTO PLACE AFTER SECURING ENSURE AREA AROUND TRENCHES ARE MADE GOOD...
