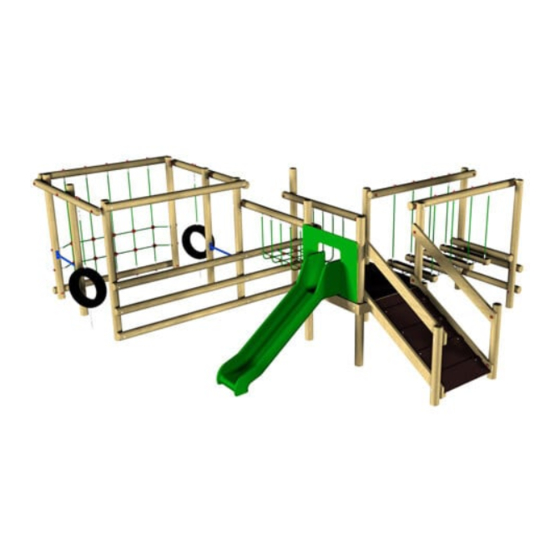

- Page 1 DART ACTIVITY CENTRE ROUND Installation Instructions REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 1 of 16...
-
Page 2: Parts Required
PARTS required (LOG WALK) (NET) (BRIDGE NET) (TYRE +ROPE+ CHAIN) (1m SLIDE) (RAMP) REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 2 of 16... - Page 3 (FM40 ‘Brass screws’) (end caps) (M8 Plastic Cover) (end caps R60) (small caps blue) (120 Distance piece) 120 label is shown on the inside (0.88m STANDARD BAR) (D-Shackle ) (M12 ‘NYLOC’) REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 3 of 16...
-
Page 4: Tools Required
AC101Rg 125mm 3000 ø AC101Rh 125mm 3000 ø AC101Ri 125mm 2470 ø AC101Rj 125mm 3000 ø AC101Rk 125mm 1330 ø AC101Rl 125mm 1330 ø AC101Rn 125mm 1871 TOOLS required REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 4 of 16... -
Page 5: Foundation Details
Foundation Details SLIDE LOG WALK TYRE CONCRETE TYRE CONCRETE finished ground level Soil Timber support post Concrete REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 5 of 16... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 6 of 16... - Page 7 Attach the Timber to the Timbers CF101Rh CF101Ra/b/c/d/e AC101Ra Using 12x 120 Distance piece/ 6x @300mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x END CAPS R60 REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 7 of 16...
- Page 8 Using 8x 120 Distance piece/ 4x @300mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 Attach NET to the Timbers CF101Rd/e/f Using 14x NYLOCS / 14x END CAPS R60 REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 8 of 16...
- Page 9 Using 22x 120 Distance piece/ 11x @300mm M12 SQUARE CUP HEX BOLTS / 11x NYLOCS / 11x END CAPS R60 Attach the Timber AC101Rd to the Timbers AC101Ra/b/e/f Using 8x 120 Distance piece/ 4x @300mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 9 of 16...
- Page 10 Using 8x 120 Distance piece/ 4x @300mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 Attach the Timber AC101Rl/k to the Timbers AC101Rj Using 12x 120 Distance piece/ 6x @300mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x END CAPS R60 REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 10 of 16...
- Page 11 Using 4x @180mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 Attach the Net Bridge and Ramp SIDE PANEL to the Timbers AC101Re/f/g/h Using 12x FM80 Brass ‘Screws’ REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 11 of 16...
- Page 12 Using 4x (3B) / 6x(4B) / 6x (N1) / 6x (N3) TORKTAINERS Attach the Timber AC101Rs to the Timbers AC101Rg/h/n Using 4x @180mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 12 of 16...
- Page 13 Attach the TYRE ASSEMBLY to the CF101Rh Using 4x @140mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 / 2x Swing Hangers / 2x D-Shackle/ 8x M8 Plastic Covers REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 13 of 16...
- Page 14 Using 16x NYLOCS / 13x END CAPS R60 / 3x END CAPS Attach the LOG WALK to the AC101Ri/k and SIDE PANEL Using 12x NYLOCS / 10x END CAPS R60 / 2x END CAPS (M12 x 140 Eyebolt) REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 14 of 16...
- Page 15 Installation Instructions Attach the SLIDE TO THE PLATFORM Using 4x “FM80 Brass Screws” / 2x “FM40 Brass Screws” and Slide Fittings REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 15 of 16...
-
Page 16: Additional Dimensions
Additional Dimensions REF: AC101-R - DART ACTIVITY CENTRE ROUND pg 16 of 16...
