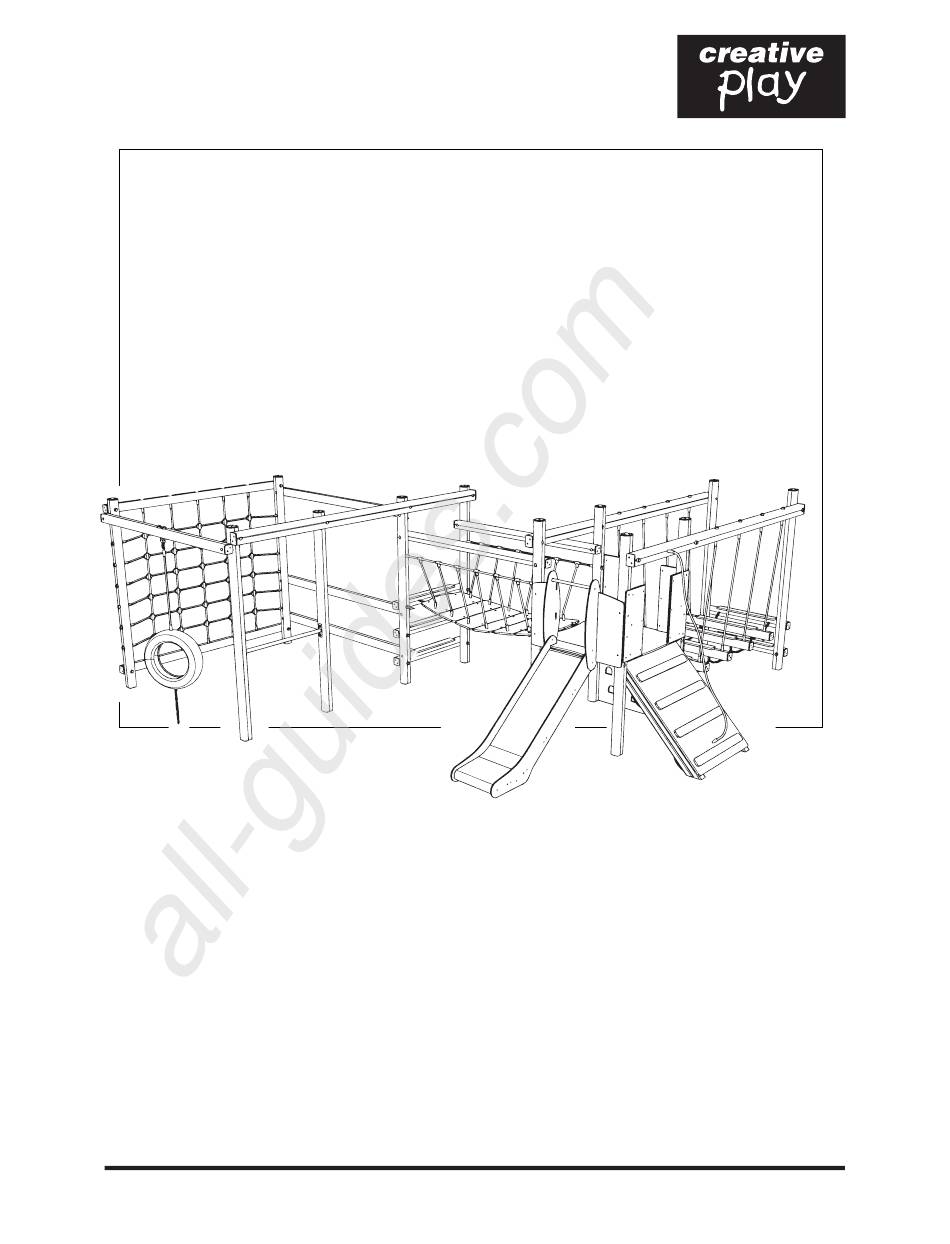

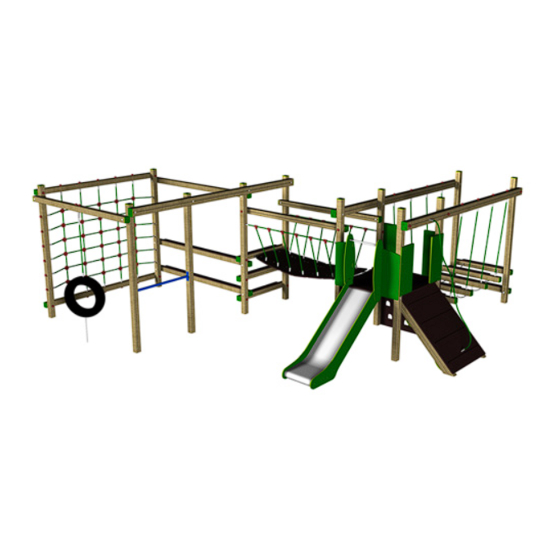

- Page 1 All manuals and user guides at all-guides.com TRENT ACTIVITY CENTRE Installation Instructions REF: AC102 - TRENT ACTIVITY CENTRE pg 1 of 19...
-
Page 2: Parts Required
All manuals and user guides at all-guides.com PARTS required (Log Walk Pre-assembly) LEFT (CLATTERBRIDGE) (SLIDE SIDE) RIGHT (SLIDE SIDE) (1m SLIDE) (CLATTERBRIDGE 90 x 90 FLOOR) (1m CLIMBING WALL) (ZENITH STANDARD FLOOR 90x90) (FLAT SIDES) (ROPE CLIMB) (GROOVED SIDES) (RAMP ROPE) REF: AC102 - TRENT ACTIVITY CENTRE pg 2 of 19... - Page 3 All manuals and user guides at all-guides.com PARTS required (TYRE +ROPE+ CHAIN) (1m STANDARD BAR) (HEXBOARD RAMP) (RAMP Assembly) (800x90mm SLATS ) (M8 Plastic Cover) (M12 x 100 Square Cup HEX bolt) (M12 x 130 Square Cup HEX bolt) (end caps) (M12 x 150 Square Cup HEX bolt) (small end caps) (M12 x 200 Square Cup HEX bolt)
-
Page 4: Tools Required
All manuals and user guides at all-guides.com TIMBERS required CODE TYPE SIZE QTY CODE TYPE SIZE QTY AC101a 90x90 3000 AC101k 90x90 1145 AC101b 90x90 3000 AC101l 90x90 1145 AC101c 90x90 3000 AC101m 90x90 1145 AC101d 90x90 3000 AC101o 90x90 2100 AC102d 90x90... -
Page 5: Foundation Details
All manuals and user guides at all-guides.com Foundation Details FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil 1023 RAMP CLATTERBRIDGE CROSSING SLIDE TYRE REF: AC102 - TRENT ACTIVITY CENTRE pg 5 of 19... -
Page 6: Surfacing Details
All manuals and user guides at all-guides.com Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: AC102 - TRENT ACTIVITY CENTRE pg 6 of 19... - Page 7 All manuals and user guides at all-guides.com Installation Instructions Install the timbers AC101a/b/c/d/h/i and AC102b/c/d Follow fundation details AC102b AC102c AC102d Attach the floor to the timbers AC101b/c and place the Hexboard on top Using 4x @150mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 7 of 19...
- Page 8 All manuals and user guides at all-guides.com Installation Instructions Attach the TIMBERS AC101t/v to the TIMBERS AC101a/b/c Using 6x @200mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x RED CAPS Attach the timbers AC101l/k to the TIMBERS AC101a Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 8 of 19...
- Page 9 All manuals and user guides at all-guides.com Installation Instructions Attach the TIMBERS AC101k/m (with the Slats on) to the TIMBERS AC101d AC102d Using 6x @200mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x RED CAPS AC102d NOTES: Attach 800mm x 90mm Slats to 210mm from AC102d Attach the TIMBER AC101s to the TIMBERS AC101d/i/h, AC102d...
- Page 10 All manuals and user guides at all-guides.com Installation Instructions Attach the TIMBERS AC101q and AC102a to the TIMBERS AC101/h- AC102b/c/d Using 8x @200mm M12 SQUARE CUP HEX BOLTS / 8x NYLOCS / 8x RED CAPS AC102a AC102a AC102d AC102b AC102c Attach the TIMBER AC101p to the TIMBERS AC102b/c Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS AC102b...
- Page 11 All manuals and user guides at all-guides.com Installation Instructions Attach the RAMP to the AC101c Using 2x @200mm M12 SQUARE CUP HEX BOLTS / 2x NYLOCS / 2x RED CAPS / 10x FM80 Brass Screws RAMP HOLE - 148mm from the top of the floor - 850mm from the ground -1412mm from the top REF: AC102 - TRENT ACTIVITY CENTRE...
- Page 12 All manuals and user guides at all-guides.com Installation Instructions Attach the EYEBOLTS to the TIMBERS AC101l/m Using 4x @130mm M12 EYEBOLT / 4x NYLOCS / 4x RED CAPS AC102d Attach the TYRES to the SWING HANGERS Using 1x D-SHACKLE / 4x M8 Plastic covers REF: AC102 - TRENT ACTIVITY CENTRE pg 12 of 19...
- Page 13 All manuals and user guides at all-guides.com Installation Instructions Attach the NET to the TIMBERS AC101q , AC102b/c Using 22x NYLOCS / 22x RED CAPS AC102b AC102c Attach the CLATTERBRIDGE to the EYEBOLTS , METAL FLOOR and to the TIMBERS AC101b/d, AC102d Using (2x @80mm) (2x @130mm) M12 EYEBOLT/ 6x NYLOCS / 6x RED CAPS / 4 QUICKLINKS AC102d REF: AC102 - TRENT ACTIVITY CENTRE...
- Page 14 All manuals and user guides at all-guides.com Installation Instructions Attach the TIMBERS AC101j and 1m CLIMBING HEXBOARD to AC101b/c Using 14x FM80 ‘Brass Screws’ Attach the EYEBOLTS to AC101j and HEXBOARD Using 2x @130mm M12 EYEBOLT / 2x NYLOCS / 2x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 14 of 19...
- Page 15 All manuals and user guides at all-guides.com Installation Instructions Attach the LOG WALK to the EYEBOLTS and AC101t/v Using 4x QUICKLINK / 8x NYLOCS / 8x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 15 of 19...
- Page 16 All manuals and user guides at all-guides.com Installation Instructions Attach STANDARD BAR to the TIMBERS AC101h/i Using 4x FM80 ‘Brass Screws’ / 4x Small end caps Attach the RAMP ROPE to the ramp and AC101v Using 2x NYLOCS / 2x RED CAPS REF: AC102 - TRENT ACTIVITY CENTRE pg 16 of 19...
- Page 17 All manuals and user guides at all-guides.com Installation Instructions Attach the SLIDE to the HEXBOARD FLOOR Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ Insert the SLIDE SIDES to the SLIDE and to the timbers AC101b/c 4x ‘FM80 Brass Screws’ REF: AC102 - TRENT ACTIVITY CENTRE pg 17 of 19...
- Page 18 All manuals and user guides at all-guides.com Installation Instructions Attach the RAMP and LOG WALK SIDE PANELS Using 14x ‘FM80 Brass Screws’ RAMP SIDE PANEL (4x Brass Screw holes) each panel LOG WALK SIDE PANEL (3x Brass Screw holes) each panel REF: AC102 - TRENT ACTIVITY CENTRE pg 18 of 19...
-
Page 19: Additional Dimensions
All manuals and user guides at all-guides.com Additional Dimensions REF: AC102 - TRENT ACTIVITY CENTRE pg 19 of 19...
