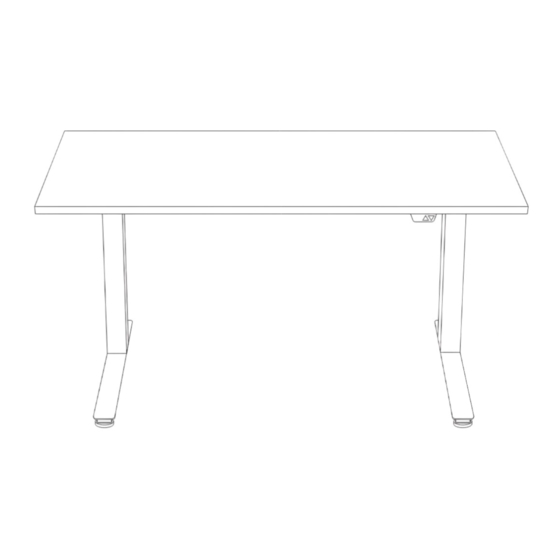

- Page 1 How to Assemble: The Sit-to-Stand Desk...
- Page 2 Components: 1x Base Unit 2x Screws The Sit-to-Stand Desk 8x Covers 8x Small Threaded Bolts 1x Desk Top (47”, 59” or 70”) 2x Large Threaded Bolts 1x #6 Hex Tool 4x Zip Ties 1x #3 Hex Tool NOTE: You’ll also need: a #2 Phillips Head Screwdriver and a Level.
- Page 3 Step: 1 Remove cover, filler box, and hardware box. Inspect hardware to ensure parts are not discarded. Pro Tip: If you’re considering a return, save your packaging! Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 4 Step: 2 To protect base and floor, leave the base in the cardboard tray. Remove wrap and fold legs out. Then, tighten the 4 screws on either side of each leg. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 5 Step: 3 Lift legs ouf of tray and place on desktop, then loosen the two outer screws. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 6 Step: 4 Locate the two side rails and insert them into the side of the base as shown, then re-tighten outer screws. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 7 Step: 5 Next, locate the feet and attach them via the pre-inserted screws. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 8 Then, align the base with the corresponding holes in the under side of the top and attach with 2 bolts (D) on the center rail, and 4 bolts (C) on both side rails. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 9 Step: 7 Tighten the two locking pins on either side of the rail. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 10 #2 Philips head screw driver. Use zip ties to secure cables underneath desk surface. Control panel can be re- positioned to reverse side of desk top. See section 3 of user manual. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 11 Step: 9 With help, flip The Desk upright and use the feet at the front and back of each rail to ensure that your desk is level. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
- Page 12 Step: 10 Plug in your new desk Maximum load: and enjoy! 120 kg / 264.5 lb For any troubleshooting needs, please refer to the User Guide. Assembly Instructions: The Desk System The Sit-to-Stand Desk...
-
Page 13: Troubleshooting
The desk can only drive in one Perform a reset. direction (up or down). The desk is not horizontal. Perform a reset. During reset, only one column Perform a reset. is moving downward. Assembly Instructions: The Desk System The Sit-to-Stand Desk... - Page 14 We suggest lbs). Do not stand on the Sit-to-Stand Desk. Standing or leaning on the Desk using watertight pots or plastic drainage trays and frequently cleaning the area may cause risk and personal injury.
