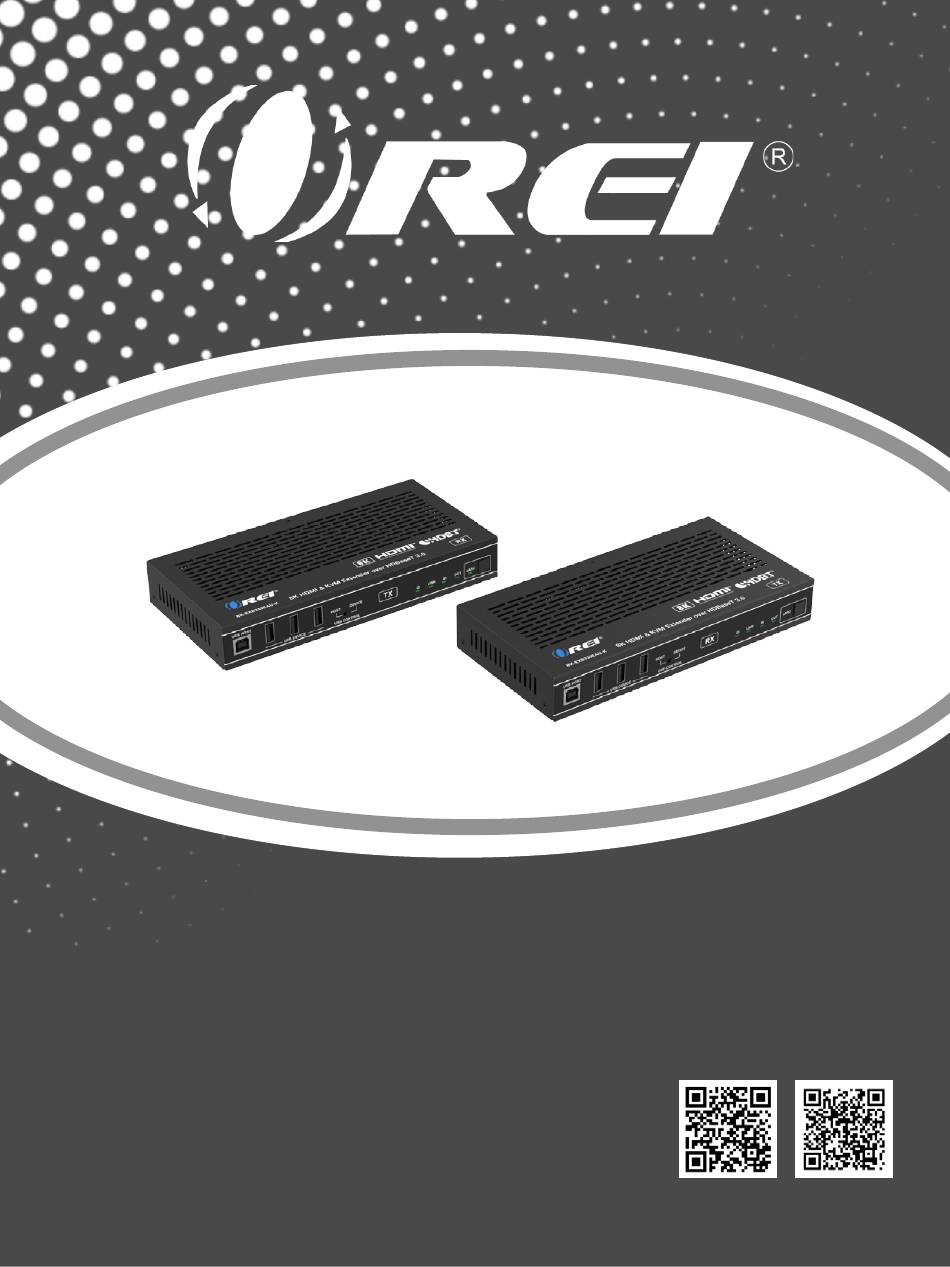

- Page 1 BK-EXB330EAU-K 8K HDMI & KVM Extender Follow us on Youtube and Facebook over HDBaseT 3.0 U SER M ANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Transmitter Panel Receiver Panel USB Mode Applications IR Pin Definition Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The BK-EXB330EAU-K HDMI extender is a versatile gadget that can send uncompressed HD/UHD video, audio, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals up to 330 feet with just a single CAT 6A/7 cable. It features support for video resolutions up to 8K@30Hz and 4K@120Hz. -
Page 5: Features
Features HDMI 2.1 & HDCP 2.3 compliant 40Gbps FRL & 18Gbps TMDS video bandwidth Video resolutions up to 8K@30Hz and 4K@120Hz HDBaseT 3.0 technology ARC/eARC Audio Extraction VRR, ALLM, FVA support HDR10+, Dolby Vision, and HLG pass-through USB 2.0 KVM function with speeds up to 350Mbps HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio 10. -
Page 6: Package Contents
Package Contents UBK-EXB330EAU-K Transmitter 1pcs BK-EXB330EAU-K Receiver 1pcs IR Blaster Cable (1.5m) 1pcs IR Wideband Receiver Cable (1.5m) 1pcs 3pin-3.81mm Phoenix Connector 2pcs Mounting Ear 4pcs Machine Screw 8pcs Rubber Feet 8pcs 24V/2.7A Locking Power Supply 1pcs User Manual 1pcs... -
Page 7: Specifications
Specifications Technical HDCP Compliance HDCP 2.3 Video Bandwidth Up to 40Gbps FRL and 18Gbps TMDS USB Bandwidth Up to 350Mbps Video Resolution Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit IR Level 5Vp-p/12Vp-p IR Frequency 20K - 60KHz Color Depth 8/10/12bit Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0... - Page 8 Specifications Connection Input: 1 × HDMI IN [Type A, 19-pin female] 1 × HDBT IN [RJ45, 8-pin female] 1 × AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 × HDMI OUT [Type A, 19-pin female] 1 × AUDIO OUT [3.5mm Stereo Mini-jack] Receiver Control: 1 ×...
-
Page 9: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel USB HOST HOST DEVICE LINK eARC USB CONTROL USB DEVICE eARC AUDIO DC 24V ETHERNET IR IN IR OUT RS-232 HDBT OUT HDMI IN HDMI OUT EDID CONFIG Name Function Description USB HOST Connect to a PC or Laptop using a USB-B to A cable. Three USB extension ports, connected to a USB drive, mouse or USB DEVICE keyboard. - Page 10 Operation Controls and Functions Name Function Description Video signal output indicator. OUT LED ▪ On: There is HDMI signal output. ▪ Off: There is no HDMI output or the system is powered off. Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following.
- Page 11 Operation Controls and Functions Name Function Description Data Signal ▪ On: HDMI signal with HDCP. ▪ Flashing: HDMI signal without HDCP. Indicator (Yellow) ▪ Off: No HDMI signal. ▪ On: Transmitter and receiver are in good connection status. Link Signal ▪...
-
Page 12: Receiver Panel
Operation Controls and Functions Receiver Panel USB HOST HOST DEVICE LINK eARC USB CONTROL USB DEVICE eARC AUDIO DC 24V ETHERNET IR IN IR OUT RS-232 HDBT IN HDMI IN HDMI OUT CONFIG Name Function Description USB HOST Connect to a PC or Laptop using a USB-B to A cable. Three USB extension ports, connected to a USB drive, mouse or USB DEVICE keyboard. - Page 13 Operation Controls and Functions Name Function Description Press the eARC button to enable/disable the eARC/ARC function, and the eARC LED will indicate the status as following. ▪ On: The eARC/ARC mode is enabled, and the device is working eARC LED normally.
- Page 14 Operation Controls and Functions Name Function Description Data Signal ▪ On: HDMI signal with HDCP. Indicator ▪ Flashing: HDMI signal without HDCP. (Yellow) ▪ Off: No HDMI signal. ▪ On: Transmitter and receiver are in good connection status. Link Signal ▪...
-
Page 15: Usb Mode Applications
Operation Controls and Functions USB Mode Applications The Extender supports USB2.0 transmission, and Host/Device is configurable. Mode 1: USB forward from TX to RX Switch the HOST/DEVICE USB CONTROL switch to left, then power off and reboot the transmitter to set to USB Host mode. Meanwhile, switch the HOST/DEVICE USB CONTROL switch to right, then power off and reboot the receiver to set to USB Device mode. -
Page 16: Ir Pin Definition
Operation Controls and Functions Computer NoteBook Host USB / Device USB / Host USB Host USB Host HDMI IN USB Host No Function UTP Cable HDMI OUT LOOPOUT USB Devices USB Devices Remote Monitor Local Monitor & & Keyboard Mouse Keyboard Mouse IR Pin Definition... -
Page 17: Application Example
Application Example Mode 1: eARC/ARC Application The Audio Return Channel (ARC) in HDMI 2.1 enables a TV, via a single HDMI cable or audio cable, to send audio data “upstream” to an A/V receiver, the extender will continue the upstream audio all the way to the transmitter. There it can be connected via HDMI ARC. - Page 18 Application Example Mode 2: Ordinary Connection Application Desktop Computer Network Cable Switch Audio Audio Network Cable HDMI Cable USB Cable Cable Cable USB HOST eARC AUDIO HOST DEVICE LINK eARC USB CONTROL USB DEVICE DC 24V ETHERNET IR IN IR OUT RS-232 HDBT OUT HDMI IN...
-
Page 19: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What is the maximum length of cable I can use with this device? The maximum length of cable you can use with this model is 330 feet. 2. Does this only work with CAT6/7? What if I have a CAT 5e cable? Our devices work with a CAT 5e cable as well. - Page 20 8K HDMI & KVM Extender over HDBaseT 3.0 BK-EXB330EAU-K www.orei.com © 2023...
