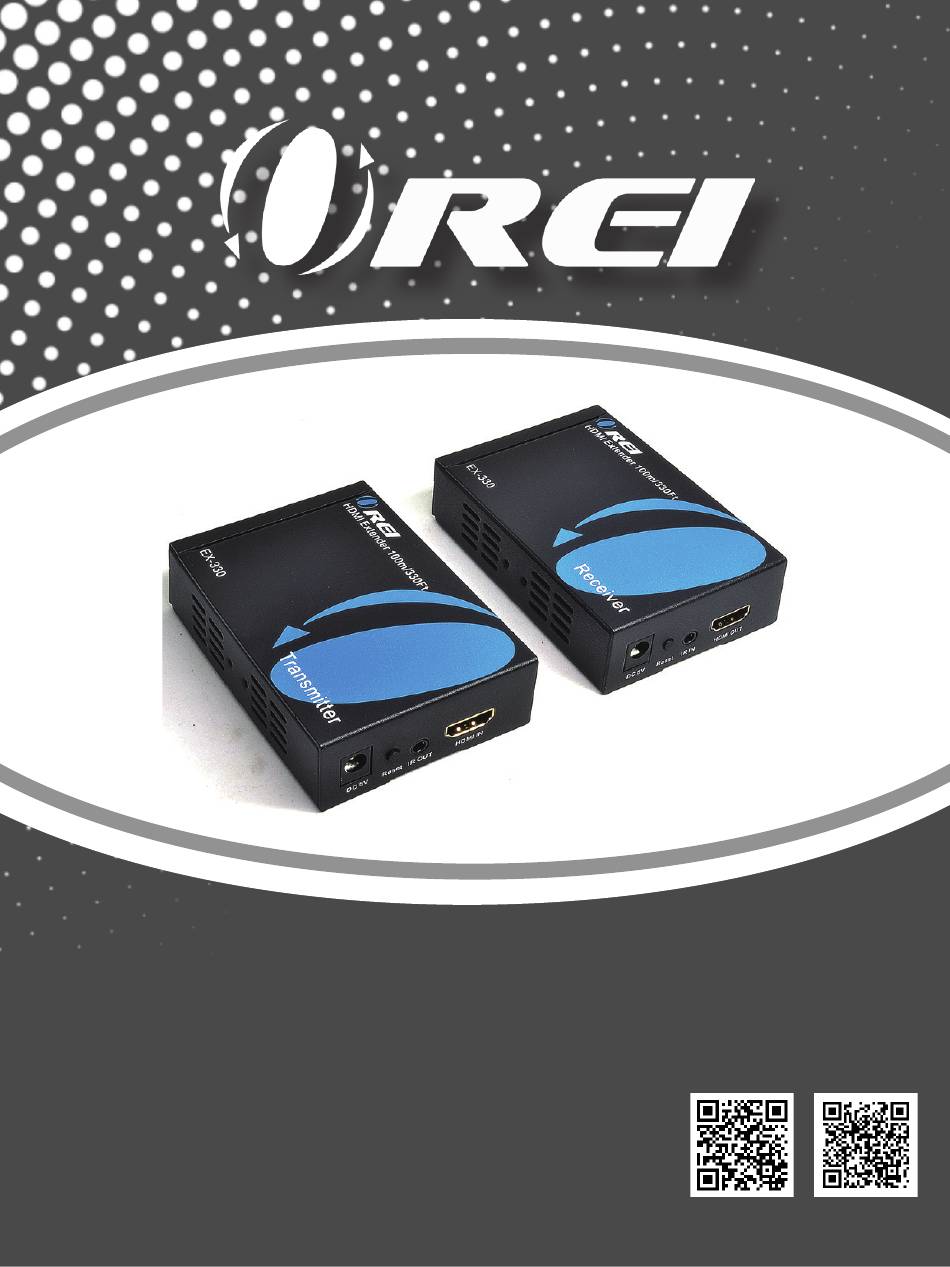

- Page 1 HDMI Extender over Follow us on Youtube and Facebook Single CAT 5E/6 (TCP/IP) U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The HDMI Extender over Single CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. -
Page 5: Features
Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant Support Deep Color up to 12 bits/color The maximum extended transmission distance via a single Cat6 cable is 328ft / 100 meters for 1080p signal Support one-way IR transmission (from receiver to transmitter) Support using one CAT 5E/6 cable for data/DDC transmission Cable testing showed that with 1080p resolution the HDMI input source can be 20 meters away... -
Page 6: Specifications
Specifications Specification HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.1 Video Bandwidth 2.25Gbps (single link) Video Resolution Up to 1080p Color Depth 12-bit ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) Input: 1x HDMI IN [Type A 19-pin female] Transmitter Outputs: 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT6 OUT [RJ45, 8-pin female]... -
Page 7: Operation Controls And Functions
Operation Controls and Functions Extender Name Function Description DC 5V DC 5V power input port. Reset button Factory reset button. When the Extender system functions have been changed, Pressing this button for 10 seconds can realize factory reset. IR OUT Connect to wideband IR Blaster cable. - Page 8 Operation Controls and Functions Receiver Name Function Description DC 5V DC 5V power input port. Reset button Factory reset button. When the Receiver system func- tions have been changed, Pressing this button for 10 seconds can realize factory reset. IR IN Connect to wideband IR Receiver cable.
- Page 9 Operation Controls and Functions Wideband IR (20KHz---60KHz) introduction IR RECEIVER IR BLASTER IR Cable Pin Assignment Control local device (Blu-ray player or DVD player, etc) from remote: The IR Re- ceiver is connected to the receiver IR in port. The CAT output connector on the HDMI Extender is connected via CAT6 cable to an HDMI receiver.
-
Page 10: Application Example
Application Example page 10... - Page 11 Application Example page 11...
- Page 12 Application Example page 12...
- Page 13 Application Example page 13...
- Page 14 HDMI Extender over Single CAT 5E/6 (TCP/IP) www.orei.com © 2021...
