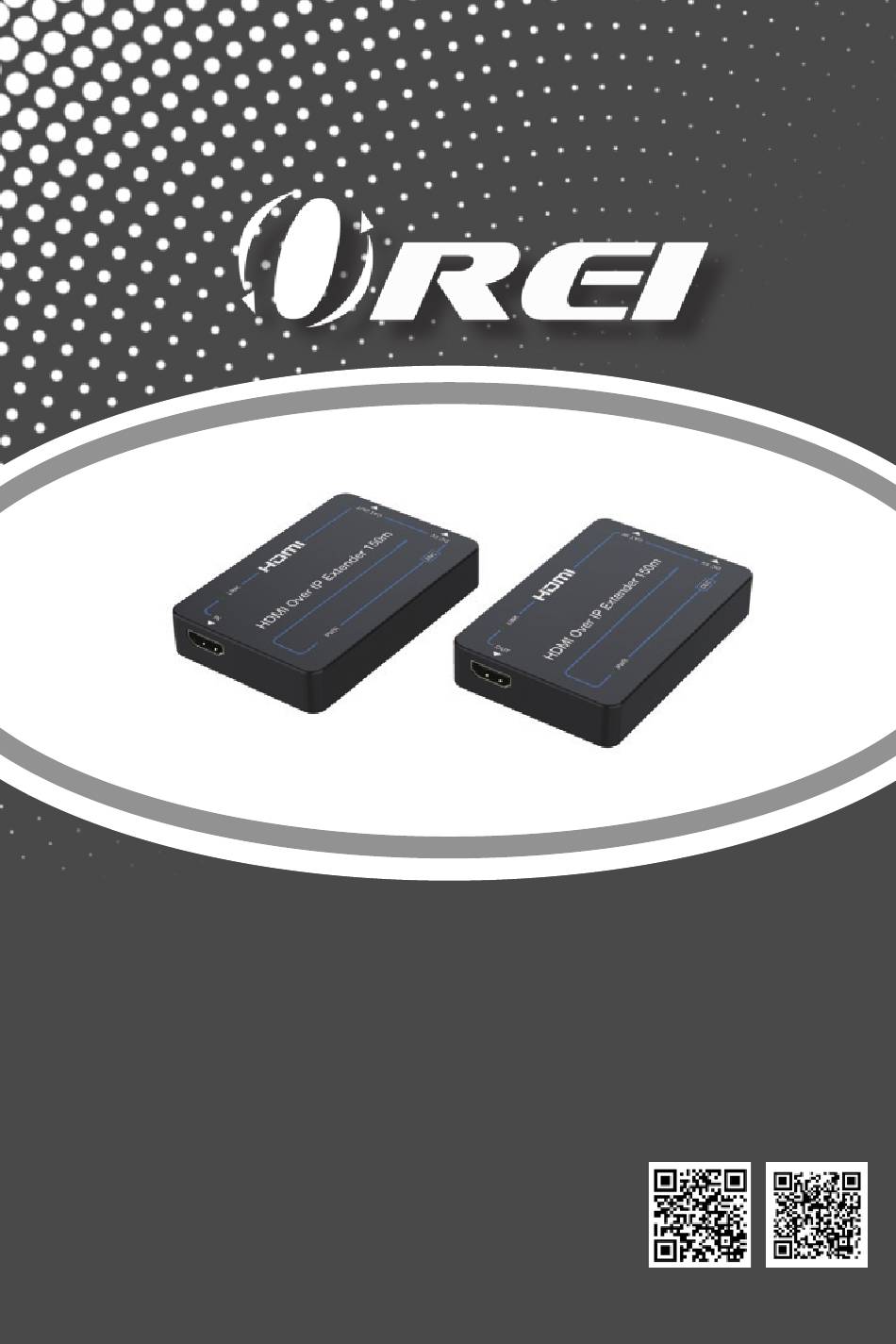

- Page 1 EX-330-K 1080P60 HDMI over IP Follow us on Youtube Extender (150m) and Facebook U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your ques- tions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction This 1080P60 HDMI over IP Extender (150m) is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network Switch, and extends distance up to 150m/492ft between encoder and decoder via a single CAT5e/6 cable. -
Page 5: Features
Features HDMI 1.3 and HDCP 1.4 compliant Support 148.5MHz video bandwidth Video resolution is up to 1920×1080@60Hz Signal transmission distance up to 150m/492ft via a single CAT5e/6 cable Adopt standard H.265 encoding & decoding technology Support 1G standard IP Swtich/router/hub Support one-to-one and one-to-many connection modes Compact design for easy and flexible installation Package Contents... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 148.5MHz Video Resolution Input: Up to 1920x1200@60Hz Output: Up to 1920x1080@60Hz HDMI Audio Formats LPCM 2.0CH, 32KHz/44.1KHz/48KHz Compression H.265 Technology Video Network Bandwidth Transmission Distance 150m/492ft (via a single CAT5e/6 cable) Color Depth Input: 8/10/12-bit Output: 8bit... - Page 7 Specifications Connection Encoder Input: 1×HDMI IN [Type A, 19-pin female] Output: 1×CAT OUT [RJ45 connector] Decoder Input: 1×CAT IN [RJ45 connector] Output: 1×HDMI OUT [Type A, 19-pin female] Mechanical Housing Plastic Enclosure Silkscreen Color Black Dimensions 90mm (W) × 60mm (D) × 16mm (H) Weight Encoder: 51g, Decoder: 52g Operating Temperature...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Encoder Panel Name Function Description HDMI signal input port for connecting the HDMI source device. When the encoder is connected to HDMI signal source, the green LINK LED LINK LED will be on. The CAT OUT port is connected to the CAT IN port on decoder or CAT OUT connected to Switch/router/hub with CAT cable for sending signal to receiver. - Page 9 Operation Controls and Functions Decoder Panel Name Function Description HDMI signal output port for connecting the HDMI display device. When the decoder is connected to HDMI display device, the LINK LED green LINK LED will be on. The CAT IN port is connected to the CAT OUT port on encoder or CAT IN connected to Switch/router/hub with CAT cable for receiving encoder signal.
-
Page 10: Application Example
Application Example page 10... - Page 11 Application Example page 11...
- Page 12 1080P60 HDMI over IP Extender (150m) www.orei.com © 2022...
