- Page 1 18Gbps HDMI over HD- BaseT Extender with Follow us on Youtube and Facebook Bi-directional IR (40M) U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
-
Page 4: Introduction

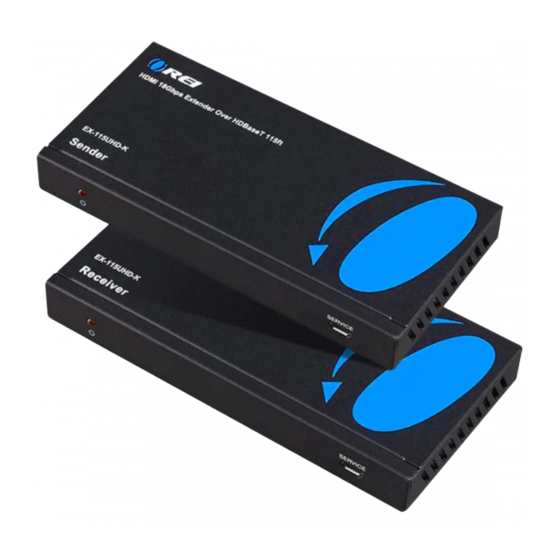

Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 230ft / 70 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. -
Page 5: Features
Features HDMI 2.0b, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant Support 18Gbps video bandwidth The maximum extended transmission distance via a single Cat5e/6 cable: 115ft / 40 meters for 4K2K signal; 230ft / 70 meters for 1080P signal Support one HDMI loop output on the transmitter De-embeded audio to analog stereo output on receiver With bi-directional IR, RS-232 and CEC pass-through HDR, HDR10+, Dolby Vision and HLG function supported... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.4 Video Bandwidth 594MHz/18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) - Page 7 Specifications Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female]...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Extender SERVICE HDMI OUT HDMI IN IR IN IR OUT Name Function Description Power LED Red LED indicates that the transmitter is powered on. SERVICE port Firmware update port. DC 24V DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t... - Page 9 Operation Controls and Functions Name Function Description HDMI OUT HDMI loop output for display. HDMI IN HDMI source input. IR IN IR input port for receiving the signal of IR remote. IR OUT IR output port for control of source device. This IR output signal is from the IR IN port of receiver.
- Page 10 Operation Controls and Functions Name Function Description DC 24V DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.
- Page 11 Operation Controls and Functions Wideband IR (20KHz---60KHz) introduction IR RECEIVER IR BLASTER IR Cable Pin Assignment Control local device (Blu-ray player or DVD player, etc) from remote: The IR Re- ceiver is connected to the receiver IR in port. The CAT output connector on the HDMI Extender is connected via CAT6 cable to an HDMI receiver.
-
Page 12: Application Example
Application Example page 12... - Page 13 Application Example page 13...
- Page 14 Application Example page 14...
- Page 15 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (40M) www.orei.com © 2021...
