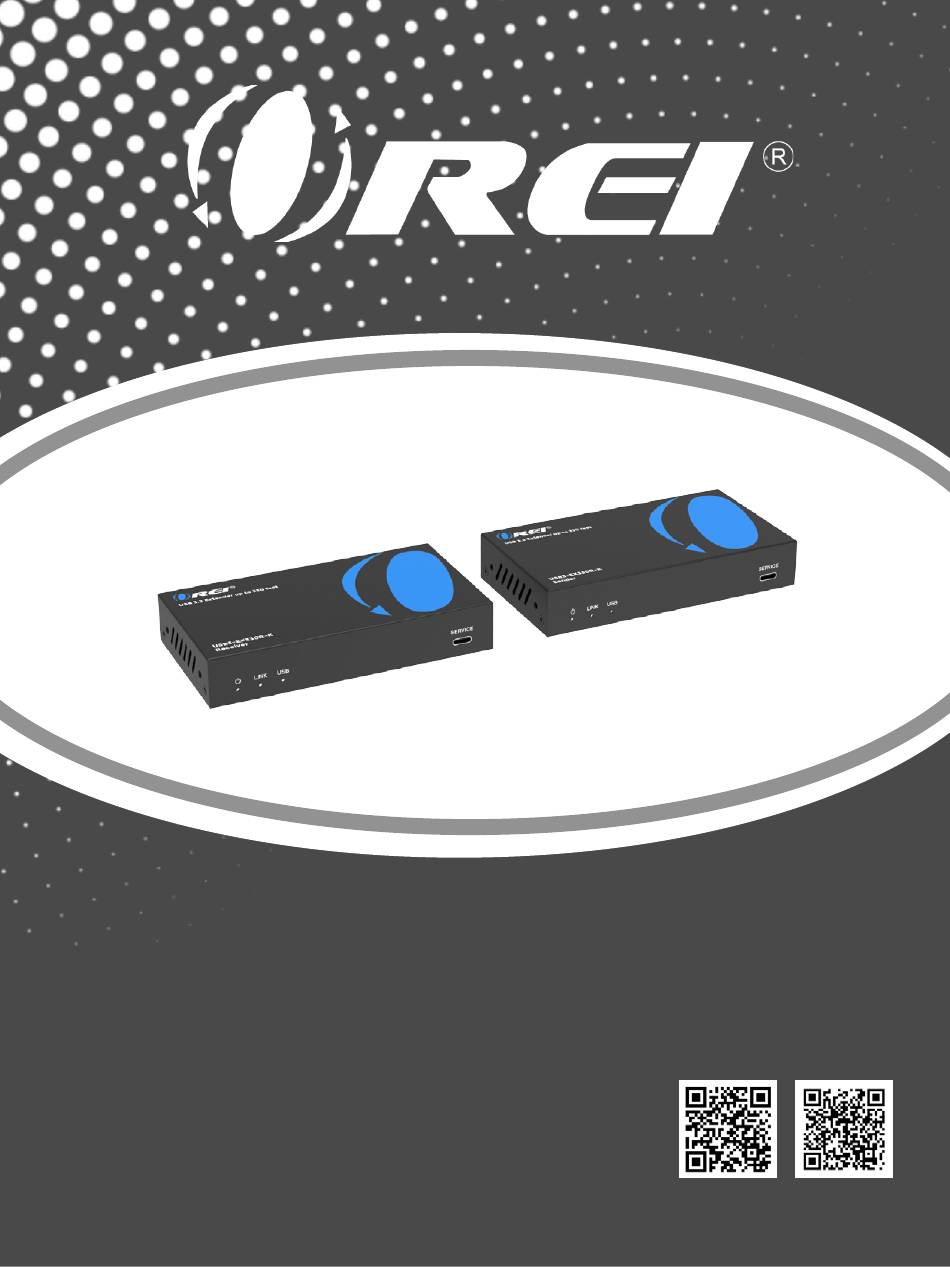

- Page 1 USB 3.2 Extender USB3-EX330R-K up to 330 feet Follow us on Youtube and Facebook U SER M ANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - https://www.orei.com/pages/warranty-registration Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. -
Page 4: Introduction
Introduction The USB3-EX330R-K USB 3.0 Extender is the ultimate solution for remote USB access. Seamlessly extending connections up to 330 feet via CAT6/7 Ethernet cable, this device empowers you to effortlessly access webcams and USB drives from a distance. The device features a compact design with Plug &... -
Page 5: Features
4. 4 USB ports on the Receiver with 2 ports each supporting 1.5A & 1A 5. Power over Cable; only needs a power adapter at one end either the Transmitter or the Receiver 6. Plug & Play setup. No drivers required Package Contents USB3-EX330R-K Transmitter 1pcs USB3-EX330R-K Receiver 1pcs Mounting Ear... -
Page 6: Specifications
Specifications Technical USB Protocol USB 3.2 Gen1 Transmission Rate Up to 5Gbps Transmission Distance 100m/328ft over CAT6a (F/FTP) cable IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact dis- ESD Protection charge) Connections Input: 1 × USB HOST [USB-B, 9pin Female] Transmitter Output: 1 ×... -
Page 7: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel SERVICE LINK DC 24V HDBT-USB3 USB HOST Name Function Description POWER LED The LED will light up when the Transmitter is powered on. Connection signal indicator. LINK LED ▪ On: Transmitter and Receiver are connected and linked. ▪... - Page 8 Operation Controls and Functions Receiver Panel SERVICE LINK 1.5A DC 24V HDBT-USB3 Name Function Description POWER LED The LED will light up when the Receiver is powered on. Connection signal indicator. LINK LED ▪ On: Transmitter and Receiver are connected and linked. ▪...
-
Page 9: Application Example
Application Example Transmitter DC 24V HDBT-USB3 USB HOST CAT6a Receiver 1.5A DC 24V HDBT-USB3 USB Drive Power Supply USB Camera Page 09... -
Page 10: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What kind of USB devices can I connect with this extender? You can connect USB drives, webcams, etc. Basically any USB device that you want to access remotely. 2. Can I access my security cameras through this device? Yes, if you have security cameras in your home or office or factory, you can access them through this device. - Page 11 USB 3.2 Extender up to 330 feet USB3-EX330R-K www.orei.com © 2024...
