REI UHD-EXM500-K User Manual

4k@60hz hdmi over 1g ip extender with ir

Advertisement

Quick Links

®
UHD-EXM500-K
4K@60Hz HDMI Over 1G
Follow us on Youtube
and Facebook
IP Extender with IR
U S E R M A N U A L
www.orei.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the UHD-EXM500-K and is the answer not in the manual?

Questions and answers

Summary of Contents for REI UHD-EXM500-K

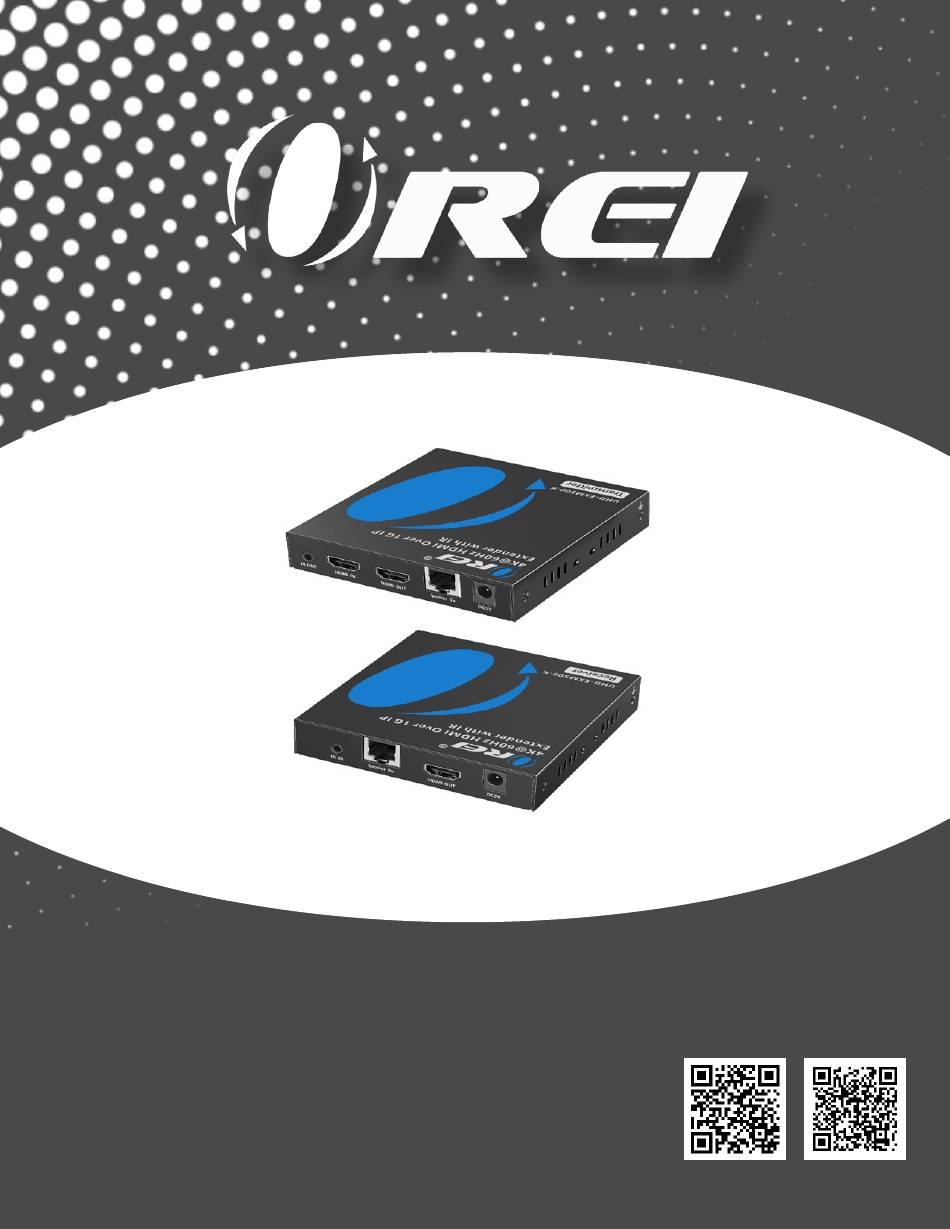

  • Page 1 ® UHD-EXM500-K 4K@60Hz HDMI Over 1G Follow us on Youtube and Facebook IP Extender with IR U S E R M A N U A L www.orei.com...
  • Page 2: Table Of Contents

    Table of Contents Introduction Page 04 Features Page 05 Package Contents Page 06 Specifications Page 07 Operation Controls and Functions Page 10 Application Example Page 12 FAQs & Troubleshooting Page 14 Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
  • Page 3 Registration page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget.
  • Page 4: Introduction

    Introduction The UHD-EXM500-K consists of a Transmitter and Receiver allowing you to extend HDMI audio/video signal to another location up to 500 Feet away using a CAT6/7 cable. The extender features ipcolor STREAM technology for high-definition and low-latency transmission. The device supports video resolutions up to 4K@60Hz.
  • Page 5: Features

    Features Features ipcolor STREAM technology for high-definition audio/vid- eo transmission with low-latency. Video resolutions up to 4K@60Hz. Compatible with Cat5/5e/6 or above network cables. For extending signal up to 120M(500Feet) use CAT6 Round -Shielded cable. Supports one-to-one or one-to-many connections through a net- work switch.
  • Page 6: Package Contents

    Package Contents Transmitter Receiver IR Blaster Cable IR Receiver Cable Mounting Ear Screws 10pc Grounding Screw RS-232 Terminal Block DC5V/1A Power Adapter User Manual Page 06...
  • Page 7: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 1.4/2.2 Video Bandwidth 18 Gbps Video Resolution 4K@24/30/50/60Hz, 2560x1440@60Hz, 2560x1600@60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz Color Space RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 Color Depth 12 Bit Pass Through HDMI Audio Formats PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA,...
  • Page 8 Specifications Connection Transmitter Inputs: 1 × HDMI [19-pin female] Outputs: 1 × HDMI [19-pin female] 1 × CAT port [RJ45] 1 × IR OUT [3.5mm Stereo Mini- jack] Controls: 1 × RS-232 [3-pin phoenix connector] 1 × SERVICE [Micro USB, Up- grade port] Receiver Inputs: 1 ×...
  • Page 9 Specifications Mechanical Housing Iron Silkscreen Color Black Transmitter & Receiver: 106mm (L) × 103mm (W) × Dimensions 20.6mm (H) Weight Transmitter: 254g, Receiver: 242g Power Consumption Transmitter: ≤ 4.5W, Receiver: ≤ 2.5W Input: AC 100-240V 50/60Hz Power Supply Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) Operating Temperature -4~140°F / -20~60°C...
  • Page 10: Operation Controls And Functions

    Operation controls and functions Transmitter Name Function Description Reset To Factory Reset the unit RS-232 RS-232 Control Port Upgrade Micro-USB port for Firmware upgrades IR Out Connect the IR Blaster cable and place it next to the source device HDMI IN Connect a source device such as DVD Player, Streaming Device, etc.
  • Page 11 Operation controls and functions Receiver Name Function Description Reset To Factory Reset the unit RS-232 RS-232 Control Port Upgrade Micro-USB port for Firmware upgrades IR In Connect the IR Receiver cable and place it next to the display CAT IN CAT input to connect a CAT5/6 cable.
  • Page 12: Application Example

    Application Example One-to-one Connection: One-to-many Connection (Through Network Switch): Page 12...
  • Page 13 Application Example One-to-many Connection (Cascade of Network Switches): Page 13...
  • Page 14: Faqs & Troubleshooting

    FAQs & Troubleshooting No Video Output from the Receiver End Try the following: 1. Check if the Power and Link indication LEDs are lighting on both ends 2. Change the HDMI cable going to the display 3. Change the CAT cable 4.
  • Page 15 FAQs & Troubleshooting Can I extend multiple screen with this product? No, this product does not extend to multiple screens. It will duplicate the input sources to multple outputs. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
  • Page 16 FAQs & Troubleshooting How can I purchase additional Transmitter & Receivers? You can check out our website to purchase replacement parts or contact our support team through the ‘Contact Us’ page and they will help you out. I am unable to get the remote to work with IR, how to connect the IR Blaster &...
  • Page 17 ® 4K@60Hz HDMI Over 1G IP Extender with IR UHD-EXM500-K www.orei.com © 2023...
