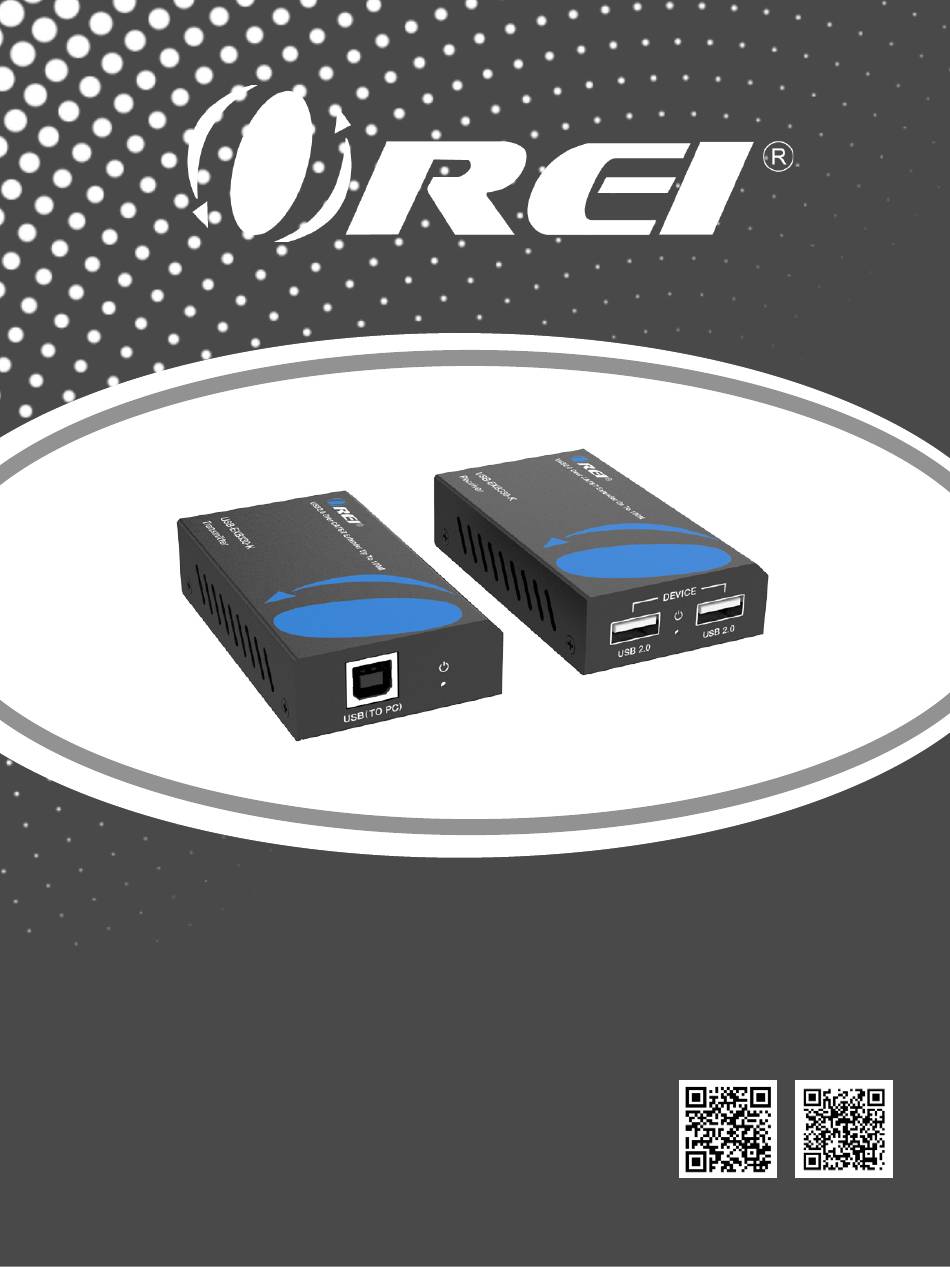

- Page 1 USB-EXB330-K USB2.0 Over CAT6/7 Follow us on Youtube Extender Up To 100M and Facebook U SER M ANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. -
Page 4: Introduction
Introduction The USB-EXB330-K Extender can take a USB signal and extend it up to 330 feet (~100M). The device features 2 USB2.0 extensions to connect devices such as USB Drives, Printers, etc. to control them remotely. Features Power Over Cable technology. This means that only one power adapter is required to power the whole setup. -
Page 5: Features
2 USB 2.0 Outputs to connect 2 devices (e.g.: Printer, USB Drive, etc.) Power Over Cable feature requires power adapter at one end only. Plug and Play installation. No drivers required Compact & robust design Package Contents USB-EXB330-K Transmitter 1pcs USB-EXB330-K Receiver 1pcs USB cable (USB-B male head to USB-A male... -
Page 6: Specifications
Specifications Technical USB Protocol USB 2.0 Transmission Rate Up to 200Mbps Transmission Distance 100M (328ft) IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections Input port: 1 × USB [USB-B, female] Transmitter Output port: 1 × CAT [RJ45, female] Input port: 1 ×... -
Page 7: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel DC 12V Name Function Description USB port: connect to the USB port of a PC through the includ- USB(TO PC) ed cable. POWER LED The LED will light up Green when the transmitter is powered on. Plug DC 12V/1A power supply into the unit and connect the DC 12V adapter to an AC outlet. -
Page 8: Operation Controls And Functions
Operation Controls and Functions Receiver Panel DEVICE USB 2.0 USB 2.0 DC 12V Name Function Description Connect to a device with USB port such as printer or USB drive, USB 2.0 port etc. POWER LED The LED will light up Green when the receiver is powered on. Plug DC 12V/1A power supply into the unit and connect the DC 12V adapter to an AC outlet. -
Page 9: Application Example
Application Example DC 12V Transmitter Cat5e/6 (100M) DEVICE USB 2.0 USB 2.0 DC 12V Receiver U Disk Power Supply Printer Page 09... -
Page 10: Faqs & Troubleshooting
FAQs & Troubleshooting 1. What is the maximum length of cable I can use with this device? The maximum length of cable you can use with this model is 330 feet. 2. Does this only work with CAT6/7? What if I have a CAT 5e cable? Our devices work with a CAT 5e cable as well. - Page 11 USB2.0 Over CAT6/7 Extender Up To 100M USB-EXB330-K www.orei.com © 2023...
