Instruction Manual

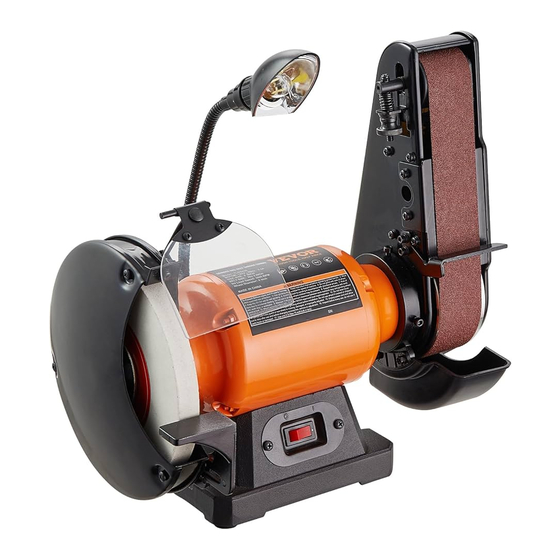

GRINDER AND BELT SANDER COMBO
We continue to be committed to provide you tools with competitive price.
"Save Half ", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benef it from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verif y caref ully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR TLGS825
Summary of Contents for VEVOR TLGS825

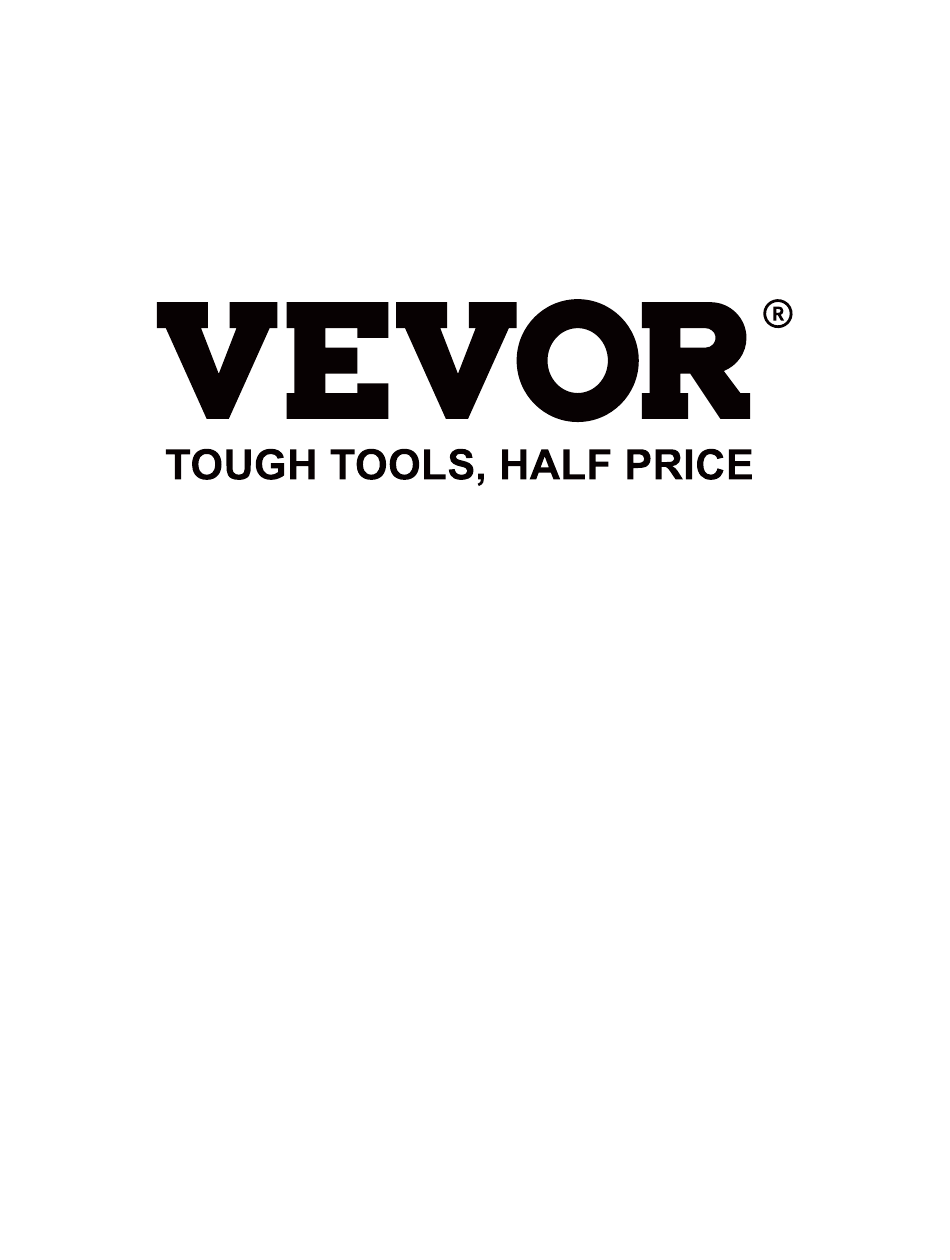

- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support Instruction Manual GRINDER AND BELT SANDER COMBO We continue to be committed to provide you tools with competitive price. "Save Half ", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benef it from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Safety Instructions for Machines ............... 3 Specific Safety Instructions..................4 Features ......................... 5 Physical Features ....................6 Proper Grounding ....................7 Un-Packing ......................8 Mounting ......................... 8 Eye Safety Shield....................8 Tool Rests....................... 9 Belt Tracking ......................9 Dust Port.........................10 Sanding Arm Angle ....................10 Test Run .........................10... -
Page 4: General Safety Instructions For Machines
GENERAL SAFETY INSTRUCTIONS FOR MACHINES Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. ALWAYS read and understand the NEVER leave a tool unattended while it user manual before operating the is in operation. -
Page 5: Specific Safety Instructions
GRINDER AND BELT SANDER COMBO SPECIFIC SAFETY INSTRUCTIONS ALWAYS read and understand the NEVER LEAVE machine user manual before operating the unattended while it is running. grinder. MAKE SURE to do a “ring test” on the MAKE SURE you are wearing safety grinding wheels before... -
Page 6: Features
GRINDER AND BELT SANDER COMBO FEATURES GRINDER AND BELT SANDER COMBO Following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. The machine is a professional tool and like all power tools, proper care and safety procedures should be adhered to. -
Page 7: Physical Features
GRINDER AND BELT SANDER COMBO PHYSICAL FEATURES Sanding Belt Belt Tracking Knob Work Lamp Eye Safety Shield Belt Cover Knob Belt Tension Lever Grinding Wheel Tool Rest Work Stop Base Dust Port ON/OFF Switch... -
Page 8: Proper Grounding
PROPER GROUNDING Grounding provides path least It is strongly recommended not to use resistance for electric current to reduce the extension cords with your machine. Always risk of electric shock. try to position your machine close to the power source so that you do not need to Make sure the cord is plugged into a use extension cords. -
Page 9: Unpacking
UNPACKING The machine is properly packaged and Use bolts (not provided) that exceed the shipped complete in a carton for safe thickness of the base plus the thickness of transportation. When unpacking, carefully the bench top and secure the machine to inspect the carton to ensure that nothing the workbench. -
Page 10: Tool Rests
Adjust the tool rests 1/8” to 1/16” away from the belt and the wheel and tighten the screws. Figure-3 Installing the eye safety shield TOOL REST / WORK STOP Figure-4(1) Installing the tool rests The tool rest provides a surface that supports the tool during operation. -
Page 11: Dust Port
Screws Belt tracking knob Figure-7 Loosening the screws Figure-5 Sanding belt tracking TEST RUN DUST PORT Once you have assembled the machine and verified that grinding wheel is secured Machine features a 1-1/8” dust port located and belt is tensioned and tracking properly, under the rollers. -
Page 12: Grinding Wheel Inspection
GRINDING WHEEL GRINDING WHEEL INSPECTION REPLACEMENT The machine comes with an 8” diameter, To replace the grinding wheel: A60 grit aluminum oxide grinding wheel. The grinding wheel should be inspected Make sure the switch is in the OFF position properly before installation. and the cord is disconnected from the power source. -
Page 13: Sanding Belt Replacement
SANDING BELT REPLACEMENT Take the belt off the rollers and replace with To remove and replace the sanding belt: a new one. Make sure the switch is in the OFF position Move the belt tension lever down to tension and the cord is disconnected from the the belt and reinstall the belt cover. -
Page 14: Exploded View
EXPLODED VIEW... -
Page 15: Parts List
PARTS LIST Specification Specification Philips Screw M5x42 Switch Plate Left Guard Cover Switch I type Hex Nut M16 left Philips Screw M5X8 Wheel Flange Rubber foot 200x20x Wheel(60#) Work rest 15.88 Philips Screw +spring washer M5x10 Work rest plate Left Guard inner Cover Base Left Spark Deflector Cord clip plate... - Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support MADE IN CHINA...
