JEWELRY POLISHER TUMBLER
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Related Manuals for VEVOR KD-68081
Summary of Contents for VEVOR KD-68081
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support JEWELRY POLISHER TUMBLER USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software...
- Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 WARNING! Some dust created by power sanding, sawing, grinding, contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks, cement and other masonry products. •...
-
Page 5: General Safety Rules
5. lid clasp 6. main pole 7. Motor spindle 8. Auxiliary spindle 9. host 10. Indicator 11. timing switch 12. switch/two-way/one-way operation 13. 5 speed optional 14. Steel Ball 450g 15. sealing ring GENERAL SAFETY RULES WARNING: Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. - Page 6 8. from the work area. 9. Make workshop childproof. Use padlocks, master switches and remove starter keys. 10. Do not force the machine. It will do the job better and be safer at the rate for which it is designed. 11.
- Page 7 Capacity ratio of polishing bucket Pour water to 2/5 barrel and put 450g (steel ball or material) with jewelry. Then add 10g polishing solution. Control work description 1. Select a specific time by turning the time control button. 2. Push the button, which is a one-way rotation.
- Page 8 stop, the barrel will automatically rotate into opposite direction. During the stop, cannot push the button to rotate in a single direction. Otherwise the machine will power off and not work. Then it needs to push the button to return to work normally, and then push the button to rotate in single/one-way direction.
- Page 9 Incorrect indication of cap imbalance resulting in water leakage Incorrect bucket placement indication Correct bucket placement instruction Polishing steps Material: abrasive plus coarse grinding powder → fine grinding powder → polishing powder → final polishing powder step 1 Open 1. Wash the abrasive with water, put 1-1.5 pounds of abrasive in the bucket (the ratio of abrasive to product is 3:1).
- Page 10 4. Tighten the lid of the bucket to prevent water leakage. Step 2 Continue grinding... During the second stage, the product will continue to be polished, and it is very important to check the abrasive during this period. 1. Pour the contents of the bucket into the fine filter screen, and thoroughly clean the product and the bucket.
- Page 11 Description Name Jewelry Polisher Tumbler Model KD-68081 Voltage/Frequency：110VAC/60Hz，Power：45W，Max capacity of Parameter load：3KG，Time control：10–60min 4 Package Size 290x210x270mm G.W. 4.3KG items Description Name Jewelry Polisher Tumbler Model KD-68082 Voltage/Frequency：230VAC/50Hz，Power：45W，Max capacity of Parameter load：3KG，Time control：10–60min 4 Package Size 290x210x270mm G.W. 4.3KG...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the KD-68081 and is the answer not in the manual?
Questions and answers
Vector rock tumbler

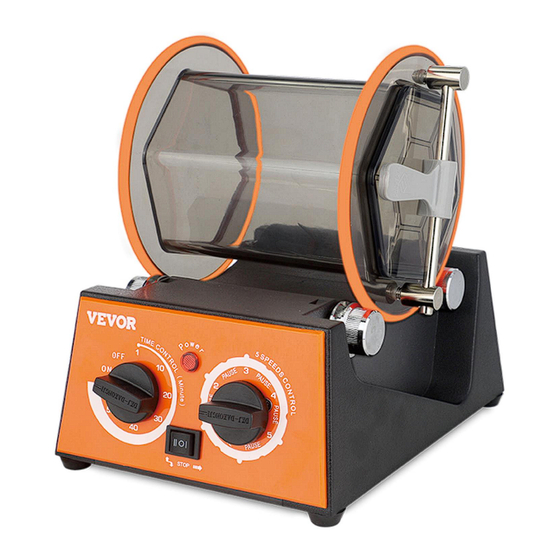

The VEVOR KD-68081 is a jewelry polisher tumbler, also referred to as a rotary tumbler. It is designed to polish jewelry and other small metal items using abrasive materials, steel balls, and polishing solutions. The machine has a plastic polishing bucket, supports both one-way and two-way rotation, and includes a timing function with five speed options. It operates by rotating the barrel to polish the contents, and bidirectional rotation is recommended for better results. Proper setup, maintenance, and safety precautions are necessary for safe and effective use.
