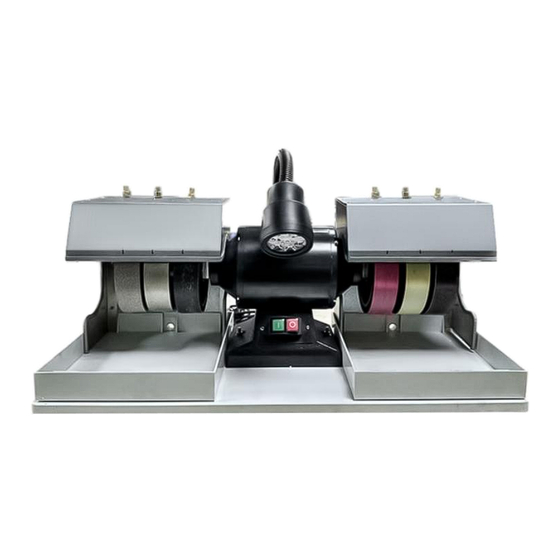

Technical Support and E-Warranty Certificate www.vevor.com/support L A P ID A R Y R O C K G R IN D E R P O L IS H E R M O D E L :V V -JH -6P We continue to be committed to provide you tools with competitive price.
Page 3
C u sto m erS ervice@ vevo r.co m This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received.
Page 4
Warning-To reduce the risk of injury, user must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.
Page 5
INTENDED FOR INDOOR USE ONLY. AVOID DANGEROUS ENVIRONMENTS. Do not use this machine near gasoline or other flammable liquids. MAKE SURE MACHINE IS SECURELY MOUNTED. Abide by the proper mounting instructions before connecting the tool into a power supply. USE ONLY RECOMMENDED ACCESSORIES. The use of improper accessories on this machine may cause risk of injury.
Page 6
NEVER DISCONNECT MOTOR,LAMP OR PUMP WITH WET HANDS.Though the motor is sealed, you must make sure to keep all electrical connections dry. Avoid touching the pump when connected to the power. ALWAYS WEAR PROPER EYE PROTECTION.Enclosed are safety goggles to protect you from any debris that may fly out while grinding.
Page 7
contain uranium,mercury,lead, arsenic, etc. Know the material you are grinding. DO NOT FORCE THE TOOL or attachment to do a job it is not designed to do. DIRECTION OF FEED. Be aware of the wheel rotation direction before use. ALWAYS EASE THE WORKPIECE AGAINST THE RESIN WHEELS.A harsh impact can break the wheel.
Page 8
S PA R E PA R T S L IS T MOTOR BASEBOARD LED LAMP DRIP PAN HOOD HAND REST PAN SPLASH GUARD DRIP PAN TUBING WATER PUMP FLANGE WRENCH 280# RESIN WHEEL 600# RESIN WHEEL 1200# RESIN WHEEL 3000# RESIN WHEEL 80# GRINDING WHEEL 220# GRINDING WHEEL TRANSPARENT STORAGE BOX...
Page 9
3. Please check the parts list to ensure that all parts appear on the machine and in the accessory box. If you find any missing or damaged parts, please call (+626) 275-4507 (for the United States) directly or send an email to service@vevor.com. - 7 -...
Page 10
M A C H IN E U S A G E The machine comes with two electroplated diamond wheels, four resin diamond wheels, one full face diamond flat lap and one canvas polishing pad. The direct drive motor on eliminates belts and other exterior motor parts to maintain or replace.
Page 11
A S S E M B LY IN S T R U C T IO N S 1. Assemble and determine a suitable and well-lit place to place your studio. This machine weighs about 60 pounds, needs a solid table and surface, and has a transparent space of 3 feet wide and 2 feet deep.
Page 12
pipe upwards to connect and remove the side panel. These side panels help control water splash, but without installing them, they provide easier access to diamond rings and canvas mats. F IN A L A S S E M B LY 6.
Page 13
a time when you work on that wheel. Our unique water system allows you to drip water on each wheel separately. You can adjust the water-saving knob according to your preference. When using, ensure that there is enough water to keep the wheel from drying.
Page 17
Item name:VV-JH-6P Model Number: Lapidary diamond polishing wheel shape:1A1 parallel wheel Bond:Resin bond Abrasive:Diamond Body:Rubber plastic Grit:60#/140#/280#/600#/1200#/3000#/5000#/8000#/14000#/50000# Usage: It is mainly used for special-shaped processing of hard and brittle materials such as gems, crystals, glass, artificial crystals, ceramics, etc., and carries out grinding and polishing from coarse-grained to fine-grained grinding wheels.
Page 18
In order to avoid vibrations, customers can install the product on a marble table or an iron table for use. Wooden table is not recommended. items Description Name Lapidary Rock Grinder Polisher Model VV-JH-6P Rating: 120VAC, 60Hz, 180W, 1620RPM, Wheel size: Parameter 6" Package Size 735x430x360mm G.W.
Page 20
