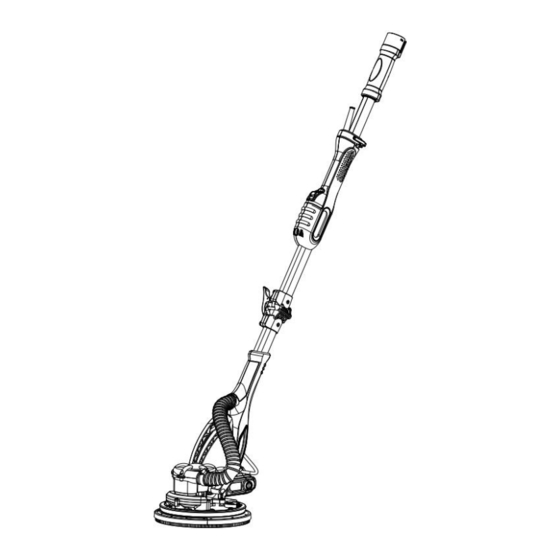

DRYWALL SANDER
OPERATING MANUAL
Model: ZL225-JCL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR ZL225-JCL
Summary of Contents for VEVOR ZL225-JCL
- Page 1 DRYWALL SANDER OPERATING MANUAL Model: ZL225-JCL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Product Description
We do not accept any liability for accidents or damage arising from ignoring this manual and the safety instructions. 2. SPECIEICATIONS Model No. ZL225-JCL Power 900W No Load Speed 800-1800 /min Grinding pad diameter... -
Page 4: General Safety Rules
Read through these operating instructions carefully before using the appliance. Become familiar with the functions and method of operation. To ensure proper operation,always maintain the appliance according to the instructions. The operating instructions and associated documents should always be kept close to the appliance. When using power tools, you must observe the following basic safety precautions in order to ensure protection from electric shocks, injury and fire. - Page 5 1) Work area safety. a) Keep work area clean and well lit . Cluttered or dark areas invite accidents . b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust . Power tools create sparks which may ignite the dust or fumes .
- Page 6 inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 7 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
- Page 8 --The accessories' allowed speed must be at least the same as the maximum speed of the machine. Or else, they may be broken or cracked when their running speed is go over the machine's allowed speed. -- Do not use damaged accessories. Before use, always check whether the accessories are nicked or cracked.
-
Page 9: Electronic Control
machine [1-1]. -- Take the dust hose to connect with the extension rod [1-2]. 6.2 Electronic Control This machine has the characteristics as below: -- Adjustable Speed[1-3]; Adjust the speed from 800-1700rpm by turning the speed wheel [1-4]. In this way, user can choose different speed for different sanding surface. - 8 -... - Page 10 6.3 Replace Sanding Pad -- Insert the hex wrench (size 5) into the hexagonal screw bolt on the sanding pad. -- Hold the sanding pad firmly, and then turn the wrench to dismount the pad. -- Install new sanding pad by tightening the bolt Attention: Only install the specified sanding pad on the machine.
- Page 11 6.5 Fold function Adjust Screw with screwdriver first, then the lock wrench directly buckle in place. 6.6 Suction power adjustment Clockwise to reduce suction power,counter-clockwise to increase suction power. - 10 -...
- Page 12 6.7 Grinding Adjacent Edges Detachable brush segment can reach up to the adjacent edge with ease. 6.8 To sand the ceil -- The grinding machine head lifted, tensile spring hook head, so that the grinding easier. - 11 -...
- Page 13 6.9 To change the dust hose. -- Loosen the hoop by the screwdriver,take out the dust hose. - 12 -...
- Page 14 -- Counterclockwise rotation of the dust hose. 6.10 Disassemble the extension rod When disassemble the extension rod, pls must press the limited knob, then take out the extension rod. - 13 -...
-
Page 15: Operate The Machine
7. Operate the Machine -- Do not control the machine's head. --Hold the machine with both hands. -- Before operating the machine, make sure every fastening handle is closed. --Connect the machine to the main power supply. -- Before switching on the machine, keep the sanding head slightly away from the work surface. - Page 16 Carbon brushes -- If excessive sparking occurs you must have the carbon brushes checked by a qualified electrician. Attention!Only a qualified electrician is allowed to change the brushes. 9. CORRECTIVE ACTION IN CASE OF FAILURE (1) The operating switch is switched on, but the motor is not working. -- Wires in the mains plug or in the socket are loose.
- Page 17 For your own safety, never remove parts or accessories of the electric tool during operation. In case of fault or damage have the electric tool repaired only by a specialist workshop or by the manufacturer. 10. LABELS ON YOUR TOOL (if any) Volts Hertz Alternating current...
- Page 18 - 17 -...
- Page 19 - 18 -...
- Page 20 ZL225- JCL Exploded view List Part name Part name Self-adhesive sandpaper Big cap screws M6X14 Allen screws LED switch φ6 flat pad Light strip power Grinding disc Protective cover Output shaft LED strip light 3x3x8 flat keys LED lampshade Oil seal Compression spring Screw M4*20 Connector under the...
- Page 21 Downwind shield Speed control knob Gale blades potentiometer M8 nut Small square switch Upper wind shield Switch button holder Flared mouth damping Switch button Slotted self-tapping Switch button latches ST4*14 Activity set Eccentric wrench Small bevel teeth Special flat pad Wool pads Cable sheath Φ26 paper pad...
- Page 22 Long strip brush S5 Allen wrench Slotted self-tapping Φ35 connector ST4*10 4 large flat pad Lower sub-handle Suction regulating wheels Dust collection tube Dust collection pipe Short strip brush fittings Lateral edges Stretch spring - 21 -...
- Page 24 Support and E-Warranty Certificate www.vevor.com/support Made In China...
