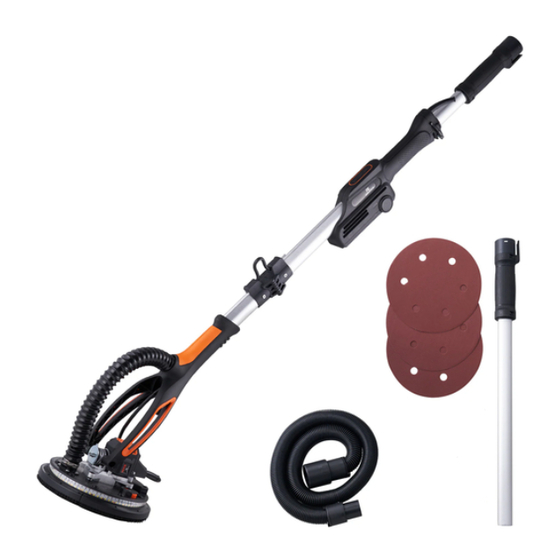

DRYWALL SANDER
OPERATING MANUAL
Model: WS225-KCL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS225-KCL and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR WS225-KCL

Summary of Contents for VEVOR WS225-KCL

  • Page 1 DRYWALL SANDER OPERATING MANUAL Model: WS225-KCL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...

  • Page 3: Product Description

    We do not accept any liability for accidents or damage arising from ignoring this manual and the safety instructions. 2. SPECIEICATIONS Model No. WS225-KCL Power 850W No Load Speed 1000-2300rpm Grinding pad diameter...

  • Page 4: General Safety Rules

    Read through these operating instructions carefully before using the appliance. Become familiar with the functions and method of operation. To ensure proper operation,always maintain the appliance according to the instructions. The operating instructions and associated documents should always be kept close to the appliance. When using power tools, you must observe the following basic safety precautions in order to ensure protection from electric shocks, injury and fire.

  • Page 5: Electrical Safety

    1) Work area safety. a) Keep work area clean and well lit . Cluttered or dark areas invite accidents . b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust . Power tools create sparks which may ignite the dust or fumes .
  • Page 6 inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
  • Page 7 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

  • Page 8: Before Initial Operation

    --The accessories' allowed speed must be at least the same as the maximum speed of the machine. Or else, they may be broken or cracked when their running speed is go over the machine's allowed speed. -- Do not use damaged accessories. Before use, always check whether the accessories are nicked or cracked.

  • Page 9: How To Operate

    place. 6.2 How to Operate -- Loosen the lock spanner, take the extension rod to connect with machine [ 1-3 ]. -- Take the dust hose to connect with the extension rod [ 1-4 ].

  • Page 10: Electronic Control

    6.3 Electronic Control This machine has the characteristics as below: -- Lock-on switch [ 1-5 ]; --Adjustable Speed [1-6] Adjust the speed from 1000-2300 rpm by turning the speed wheel [1-6]. In this way, user can choose different speed for different sanding surface. 6.4 Replace Sanding Pad [1-7] -- Insert the hex wrench (size 5) into the hexagonal screw bolt on the sanding pad.
  • Page 11 Attention: Only install the specified sanding pad on the machine. 6.5 Stick the Sanding Paper to the Pad [1-8] Please ensure the holes on the sanding paper to fit the holes on the pad accurately. 6.6 Suction power adjustment [1-9] Clockwise to reduce suction power, counter-clockwise to increase suction power.
  • Page 12 6.7 Grinding Adjacent Edges [1-10] Detachable brush segment can reach up to the adjacent edge with ease. 6.8 To sand the ceil [1-11] The grinding machine head lifted, tensile spring hook head, so that the grinding easier -11-...
  • Page 13 6.9 To change the dust hose. -- Loosen the hoop by the screwdriver,take out the dust hose [1-12]. -- Counterclockwise rotation of the dust hose [1-13] -12-...

  • Page 14: Operate The Machine

    6.10 Disassemble the extension rod [1-14] When disassemble the extension rod, pls must press the limited knob, then take out the extension rod. 7. Operate the Machine -- Do not control the machine's head. --Hold the machine with both hands. -- Before operating the machine, make sure every fastening handle is closed.

  • Page 15: Care And Maintenance

    -- Start the machine for necessary sanding work. Operate the machine with short length in narrow and awkward area. Run the machine with medium length for higher walls. Use the machine with longest length for ceilings. -- Do not over-press machine so that to avoid overloading! Press with proper pressure for better grinding effects.
  • Page 16 -- The switch is faulty. Have the switch replaced. (2) The operating switch is switched on, but unusual noises can be heard, the motor is not working or only very slowly. -- Switch contact has failed. Have the switch replaced. -- Component jammed.
  • Page 17 To reduce the risk of injury, Class ll tool user must read instruction manual Wear Eye Protection Wear Ear Protection For your personal safety, READ and UNDERSTAND before using. Save This Instruction For Future Reference Always Wear Ear Protection With This Tool Always Wear Eye Protection With This Tool Always Wear a breathing Mask With This Tool This device complies with Part 15 of the FCC Rules.
  • Page 18 -17-...
  • Page 19 WS225-KCL Exploded View List Part name specs Part name specs Self- adhesive sandpaper Left front handle decorative cover Allen screws M6X14 Stretch spring φ6 Flat pads Left main handle Grinding disc Special flat pad Oil seal Eccentric wrench threaded pin...
  • Page 20 Support and E-Warranty Certificate www.vevor.com/support Made In China...
