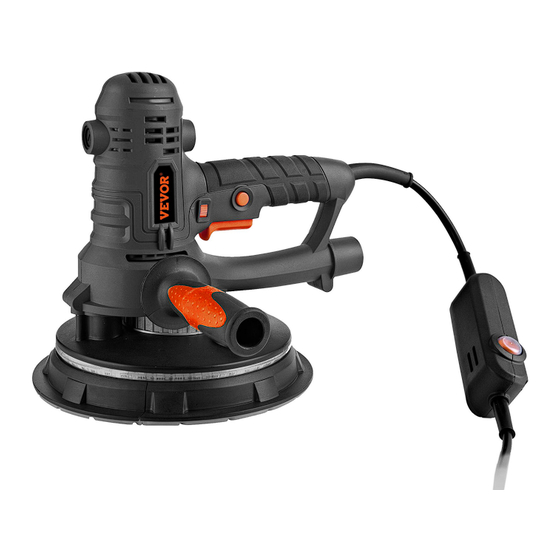

DRYWALL SANDER
OPERATING MANUAL
Model: ZS180-DL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR ZS180-DL
Summary of Contents for VEVOR ZS180-DL
- Page 1 DRYWALL SANDER OPERATING MANUAL Model: ZS180-DL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Product Description
This operating manual must accompany the equipment if it is transferred to somebody else. We do not accept any liability for accidents or damage arising from ignoring this manual and the safety instructions. 2. SPECIEICATIONS ZS180-DL Model No. 800W Power No Load Speed... -
Page 4: General Safety Rules
Read through these operating instructions carefully before using the appliance. Become familiar with the functions and method of operation. To ensure proper operation,always maintain the appliance according to the instructions. The operating instructions and associated documents should always be kept close to the appliance. When using power tools, you must observe the following basic safety precautions in order to ensure protection from electric shocks, injury and fire. - Page 5 1) Work area safety. a) Keep work area clean and well lit . Cluttered or dark areas invite accidents . b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust . Power tools create sparks which may ignite the dust or fumes .
- Page 6 inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 7 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
- Page 8 --The accessories' allowed speed must be at least the same as the maximum speed of the machine. Or else, they may be broken or cracked when their running speed is go over the machine's allowed speed. -- Do not use damaged accessories. Before use, always check whether the accessories are nicked or cracked.
-
Page 9: Electronic Control
-- Tighten the side handle [1-3] by turning it ; 6.2 Electronic Control This machine has the characteristics as below：-- Lock-on switch [1-4]； - 8 -... - Page 10 -- Adjustable Speed [1-5] Adjust the speed from 1200-2300rpm by turning the speed wheel [1-5]. In this way, user can choose different speed for different sanding surface. 6.3 Replace Sanding Pad [1-6] -- Insert the hex wrench (size 5) into the hexagonal screw bolt on the sanding pad -- Hold the sanding pad firmly, and then turn the wrench to dismount the pad.
- Page 11 6.4 Stick the Sanding Paper to the Pad [1-7] Please ensure the holes on the sanding paper to fit the holes on the pad accurately. 6.5 Two Options For Extracting Dust [1-8] There are internal extraction and external extraction for dust particles. The 8-hole internal extraction system collects fine dust particles, enabling to adhere to wall and ceiling, obtaining perfect effect of extracting dust.
-
Page 12: Operate The Machine
6.6 Connect to Dust Bag Dust bag has already connected to the hose. Please ensure the dust bag to be cleaned in due time. 6.7 LED [ 1- 9 ] LED light, 7W can work in a dark environment. 6.8 Suction power adjustment [ 1-10 ] Detachable brush segment can reach up to the adjacent edge with ease. -
Page 13: Care And Maintenance
-- Hold the machine with both hands. -- Before operating the machine, make sure every fastening handle is closed. -- Connect the machine to the main power supply. -- Before switching on the machine, keep the sanding head slightly away from the work surface. - Page 14 -- If excessive sparking occurs you must have the carbon brushes checked by a qualified electrician. Attention!Only a qualified electrician is allowed to change the brushes. 9. CORRECTIVE ACTION IN CASE OF FAILURE (1) The operating switch is switched on, but the motor is not working. -- Wires in the mains plug or in the socket are loose.
- Page 15 For your own safety, never remove parts or accessories of the electric tool during operation. In case of fault or damage have the electric tool repaired only by a specialist workshop or by the manufacturer. 10. LABELS ON YOUR TOOL (if any) Volts Hertz Alternating current...
- Page 16 Support and E-Warranty Certificate www.vevor.com/support Made In China...
Need help?
Do you have a question about the ZS180-DL and is the answer not in the manual?
Questions and answers

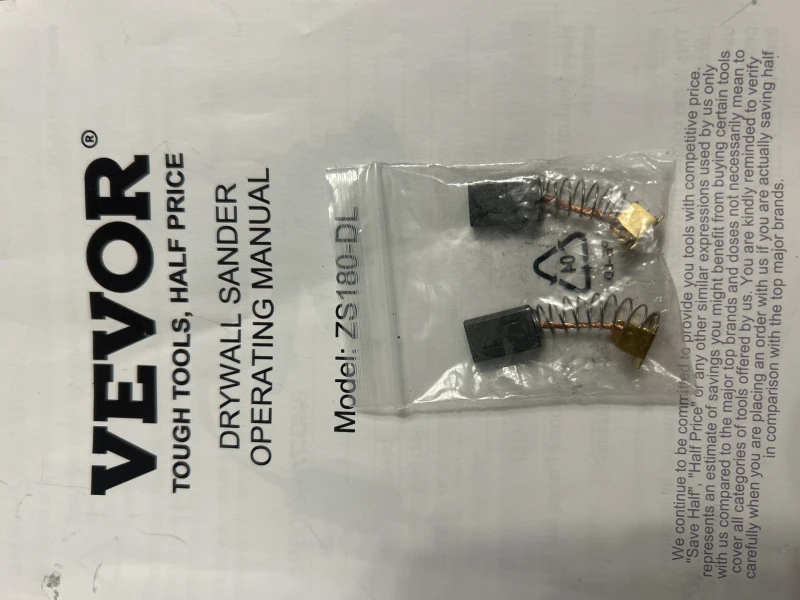

What are these for? And where do I install them? Thank you in advance.
The VEVOR ZS180-DL is designed for sanding drywalls, ceilings, and inner and outer wall surfaces to remove floor residues, paint coatings, adhesives, and loose plaster. It should not be used on objects containing asbestos. It is a portable tool and does not require installation in a fixed location.
This answer is automatically generated
