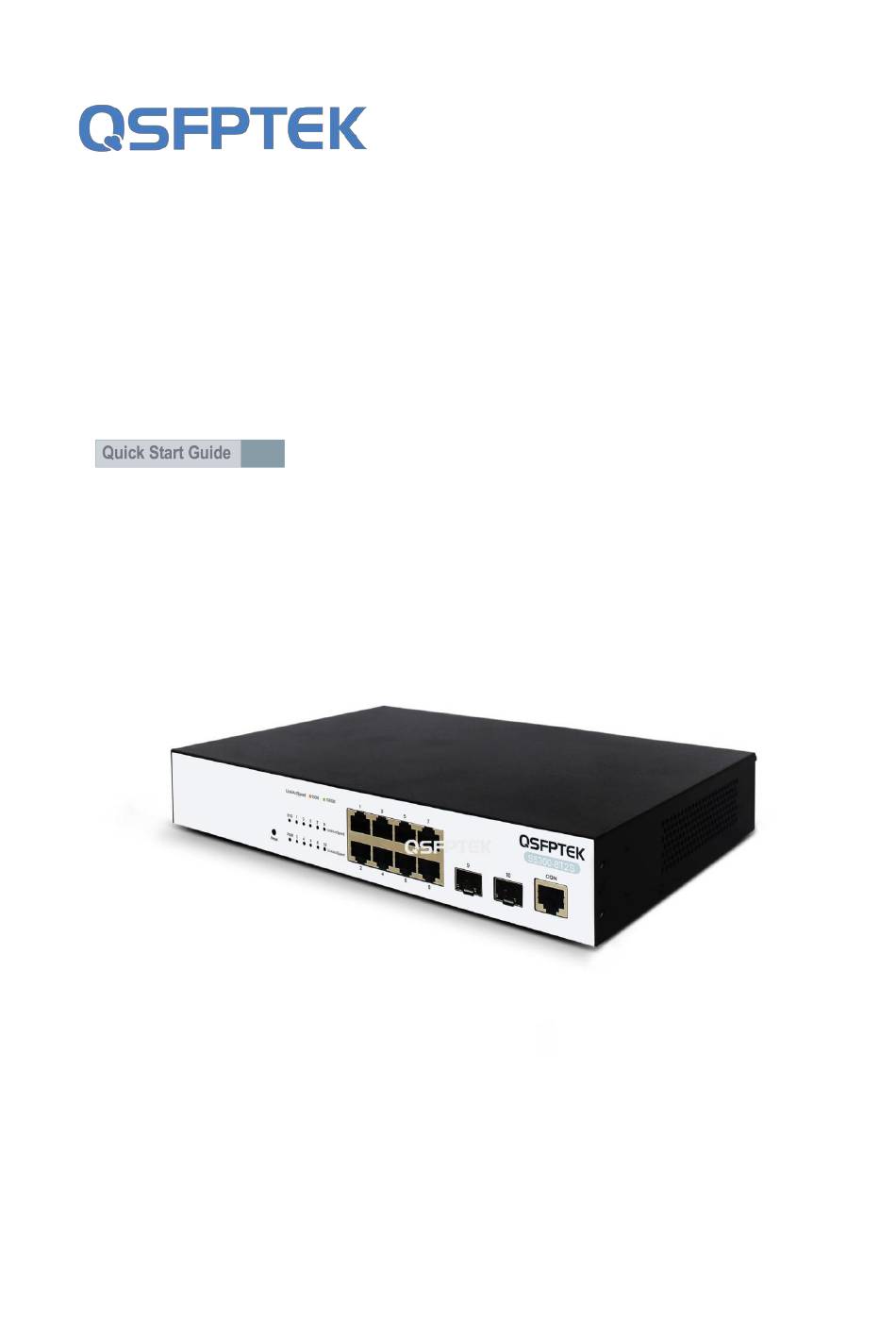

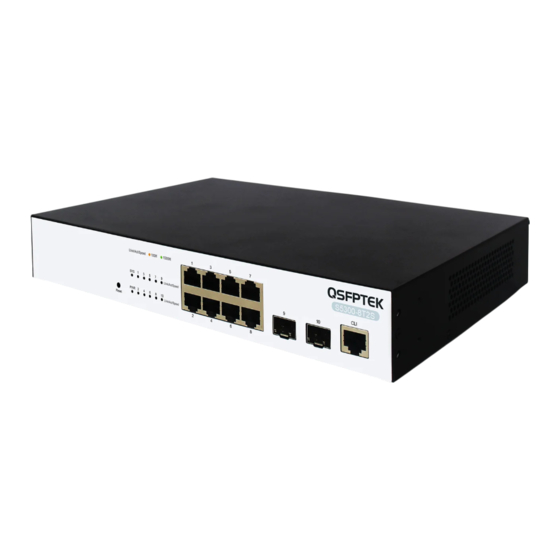

- Page 1 S5300-8T2S Quick Start Guide 8-Port Fanless Gigabit Ethernet L2+ Access Switch 8x 10/100/1000BASE-T RJ45 Ports with 2x 100/1000M SFP Uplinks V1.0 www.qsfptek.com v1.0 1 / 10...
- Page 2 With a fanless design, this layer 2+ switch ensures silent operation and delivers a low-power and noiseless solution for power-saving and noise-sensitive environment deployment. We appreciate your decision to select S5300-8T2S. This manual is intended to help you become acquainted with the switch design a nd provide instructions for implementing the switches into your network.
-
Page 3: Hardware Overview
PWR SYS LED Started the system indicator flickers Orange 10/100M transmission RJ45 Link/Act LED Green 1000M transmission No signal transmission Transmission at 1000MMbps Green SFP port Link/Act LED No signal transmission www.qsfptek.com v1.0 3 / 10... -
Page 4: Installation Requirements
Put the machine box at the place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed because the opened machine box will reverse the cool air flow. www.qsfptek.com v1.0 4 / 10... - Page 5 Mounting the Switch Connecting the Power 1. Plug the AC power cord to the switch power port on the back rear. 2. Connect the other end of the power cord to a AC power source equipment. www.qsfptek.com v1.0 5 / 10...
- Page 6 1. Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. 2. Connect the other end of the Ethernet cable to the switch RJ45 port. Connecting the SFP Port 1. Insert the SFP module into the SFP port. www.qsfptek.com v1.0 6 / 10...
-
Page 7: Connecting The Management Ports
Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. Step 2: Set the IP address of the computer to 192.168.0.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. www.qsfptek.com v1.0 7 / 10... - Page 8 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control www.qsfptek.com v1.0 8 / 10...
-
Page 9: Troubleshooting
If the console port does not work after the system is started up, check whether the console port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. www.qsfptek.com v1.0... -
Page 10: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. And you are eligible to apply for a return or exchange of your items within 14 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
