mTS1000 Series Tripod Turnstile
User Manual

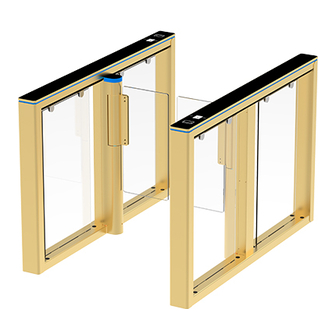

Comet Series Speed Gate
Applicable Model(s): Comet-S1000, Comet-S1200
Date: February 2024
Doc Version: 1.1
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
User Manual

Advertisement

Table of Contents
loading

Related Manuals for ZKTeco Comet Series

Summary of Contents for ZKTeco Comet Series

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 2 Copyright © 2024 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 Comet Series Speed Gate User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 5 The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 6: Table Of Contents

    .......................... 48 RROR ODE FOR URNSTILE MAINTENANCE ..........................49 ..........................49 HASSIS AINTENANCE ..........................49 OVEMENT AINTENANCE ........................49 OWER UPPLY AINTENANCE TROUBLESHOOTING.......................... 50 PACKING LIST ............................ 51 P a g e Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 7 08/09/2023 Yang Kaijin Original Document The appearance of the device, wiring diagram and function menu have V1.1 02/23/2024 Yang Kaijin been changed. Voice playback have been added. P a g e Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 8: Overview

    User Manual Overview Speed gate Comet series is high-end pedestrian passage gate device developed, produced and sold by ZKTeco, boasting a durable aluminum shell treated for anti-corrosion. Its motor, powered by a precision-type planetary reducer BLDC (Brushless DC) motor. Equipped with high-quality infrared sensors, it delivers accurate detection, and strong anti-interference, and adapts to various environments with multiple logic judgments.

  • Page 9: Appearance And System Components

    This feature is fully customizable to meet our customer's unique preferences. Appearance and System Components 1.2.1 Appearance The appearance and dimensions of the Comet series are shown in the figure below: P a g e Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 10: System Components

    Comet Series Speed Gate User Manual 1.2.2 System Components The system components of the Comet series are shown below: 2. Card Reading 1. Traffic Indicator 4. 7-inch Touchscreens★ 3. Verification Units★ 6. Master Turnstile Controller Board 5. Infrared Sensor 8. Infrared Expansion★...

  • Page 11: Mechanical System

    Alarm: The alarm gives the voice and light alarm if the system detects any unauthorized entry to the passage, false direction entry, anti-tailgate and other violations. P a g e | 11 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 12: Working Principle

    Only after a card/fingerprint★/QR code/Palm ★/Face★ is successfully verified can the pedestrian process through the passage. Note: Make sure the ground wire of the system is reliably connected to avoid personal injuries or other accidents. P a g e | 12 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 13: System Composition

    The single-passage management system consists of two single-core speed gates. The multi-passage management system consists of two single-core speed gates and multiple dual-core speed gates. The single-lane management system:  The multi-lane management system:  P a g e | 13 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 14: Technical Specifications

    Working Environment Indoor Drive Unit Brushless motor Barrier Movement Swing Lane Width 660mm (Option: 900mm) MCBF 6 Millions Dimension (mm) (L*W*H) 1500*115*998.4 Net Weight 50kg*2 (±5kg) P a g e | 14 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 15 Comet Series Speed Gate User Manual Gross Weight 64kg*2 (±5kg) Noise ＜60dB Certifications CE and FCC Green: Lane available Traffic Indicator Red: Lane unavailable P a g e | 15 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 16: Function Introduction

    Recommended fingers: It is recommended to use the index, middle, or ring finger for registration and avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint reader. P a g e | 16 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 17: Card Verification

    Access Controller. When a user presses their card on the card reading area, the device enters card authentication mode. P a g e | 17 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 18: Qr Code Verification

    Access Controller. When the user places his/her palm 20 to 50cm above the palm scanner, the device enters the palm verification mode. P a g e | 18 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 19: Facial Verification

    Please try to keep your face centered on the screen during authentication. When registering your face, ensure that you face toward the camera and remain still. P a g e | 19 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 20 Recommended Standing Posture and Facial Expression: Note: Please keep your facial expression and standing posture natural while enrollment or verification. Recommended Distance and Angle for Facial Recognition: P a g e | 20 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 21 Comet Series Speed Gate User Manual P a g e | 21 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 22: Control System Introduction

    Comet Series Speed Gate User Manual Control System Introduction Access Control Board★ Terminal Description Reader Reader Button Reader Reader Button RS485 Auxiliary Input P a g e | 22 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 23 Comet Series Speed Gate User Manual Auxiliary Input Power In Lock Lock Lock Auxiliary Output Auxiliary Output 485 Connections Switch Ethernet P a g e | 23 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 24: Master Motor Driving Controller Board

    ADD: Navigate to the upper menu item and increase the value. DEC: Navigate to the lower menu item and decrease the value. Terminal Description Motor Open Input and Firefighting Interface Reserved RS485 Power in P a g e | 24 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 25 IR sensor receiving port IR sensor receiving port IR sensor receiving port IR sensor receiving port IR sensor receiving port IR sensor receiving port IR sensor receiving port P a g e | 25 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 26: Slave Motor Driving Controller Board

    User Manual IR sensor receiving port Clutch Clutch 24V DC power supply Motor line Slave Motor Driving Controller Board Terminal Description Motor line Motor Indicator light P a g e | 26 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 27 Infrared sensor transmitting port Infrared sensor transmitting port Infrared sensor transmitting port Infrared sensor transmitting port Infrared sensor transmitting port Infrared sensor transmitting port Infrared sensor transmitting port P a g e | 27 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 28: Light Curtain Control Board

    Comet Series Speed Gate User Manual Light Curtain Control Board Terminal Description Reserved Reserved Reserved Reserved RS485 Infrared sensor transmitting port P a g e | 28 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 29: Light Control Board

    Comet Series Speed Gate User Manual Light Control Board Terminal Description RS485 Indicator light Indicator light 5V DC power supply P a g e | 29 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 30: Wiring Diagram

    Comet Series Speed Gate User Manual Wiring Diagram P a g e | 30 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 31: Menu Of Speed Gate

    Opening Mode Setting (02EXXX) (02E001) Two-way controlled, both need verification (Default).  (02E002) In need verification, out free.  (02E003) In free, out need verification.  P a g e | 31 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 32 (02E005) In need verification, out prohibited.  (02E006) In prohibited, out need verification.  (02E007) In free, out prohibited.  (02E008) In prohibited, out free.  P a g e | 32 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 33 To adjust the gate opening speed, you can set a larger number for a faster opening. The Gate Opening Speed can be configured between 5 and 30, with a default value of 22. P a g e | 33 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 34 This setting is used when the swing arm cannot fully open or shakes during operation. A larger number results in faster compensation speed. The Gate Opening Compensation Speed can be set between 0 and 50, with a default value of 20. P a g e | 34 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 35 Flap Barrier (07E001) Zero position  (07E002) Open position  Slave Position Adjustment (08EXXX) (08E001) Zero position  (08E002) Right position  (08E003) Left position  P a g e | 35 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 36 Set the delay time of gate closing after passing. The valid value for gate closing delay time can be set between 0 to 60s and the default value is 0s. P a g e | 36 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 37 When more than two legal access signals are given at the same time (including the same direction and the opposite direction), the system will remember all pass requests and complete each pass in turn. (14E000) Close (Default)  (14E001) Open  P a g e | 37 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 38 When the alarm tone is turned off, the Turnstile will not emit an alarm tone when encountering an alarm situation. The following figure shows an example of the prohibition of authentication in lane: (17E000) Close  (17E001) Open (Default)  P a g e | 38 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 39 The larger the number, the greater the efficiency of the gate opening and closing force. The valid value for Force Adjustment can be set between 10 to 60 and the default value is 40. P a g e | 39 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 40 When the gate is unlocked in an unauthorized way, the clutch gets locked automatically. The Clutch Locking Mode can be set as: (23E000) Automatic unlock (Default)  (23E001) Authentication to unlock.  P a g e | 40 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 41 When the Anti-pinch Area Setting needs to be set to (25E001) only, the False Direction Entry (26E000) is effective. (26E000) Close (For flap barrier)  (26E001) Only alarm (Default)  (26E002) No detection  P a g e | 41 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 42 When the Anti-pinch Area Setting needs to be set to (25E001) only, the Gate Closing Position (28E001) is effective. (28E000) Last pair (Default)  (28E001) Penultimate pair  P a g e | 42 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 43 Sets whether the device announces a voice or an alarm tone. (30E000) Voice playback  (30E001) Alarm tone (Default)  Swing Arm Type (31EXXX) (31E000) Ordinary swing arm (Default)  (31E001) Larger swing arm  P a g e | 43 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 44 An embedded LED strip is situated along the barrier's side, offering a spectrum of 7 RGB colors and a range of visual effects. This feature is fully customizable to meet our customer's unique preferences. P a g e | 44 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 45: Voice Playback Content Correspondence Table

    Valid Welcome to play! 0067 Valid Have a nice trip! 0068 Valid Please slow down! 0069 Valid Be safe, please wear a helmet! 0070 Valid P a g e | 45 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 46 Pass quickly and do not linger! 0015 time of passage exceeds 5s! Illegal ramming of Not valid Forced entry, please be advised! 0008 the swing arm P a g e | 46 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 47 0003 Out-of-channel card 0004 swipe “Dong” 0029 Break-in 0009 Please reboot the 0013 system. Please correct the zero 0017 position 0030 Sound effect 1 0030 P a g e | 47 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 48: Error Code For Turnstile

    Power-on Self-test failure, Hall Limit Detection Error ER0004 Run Timeout ER0008 Clutch Locked ER016 The code disk detection failed. ER032 Electric Motor Shaft Lock Protection failure P a g e | 48 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 49: Maintenance

    To ensure operational safety, always switch off the power supply when the speed gate is not in use. P a g e | 49 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 50: Troubleshooting

    When the gate is self-tested, the swing obstacles, please remove the obstacles, and arm is not in the normal closing restart the self-test after power-on! position! P a g e | 50 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

  • Page 51: Packing List

    Packing List The package consists of the following items: Comet-Series Power Cable Card Expansion Screw M12*100 Washer Expansion Screw Washers Stainless Steel Maintenance Wipes Hex Wrench P a g e | 51 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
  • Page 52 Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved. P a g e | 52 Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
