SBTL500 Series
User Manual
FBL700 Series
Applicable Models: FBL700, FBL 720
Date: December 2022
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBL700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco FBL700 Series

Summary of Contents for ZKTeco FBL700 Series

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 2 Copyright © 2022 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 FBL700 Series User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 5 The general information which helps in performing the operations faster. The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 6: Table Of Contents

    UTTON ESCRIPTION ’ ................... 17 URNSTILE ONTROL OARD IRING NSTRUCTIONS ......................17 ARAMETER ETTINGS ESCRIPTION ......................21 RROR ODE AND ROUBLESHOOTING WIRING DIAGRAM ..........................22 WARRANTY COVERAGE ......................... 23 P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Device Operating Instructions

    Do not use the machine when there is lightning, in order to prevent damage to the machine. Make sure that the system protection ground is reliably connected to prevent personal injury. P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 8: Overview

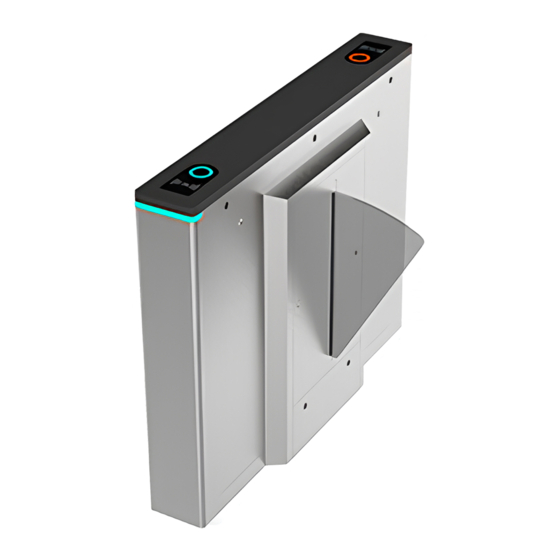

    FBL700 Series User Manual Overview The FBL700 series multi-functional brushless anti-collision flap barrier turnstile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates machinery, electronics, microprocessor control and various reading and writing technologies. Through the configuration of various reading and writing equipment, the use of reliable safety protection devices, real-time alarm system and direction indication interface, the intelligent control and management of the channel are jointly coordinated.

  • Page 9: Features

    Anti-collision function: The swing arm will open to form a certain angle when it is impacted.  When the external force disappears, the swing arm automatically returns to protect the movement P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Technical Specifications

    Lid Material SPCC (with black baking paint) Barrier Material Acrylic Barrier Movement Retracting Emergency Mode Support Security Level Medium MCBF 2 million Opening Time 0.8s Noise of Opening ≤30dB P a g e Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 11: Appearance And Dimensions

    FBL700 Series User Manual Appearance and Dimensions FBL700’s appearance and dimensions are shown below: P a g e | 10 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 12: Product Components And Work Principle

    Product Components and Work Principle Mechanical System The mechanical system of the FBL700 series includes the chassis and the core component. The chassis is a carrier where the Direction indicator, Reader, Infrared sensor, and the Door lock are installed. The core component mainly consists of the Motor, Frame, Bearing, and swing Arm.

  • Page 13: System Composition

    Normal Open Mode: In this working mode, the turnstile is always open. Normal Close Mode: In this working mode, the turnstile is always closed. Testing Mode: In this working mode, the turnstile performs auto-test. P a g e | 12 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 14: Function Introduction

    Recommended fingers: It is recommended to use index, middle, or ring finger for registration and avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint reader. Too low Too close to the edge Vertical P a g e | 13 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Card Verification

    Access Controller. The device enters the card authentication mode when a user presses his/her card to the card reading area. P a g e | 14 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 16 FBL700 Series User Manual P a g e | 15 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 17: Menu Introduction

    The default state is displayed on the LCD screen after the turnstile control board is powered on, and the default state shows the "working mode" of the control board at this time (single P a g e | 16 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 18: Turnstile Control Board Wiring Instructions

    Set whether both sides of the turnstile (inbound and outbound) are allowed to pass or not (all allowed by default). Left forbidden, right allowed  Left allowed, right forbidden  All forbidden  All allowed  P a g e | 17 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 19 Set the type of gates, there are three types of gates: "flap barrier", "single swing barrier", and "double swing barrier"; what turnstile should be set to the corresponding type to work properly. The default is "double swing barrier " type. P a g e | 18 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 20 (such as the left infrared and anti-pinch is very close), to prevent the human body from blocking 2 infrared voices at the same time will be a false alarm. P a g e | 19 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 21 No peripherals may be added to the system without permission. During commissioning, if the commissioning results do not match the stated function, please refer to error code and troubleshooting. P a g e | 20 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Error Code And Troubleshooting

    14 // Open the door B in the plug turn Door_A_Closeing_Stall #define 15//Close the door A in the plug turn Door_B_Closeing_Stall #define 16//Close the door B in the plug turn Door_Emer_After_Close #define P a g e | 21 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 23: Wiring Diagram

    FBL700 Series User Manual Wiring Diagram Check circuit according to the following wiring diagram: P a g e | 22 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Warranty Coverage

    Damage caused by incorrect operation in violation of the operating procedures. Damage caused by unauthorized maintenance of the product. Abnormalities and damage caused by the use of very poor conditions and the use of the environment P a g e | 23 Copyright©2022 ZKTECO CO., LTD. All rights reserved.
  • Page 25 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved. P a g e | 24 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

This manual is also suitable for:

Fbl700Fbl720

Table of Contents
