Instructions for Installation and Care of Arctic Cat Prowler 2012 to Present
Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable.
Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is
best done when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if
conditions prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature
prior to installation.
1. Carefully open the carton and remove the enclosure on a large flat surface that is clean and free of dirt.
Check over the parts included in the carton with the parts list shown below:
2" Adhesive Velcro Hook Strips:
"
"
"
1" Adhesive Velcro Hook Strips:
70" Para Cord
Webbing Straps with Velcro
Webbing Straps with Grommet
Snap Stud with Screw
Cab Enclosure
If any parts are damaged or missing please contact customer service at (606) 845-7439.

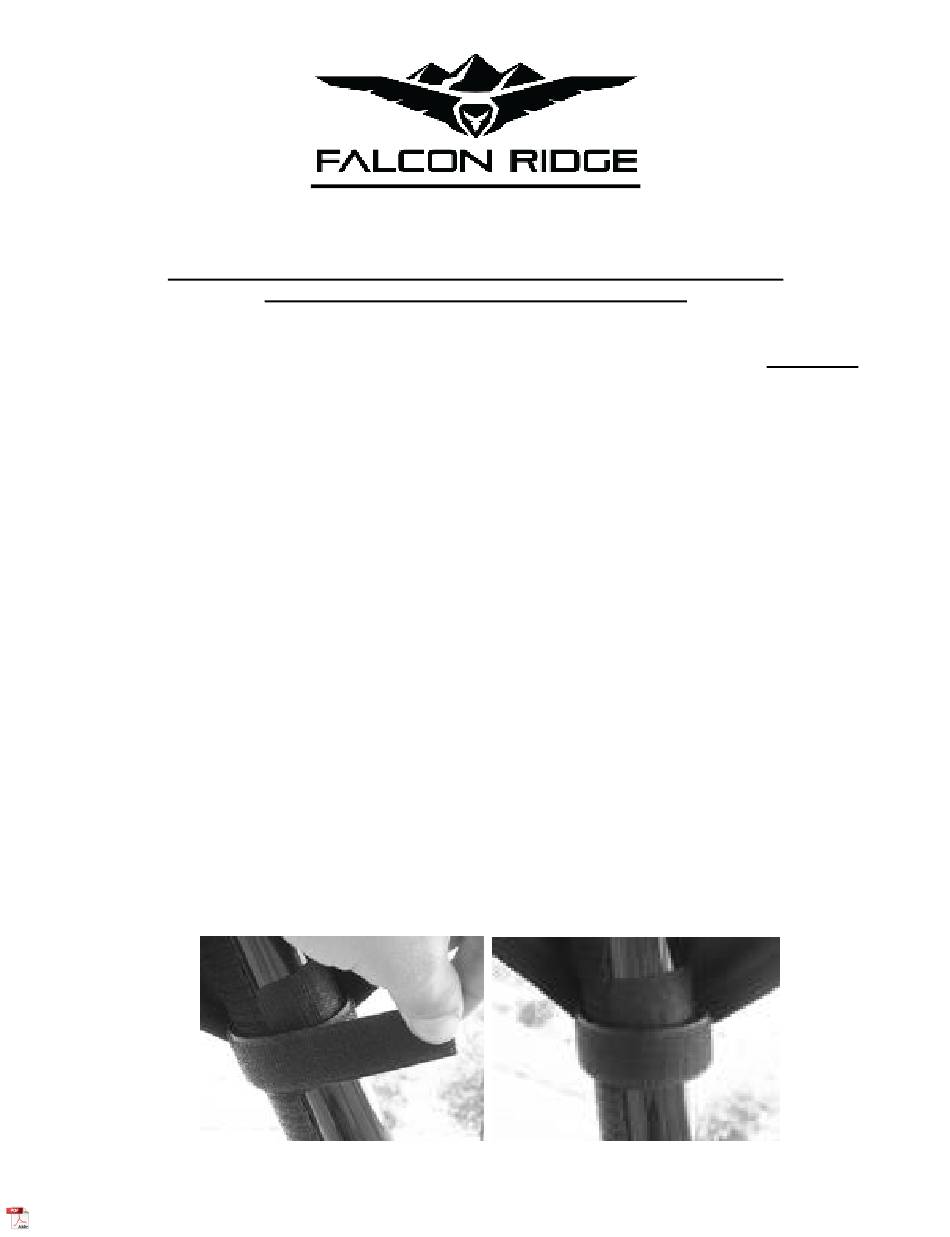

2. The majority of the door is held in place by double-sided Velcro strips sewn perpendicular to the edges.
You need to wrap the roll cage with one of the 6" adhesive Velcro strips first and then wrap the double-
sided Velcro around the adhesive strip to provide a secure hold. Below are photos showing how these
should look.
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
Full Cab with Aero-Vent Polycarbonate Windshield
AC-12PROWLER-FC04
"
"
"
"
"
"
"
"
"
30 each------------3"
4 each------------6"
4 each------------8"
2 each------------20"
2 each------------19"
2 each
4 each
2 each
6 each (1 Extra)
4 panels
