Teknion WWTWK Manual

Work table - curve legs 108" - 192" width

Advertisement

Quick Links

interpret
Installation Guides
Section:
TABLES
Description:
WORK TABLE - CURVE LEGS 108" - 192" WIDTH

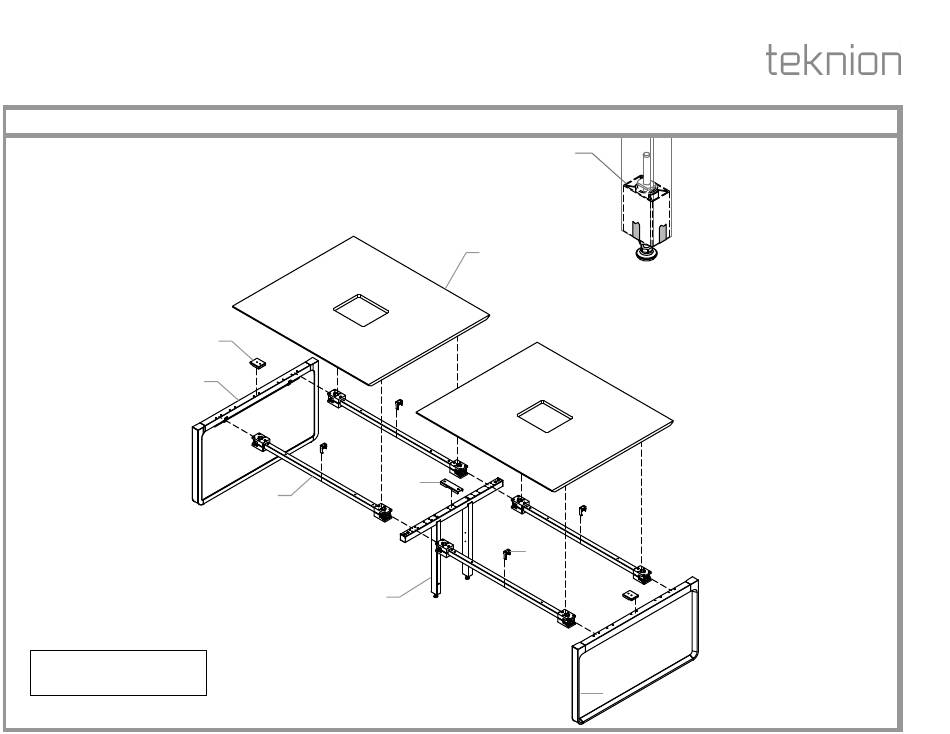

Comeplete Work Table Worksurface
with cut-out, Straight Leg shown as
example. (WWTWKSC)
Work Table (WWTWK)
J
B
L
C1
Leveler Cover is located inside Leg,
assembled and secured in place with tape.
A
D
I
Date:
INT_503b
B
Jan 2018
Page No:
1 of 12
Rev. No: 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the WWTWK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknion WWTWK

  • Page 1 Description: WORK TABLE - CURVE LEGS 108" - 192" WIDTH INT_503b Rev. No: 2 Work Table (WWTWK) Leveler Cover is located inside Leg, assembled and secured in place with tape. Comeplete Work Table Worksurface with cut-out, Straight Leg shown as...
  • Page 2 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 2 of 12 Description: WORK TABLE - CURVE LEGS 108" - 192" WIDTH INT_503b Rev. No: 2 Part and Product Identification L - Transverse Beam Sub-Assembly L1 - Transverse Beam Sub-Assembly (N02-3688) x2 A - Worksurface without Cut-out Worksurface with Cut-out...
  • Page 3 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 3 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b REMOVE MOUNTING NUTS AND SCREWS Do Not Remove Mid Gable Connection End Gable Connection Do Not Remove Middle Gable Connection Mid Gable...
  • Page 4 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 4 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b REMOVE LEVELER PUCKS STEP 2: Remove Pucks. Save them for future adjustment.
  • Page 5 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 5 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b CONNECT GABLE AND BEAMS SECURE WITH FASTENERS (Side View) End Gable Connection Mid Gable Connection DO NOT FULLY TIGHTEN NOTE: Screws for Curve Leg gets...
  • Page 6 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 6 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b CONNECT GABLE AND BEAMS SECURE WITH FASTENERS Mid Gable Connection End Gable Connection DO NOT FULLY TIGHTEN NOTE: Screws for Curve Leg gets fastened from the Top.
  • Page 7 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 7 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b SQUARE AND LEVEL FRAME Use string to align holes Remove tape so Leveler Cover can slide down.
  • Page 8 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 8 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b INSTALL CENTER SPACERS ON WORKSURFACES Cetner STEP 8: Install Spacers to underside of Worksurface with the screws provided.
  • Page 9 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 9 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b INSTALL FIRST WORKSURFACE Underside View Pilot hole to be used for Mid Gable Connection Gable Pilot hole to be used for End...
  • Page 10 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 10 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b INSTALL SECOND WORKSURFACE Pilot hole to be used for End Gable Connection Gable Pilot hole to be used for Mid Gable Connection Underside View...
  • Page 11 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 11 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b INSTALL FLUSH PLATE ONTO THE WORKSURFACES STEP 11: Install Flush Plate to underside of Worksurface.
  • Page 12 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 11 of 12 Description: WORK TABLE - STRAIGHT AND ANGLED LEGS 108" - 192" WIDTH INT_503b INSTALL END CAP STEP 12: Insert End Caps onto the Mid Gable making sure "doors" swing sidewise.
