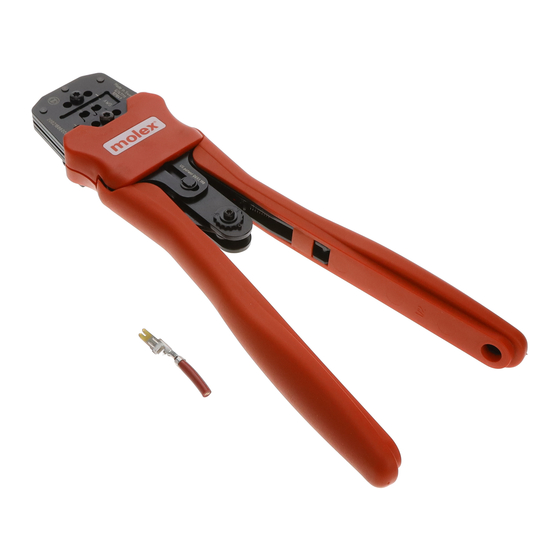

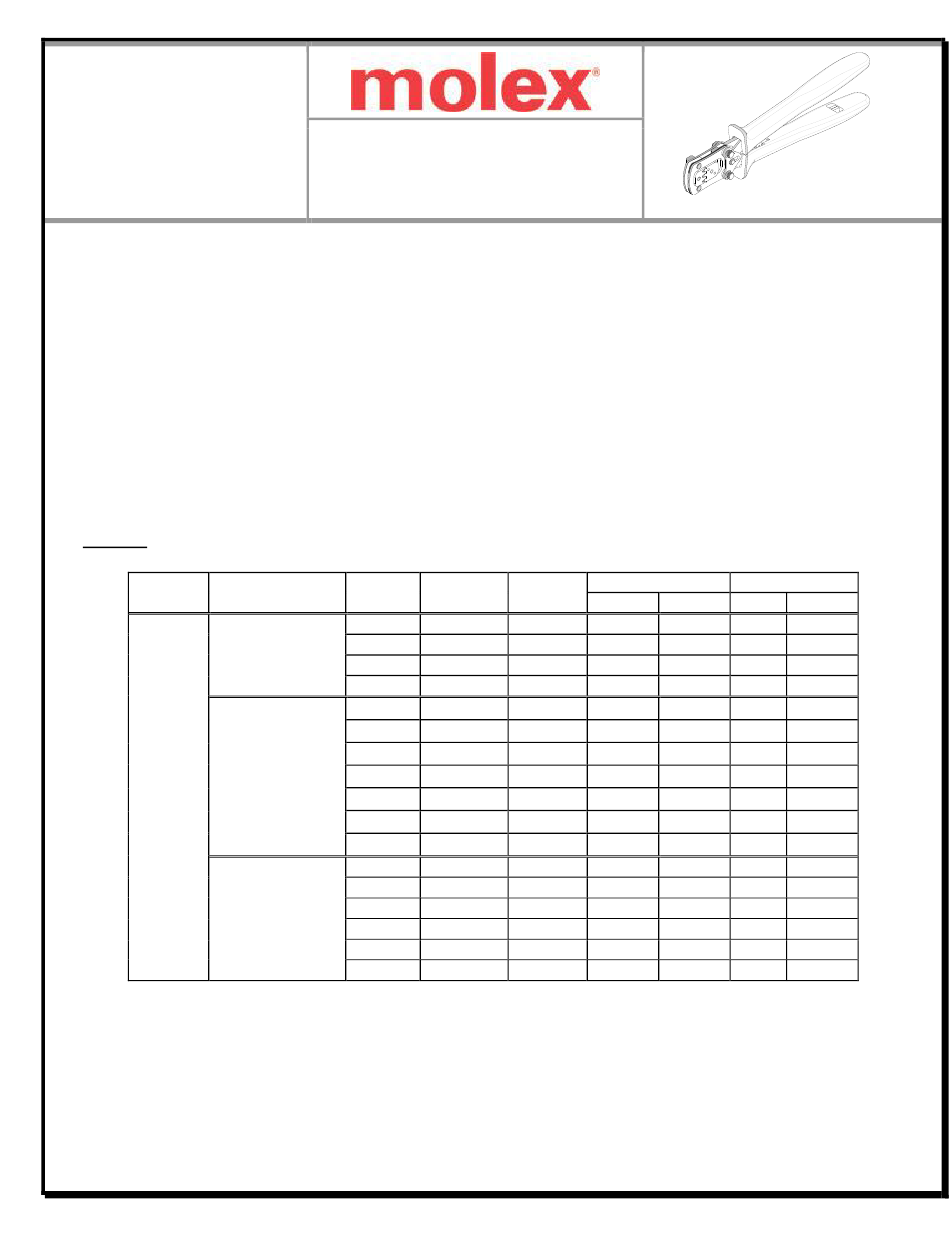

Hand Crimp Tool for MOX 1.5mm (.059") Receptacle Crimp Terminal
Order Number
63811-9400
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
Right- and left-handed applications
Easy handling due to outstanding force ratio
A precision user-friendly terminal locator with wire stop that holds terminals in the proper crimping position
Tooling can be installed in the 63816-1950 Power Crimp Adapter, which is installed into the 63816-0270 (110 V)
or 63816-0280 (220 V) Battery Powered Tools and the 63816-1900 Electric Crimp Machine
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: MOX 1.5mm (.059") Receptacle Crimp Terminal, 0.22-0.50mm² and 14-22 AWG.
Terminal
Terminal Order No. Wire Size Actual mm² Wire Type
Series No.
98195
Doc No: ATS-6381194HM
Revision: C
Application Tooling
Specification Sheet
0.22mm²
0.35mm²
98195-1211
22 AWG
0.50mm²
1.40mm²
16 AWG
1.50mm²
98195-1213
2.00mm²
2.00mm²
14 AWG
2.50mm
0.50mm²
0.60mm²
20 AWG
98195-1212
0.75 mm²
18 AWG
1.00mm²
Release Date: 08-24-07
Revision Date: 06-30-23
Insulation Diameter
mm
0.22
ID
1.15-1.25 .045-.049 4.6-5.0 .118-.197
0.34
IR
1.25-1.40 .049-.055 4.6-5.0 .118-.197
0.352
TXL
1.50-1.60 .059-.063 4.6-5.0 .118-.197
0.495
ID
1.40-1.50 .053-.059 4.6-5.0 .118-.197
1.33
IR
2.25-2.40 .089-.094 4.6-5.0 .118-.197
1.226
TXL
2.20-2.30 .087-.091 4.6-5.0 .118-.197
1.53
ID
2.10-2.25 .082-.089 4.6-5.0 .118-.197
1.82
IR
2.55-2.70 .100-.106 4.6-5.0 .118-.197
1.88
ID
2.35-2.55 .093-.100 4.6-5.0 .118-.197
1.941
TXL
2.50-2.70 .098-.106 4.6-5.0 .118-.197
2.45
ID
2.70-2.90 .106-.114 4.6-5.0 .118-.197
0.495
ID
1.40-1.50 .053-.059 4.6-5.0 .118-.197
0.59
IR
1.75-1.90 .069-.074 4.6-5.0 .118-.197
0.562
TXL
1.75-1.90 .069-.074 4.6-5.0 .118-.197
0.79
ID
1.60-1.80 .063-.071 4.6-5.0 .118-.197
0.806
TXL
1.90-2.05 .074-.080 4.6-5.0 .118-.197
0.933
ID
1.75-1.90 .069-.074 4.6-5.0 .118-.197
UNCONTROLLED COPY
TYPE 4A
Strip Length
In.
mm
In.
Page 1 of 7
