SERVICE MANUAL
EN
29
DETAIL "A"
10
16
ITEM
PART
NO.
NO.
DESCRIPTION
1
20-3699◆ SOC. HD. CAP SCREW
2
20-4456
LOCKNUT
3
72-337
SWIVEL NUT ................................. 1
4
73-50
D. M. NIPPLE ................................ 1
5
83-1636
GAUGE
6
83-2052
GAUGE LENS
7
84-40
CONNECTOR ................................ 1
8
84-321
BONNET ........................................ 1
9
84-322*
SCREW .......................................... 1
10
84-325*
STEM ASSEMBLY .......................... 1
11
84-328
DISC .............................................. 1
12
84-329
DIAPHRAGM ................................ 1
▲■
13
84-331
NUT ............................................... 1
14
84-335
VALVE ........................................... 1
▲
15
84-338
TAIL PIECE .................................... 1
16
84-340*
KEY ............................................... 1
77-1758-R11 (5/2018)

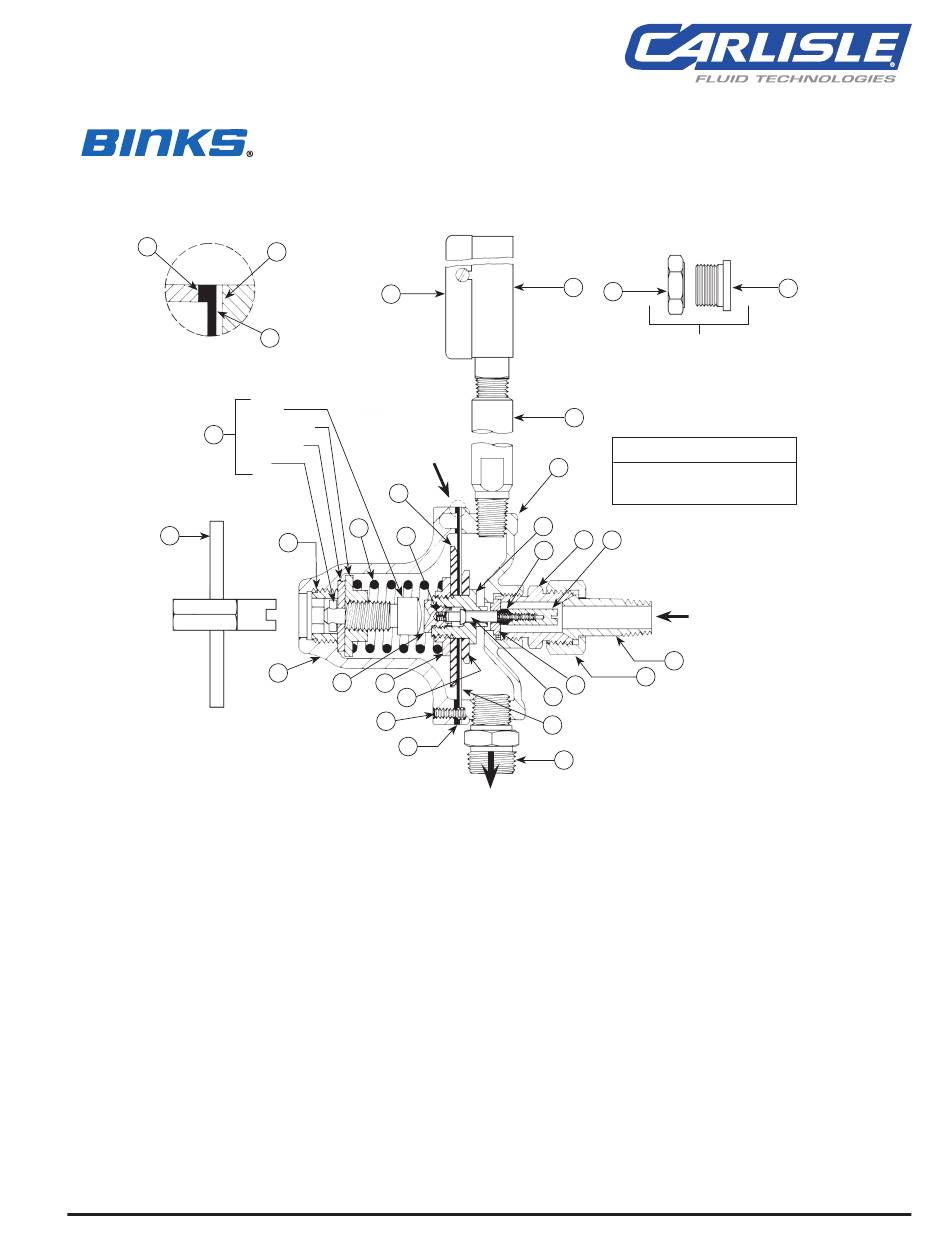

LOW PRESSURE DIAPHRAGM FLUID REGULATORS
WITH ZINC BODY
84-346 KEY OPERATED
26
6
12
STEM
See
FOLLOWER
Detail
WASHER
"A"
PIN
25
17
21
9
8
23
13
11
Item #1 screws: Tighten
1
to 35 –45 inch-pounds.
12
When ordering, please specify Part No.
.... 6
10-24 x 1"
.......................... 1
(84-415)
........................... 1
(0 - 15 PSI)
............ 1
(Replacement)
84-415 REMOTE CONTROL (OBSOLETE)
5
2
7
19
18
20 22
14
27
24
26
4
REGULATED FLUID OUTLET
PARTS LIST
ITEM
PART
QTY.
NO.
NO.
17
84-341*
▲
18
84-342
19
84-344
20
84-347
21
84-353
▲
22
84-355
23
84-393
24
84-395
▲
25
84-398
26
84-399
▲■
27
84-450
▲
28
84-460
29
84-463
▲■
* Parts used only on Model 84-346 Regulator.
◆ Before installing regulator, tighten all 6 flange screws securely.
▲ Part of Repair Kit No. 84-591.
■ Part of Seal Kit Part No. 84-592.
1 / 4
28
FOR MODEL 84-415
REGULATOR
NOTE
Pre-assemble items 11, 12, 13, 18,
25 and 26 and tighten to
120 – 150 inch-pounds.
UNREGULATED
FLUID INLET
15
3
DESCRIPTION
SPRING .......................................... 1
RETAINER ..................................... 1
BODY ............................................ 1
INLET ............................................ 1
SPRING .......................................... 1
CAP ............................................... 1
SOCKET ......................................... 1
ROD .............................................. 1
DISC .............................................. 1
DIAPHRAGM ................................ 1
SEAT .............................................. 1
BODY
................................ 1
(84-415)
GASKET ........................................ 1
