SERVICE MANUAL
EN
PARTS LIST
Ref.
Replacement
No.
Part No.
1
55-23
CUP COVER
2
55-24
YOKE
3
55-29
CENTER POST NUT
4
55-30
GASKET
5
55-37
LEVER
6
55-444
8 OUNCE CUP (ALUMINUM)
7
55-472
CENTER POST
8
81-440
CUP ATTACHMENT ASSEMBLY
9
AD-404*
ADAPTER, 1/4 NPS(m) x 3/8
*Required when adapting to 3/8 NPS threads.
77-1261-R17 (5/2018)

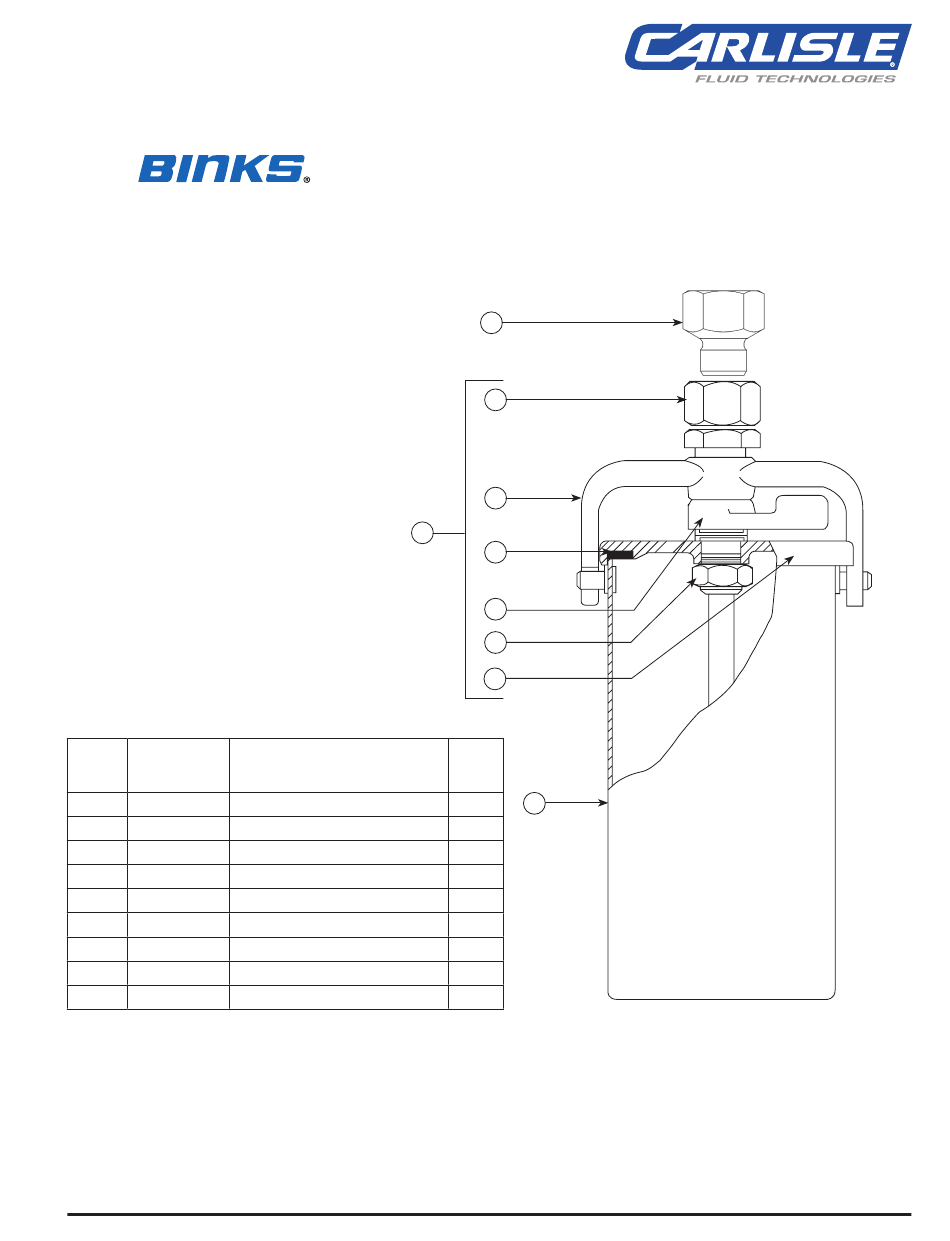

MODEL 81-540 8 OZ. SIPHON CUP
(FOR SMALL & FULL SIZE GUNS)
8
Ind.
Description
Parts
Req'd.
1
1
1
1
1
1
1
1
1
1 / 4
9
7
2
4
5
3
1
6
www.carlisleft.com
Advertisement
Table of Contents
Related Manuals for Carlisle 81-540
Summary of Contents for Carlisle 81-540
- Page 1 SERVICE MANUAL MODEL 81-540 8 OZ. SIPHON CUP (FOR SMALL & FULL SIZE GUNS) PARTS LIST Ind. Ref. Replacement Description Parts Part No. Req'd. 55-23 CUP COVER 55-24 YOKE 55-29 CENTER POST NUT 55-30 GASKET 55-37 LEVER 55-444 8 OUNCE CUP (ALUMINUM)
- Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
- Page 3 NOTES 77-1261-R17 (5/2018) 3 / 4 www.carlisleft.com...
- Page 4 This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
