Carlisle Binks 85-441 Service Manual

SERVICE MANUAL
EN
FOR USE WITH BINKS MODEL 80-295 AND 80-296
2-QUART CUP ASSEMBLIES FOR REGULATING ATOMIZING AIR

SPECIFICATIONS

Type .............................................. Diaphragm, relieving
Outlet Size (Nipple) ........................ 1/4" NPS(m)
Inlet Size (Swivel Adapter) .............. 1/4" NPS(f)
Gauge Port Size (2) in Regulator ..... 1/8" NPT(f)
Gauge Range ................................. 0-60 PSIG
Rated Operating Conditions:
Inlet Pressure ............................. 300 PSIG max.
Temperature ............................... 0º to 150º F
(with dewpoint less than air temp. below 35º F)
Outlet Pressure Adjustment Range .... 2-50 PSIG*
NOTE
*
This range is not the minimum or maximum outlet pressure
limit for this regulator. The regulator can be adjusted to zero
PSIG outlet pressure and to pressures higher than 100 PSIG.
However, this regulator should not be used to control pressures
outside this specified range.
IMPORTANT: READ AND FOLLOW ALL INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE INSTALLING,
OPERATING OR MAINTAINING THIS EQUIPMENT. KEEP THIS MANUAL FOR FUTURE REFERENCE.
Improper use can cause bodily injury or equipment dam-
age. Read the following:
• This air regulator and gauge assembly is intended only for use
in general service AIR SYSTEMS. Do not use for liquids or
gases other than air.
• Do not use where pressure or temperature can exceed rated
operating conditions (see specifications).
• Regulated outlet pressure must never be set higher than the
maximum operating pressure of the downstream air tool or
equipment. An outlet pressure gauge should always be used.
77-2825-R3 (3/2022)

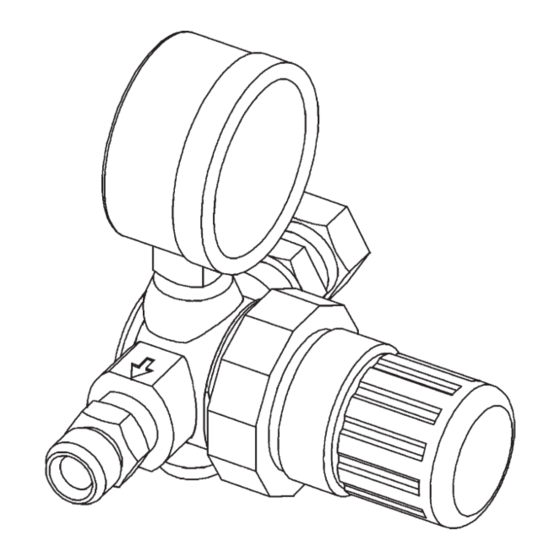

MODEL 85-441
CUP REGULATOR ASSEMBLY
WARNING
!
1 / 4
The accuracy of the indication of
pressure gauges can change dur-
ing shipment and normal use.
If gauge accuracy is necessary for pre-
venting risks of injury or property dam-
age, the gauge should be checked
before use and on a routine periodic
basis. (See ANSI B40-1974 for gauge
standards.)
www.carlisleft.com
