Carlisle Binks 84-409 Service Manual

Stainless steel fluid regulator, 5 – 100 psi

R-10-PICKUP:77-1915 7/23/14 12:34 PM Page 1

SERVICE MANUAL

Torque to 150-160

inch pounds

Torque to 35-45

inch pounds

† Also available in Repair Kit 6-527. Please order separately.

77-1915-R11 (2/2018)

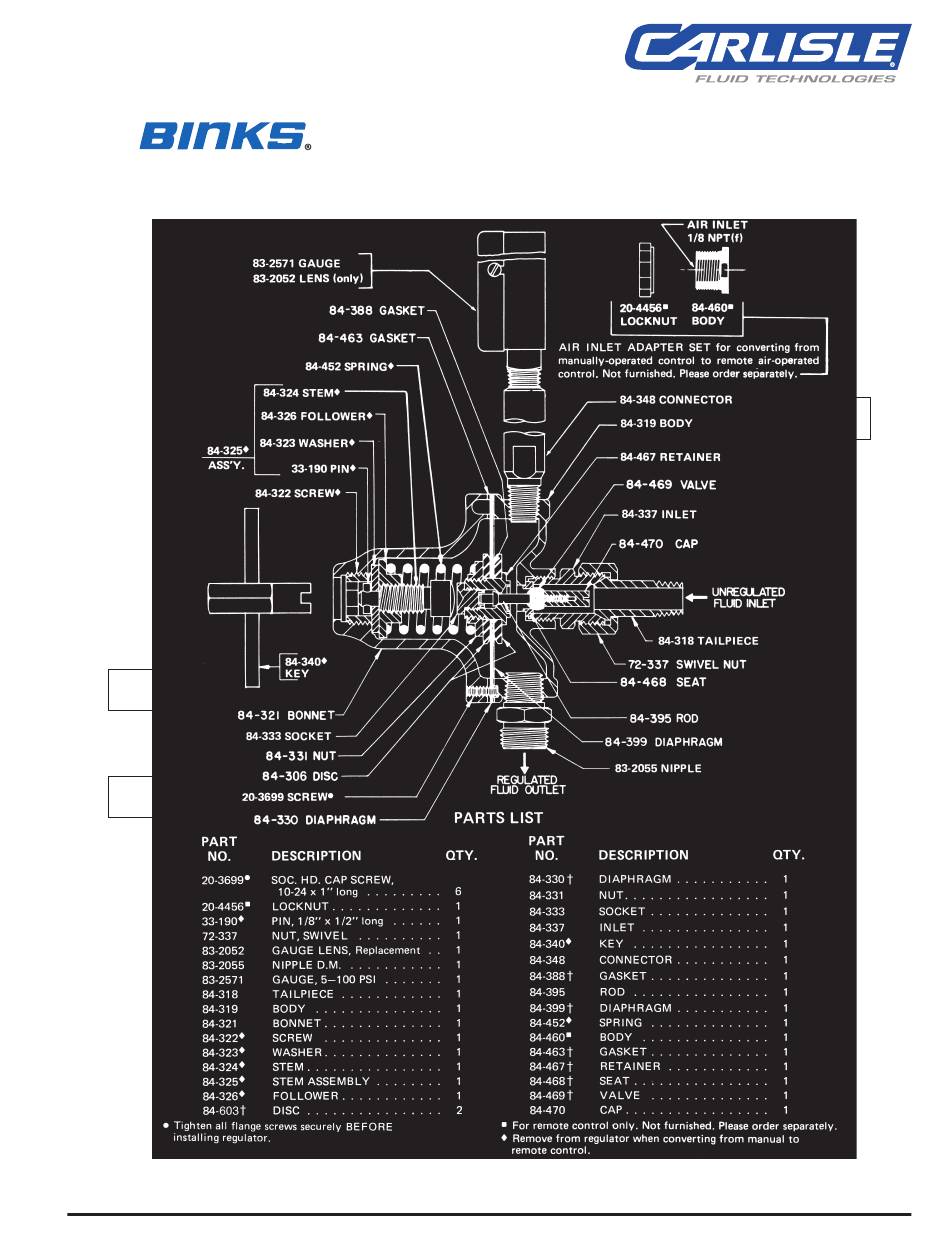

MODEL 84-409 STAINLESS STEEL

FLUID REGULATOR, 5 – 100 PSI

1 / 4

Torque to 150-160

inch pounds

www.carlisleft.com

Table of Contents

Need help?

Do you have a question about the Binks 84-409 and is the answer not in the manual?

Page 1 R-10-PICKUP:77-1915 7/23/14 12:34 PM Page 1 SERVICE MANUAL MODEL 84-409 STAINLESS STEEL FLUID REGULATOR, 5 – 100 PSI Torque to 150-160 inch pounds Torque to 150-160 inch pounds Torque to 35-45 inch pounds † Also available in Repair Kit 6-527. Please order separately. 77-1915-R11 (2/2018) 1 / 4 www.carlisleft.com...
Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
Page 3 -PICKUP:77-1915 7/23/14 12:34 PM Page 2 NOTE Due to variations in diaphragm stretch, fluid flow may not shut-off when the pressure is backed off to zero. Install an inlet valve if complete shut-off is required. CAUTION When blowing back to reverse-flush regulator, be sure air pressure DOES NOT exceed maximum rating of gauge.
Page 4 This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
