SERVICE MANUAL
EN
Tighten to
35 – 45 inch-pounds
Tighten to
35 – 45 inch-pounds
77-1921-R7 (10/2018)

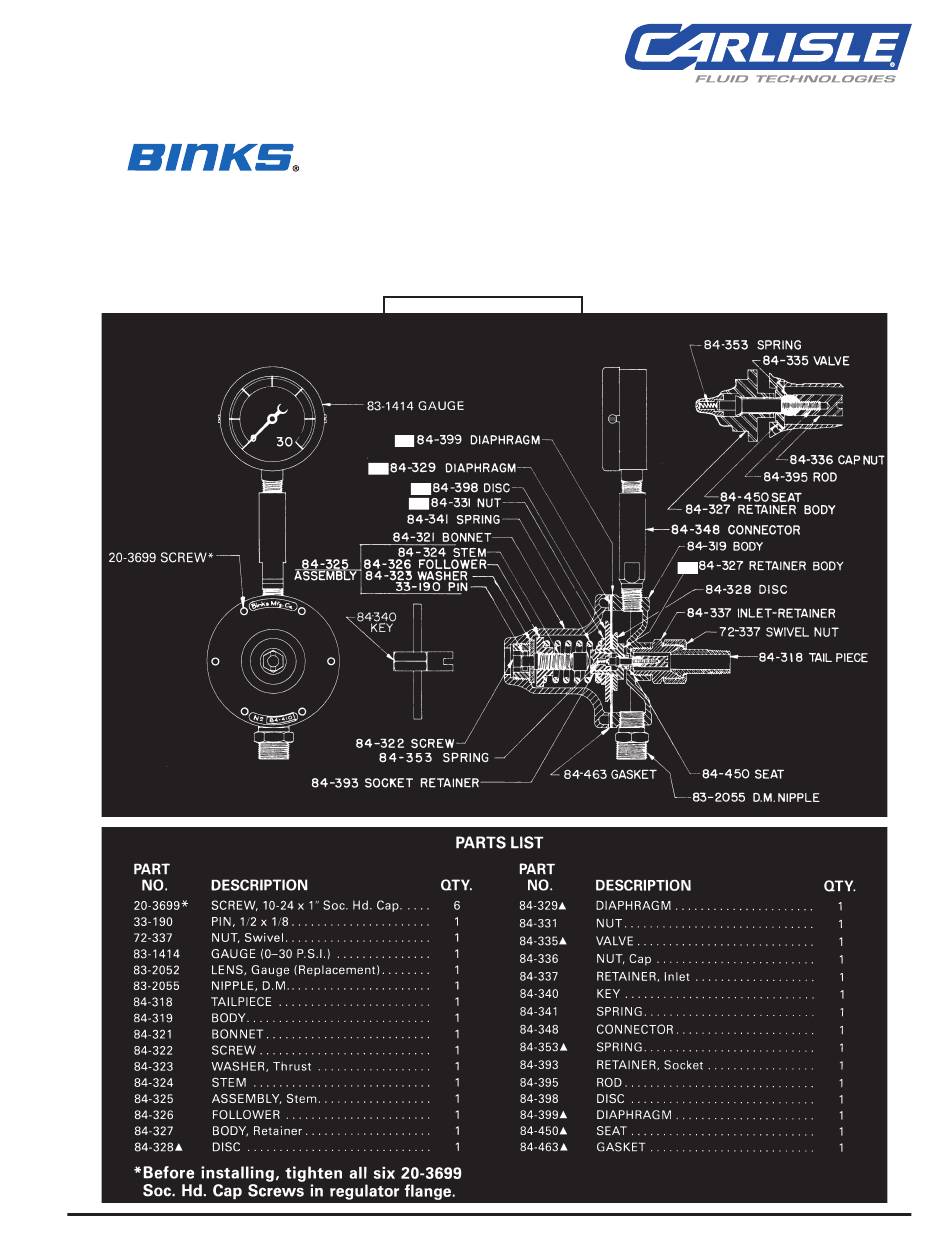

MODEL 84-410
LOW PRESSURE FLUID REGULATOR
STAINLESS STEEL, 0-15 P.S.I.
NOTE
Items marked with I should be
NOTE
pre-assembled and tightened to
120 – 150 inch-pounds.
Items marked with I should be
pre-assembled and tightened to
120 – 150 inch-pounds.
I
I
I
I
I
I
I
I
1 / 4
I
I
Also available in Repair Kit 6-528.
Please order separately.
Also available in Repair Kit 6-528.
Please order separately.
