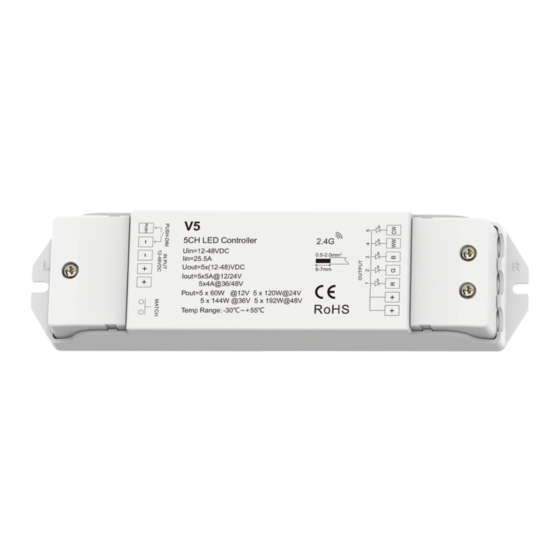

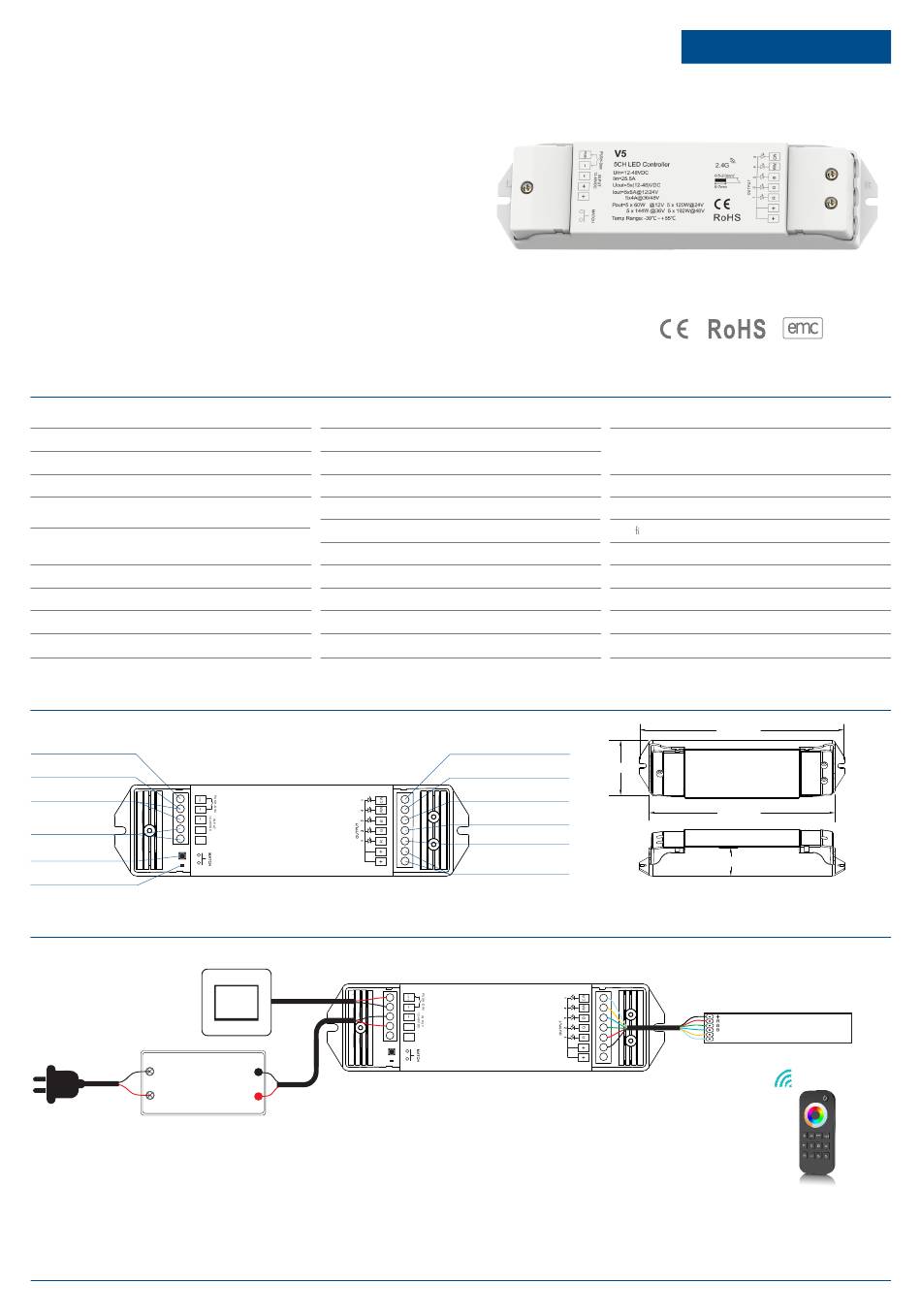

SKYDANCE V5 Quick Start Manual

V5
5 Channel RGB+CCT LED RF Controller
● Match with RF 2.4G single zone or multiple zone RGB+CCT remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Built in 10 dynamic mode, include jump or gradual change style.
● Auto-transmitting function: Controller automatically transmit signal to
another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Light on/off fade time 3s selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.

Technical Parameters

Input and Output
Input voltage 12-48VDC
Input current
25.5A
Output voltage 5 x (12-48)VDC
5A/CH@12-24V
Output current
4A/CH@36-48V
5 x 60 @12V 5 x 120@24V
Output power
5 x144@36V 5 x 192@48V
Output type
Constant voltage
Warranty
Warranty 5 years
Reverse polarity, Short circuit
Protection

Mechanical Structures and Installations

Push switch
Push switch common
Power Input -
Power Input +
+
+
Match key
LED indicator

Wiring Diagram

Push Switch
AC100-240V
Power Supply
12-48VDC
Constant Voltage
Note:
Long press match key 5s, then short press match key 3 times,
the light on/off time will be set to 3s, the indicator light blink 3 times.
Long press match key 10s, RGB
and
CCT
light
can
not
be
on
at
the
same
time,
the light on/off time restore to 0.5s (restore factory default).
Long
press
match
key
15s, RGB
and
CCT
light
can
be
on
at
the
same
time.
User Manual Ver 2.0.1
2023.10
Dimming data
Input signal RF 2.4GHz + Push Dim
Control distance 30m(Barrier-free space)
Dimming gray scale 4096 (2^12) levels
Dimming range 0 -100%
Logarithmic
Dimming cur ve
PWM Frequency
1000Hz (default)
Environment
Operation temperature
Ta: -30
Case temperature (Max.) Tc: +85
IP rating IP20
Output Cold White LED -
Output Warm White LED -
Output Blue LED -
Output Green LED -
Output Red LED -
V5
+
+
Safety and EMC
EMC standard (EMC)
Safety standard
Radio Equipment(RED)
Certi cation
Package
Size
Gross weight
O O
C ~ +55 C
O
C
45mm
Output LED +
RF RGB+CCT
RED
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,RED
L178 x W150 x H38mm
0.150kg
175mm
160mm
27mm
RGB+CCT LED strip
WW
CW
RGB+CCT Remote
