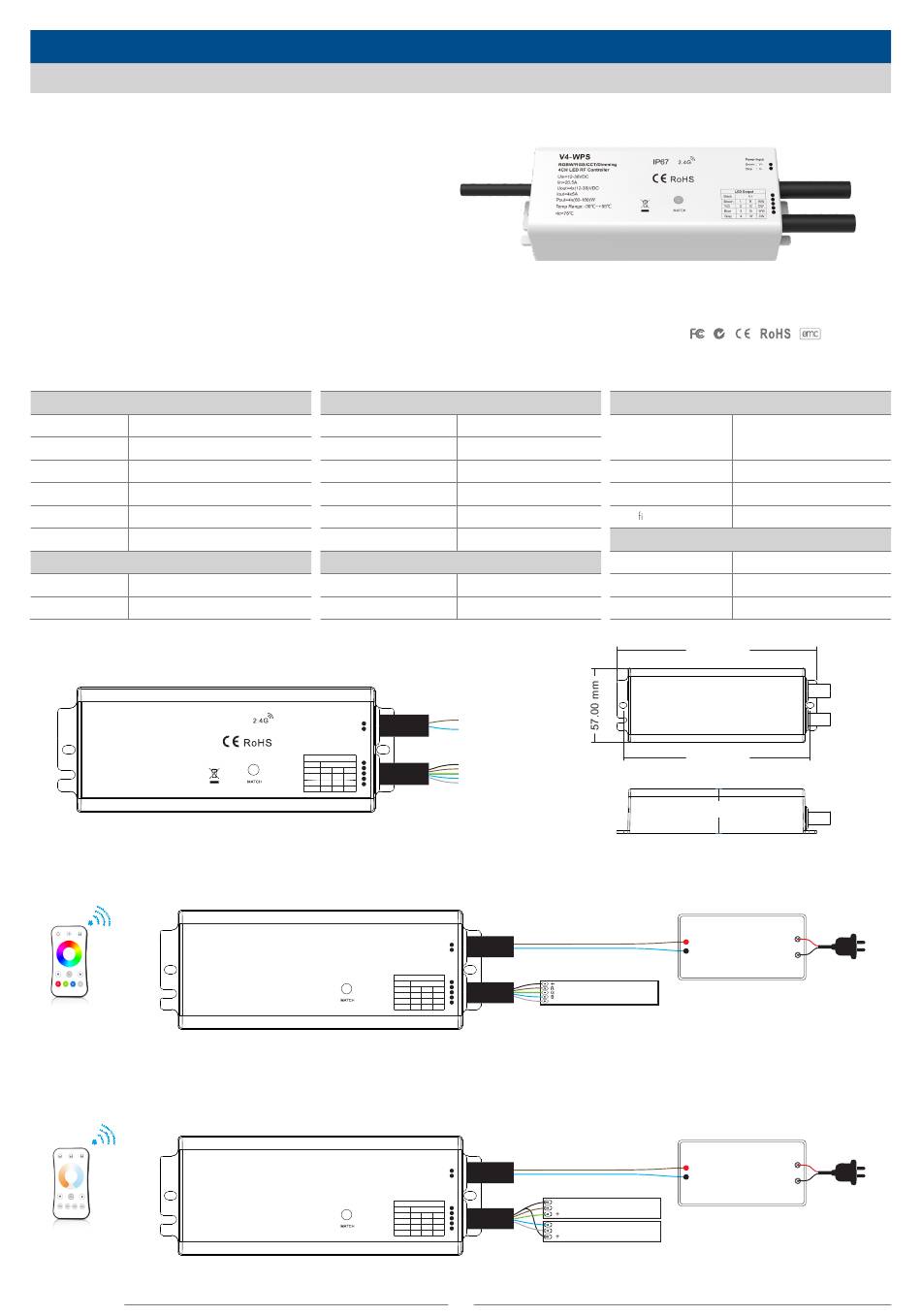

SKYDANCE V4-WPS Quick Start Manual

4 Channel Constant Voltage LED Waterproof RF Controller
Model No.: V4-WPS
IP67 waterproof/4 Channels/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize

Features

● Waterproof 4 channel constant voltage LED RF controller with IP67 rating,
suitable for outdoor and damp environment.
● Match with RF 2.4G single zone or multiple zone single color, dual color and
RGB/RGBW remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● When using with RGB/RGBW light
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Fade in and out effect selectable.

Technical Parameters

Input and Output
Input voltage
12-36VDC
Input current
20.5A
Output voltage 4 x (12-36)VDC
Output current
4CH,5A/CH
Output power
4x(60-180W)
Output type
Constant voltage
Warranty
5 years
Warranty

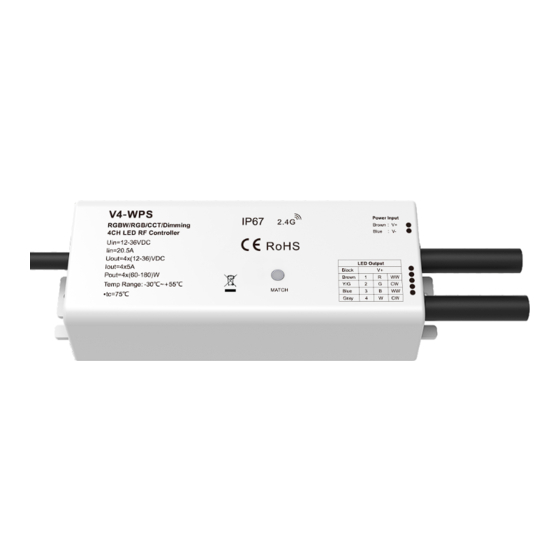

Mechanical Structures and Installations

V4-WPS
RGBW/RGB/CCT/Dimming
4CH LED RF Controller
Uin=12-36VDC
Iin=20.5A
Uout=4x(12-36)VDC
Iout=4x5A
Pout=4x(60-180)W
Temp Range: -30℃~+55℃
•tc=75℃

Wiring Diagram

● V4-WPS for RGB/RGBW
RGB /RGBW remote
Note: If connect with RGB LED strip, please long press match key for 15s, the controller will become RGB type,
● V4-WPS for dual color
CCT remote
User Manual Ver 1.0.0
, built in 10 dynamic mode, include jump or gradual change style.
Dimming data
Input signal
Control distance
Dimming gray scale
Dimming range
Dimming curve
PWM frequency
Package
Size
Gross weight
Power Input
IP67
Brown ：V+
：V-
Blue
LED Output
Black V+
Brown 1 R WW
Y/G 2 G CW
Blue 3 B WW
Gray 4 W CW
RF 2.4GHz
30m(Barrier-free space)
4096 (2^12) levels
0 -100%
Logarithmic
1000Hz (default)
L165 x W98 x H72mm
0.492kg
Power Input
Brown ：V+
：V-
Blue
LED Output
Black V+
Brown 1 R WW RGBW LED strip
Y/G 2 G CW
Blue 3 B WW W
Gray 4 W CW
Power Input
Brown ：V+
：V-
Blue
CW
LED Output
Dual color LED strip
WW
Black V+
Brown 1 R WW
Y/G 2 G CW
CW
Blue 3 B WW
Dual color LED strip
WW
Gray 4 W CW
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certi cation
Environment
Operation temperature
O
Ta: -30 C ~ +55
Case temperature (Max.)
O
T c: +85 C
IP rating
IP67
153.00 mm
143.50 mm
34.00 mm
Power Supply
12-36VDC
Constant Voltage
the light blinks 5 times .
Power Supply
12-36VDC
Constant Voltage
LVD RED
O
C
AC100-240V
AC100-240V
