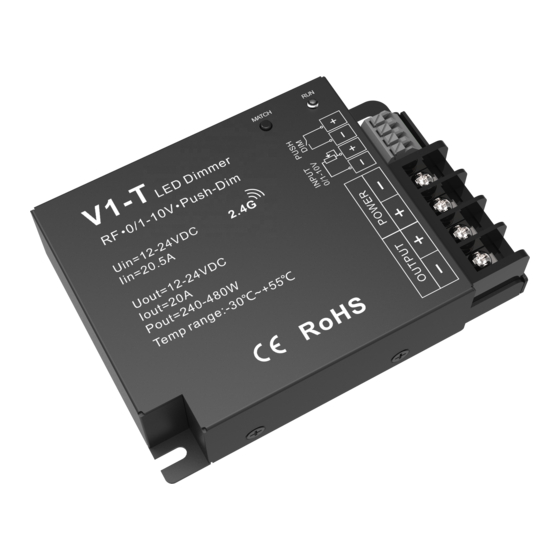

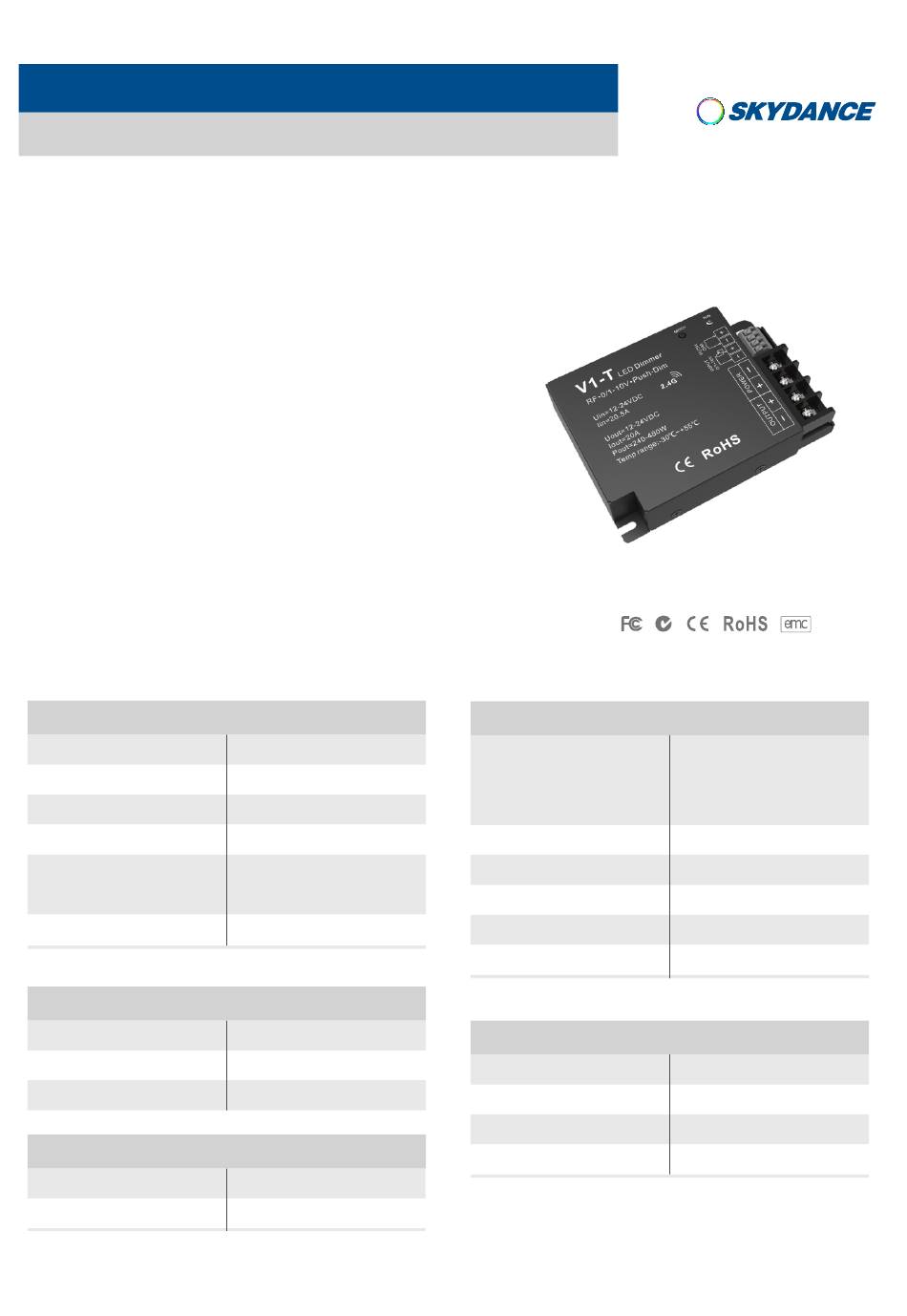

Single Color LED Controller
Model No.: V1-T
3-in-1 dimming/RF remote/0-10V/Push Dim/20A output/Auto-transmitting/Synchronize
Features
● RF remote, 0/1-10V, Push Dim (3-in-1) dimming.
● Match with Skydance's 2.4G dimming remote control,
one RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automaticly transmit
signal to another controller with 15m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and
dimming function.
Technical Parameters
Input and Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Environment
Operation temperature
Case temperature
Max.
(
IP rating
Warranty and Protection
Warranty
Protection
User Manual Ver 1.0.2
2018.11.01
12-24VDC
20.5A
12-24VDC
1CH,20A
240W/480W
(12V/24V)
Constant voltage
O
O
Ta: -30
C ~ +55
C
)
O
T c: +85
C
IP20
5 years
Reverse Polarity
Dimming data
Input signal
Control distance
Dimming level
Dimming range
Dimming cur ve
PWM Frequency
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
www.iskydance.com
RED
RF 2.4GHz
0/1-10V
Push Dim
15m
4096 levels
0 - 100%
Logarithmic
500Hz
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
Page 1
Advertisement
Related Manuals for SKYDANCE V1-T
Summary of Contents for SKYDANCE V1-T
- Page 1 3-in-1 dimming/RF remote/0-10V/Push Dim/20A output/Auto-transmitting/Synchronize Features ● RF remote, 0/1-10V, Push Dim (3-in-1) dimming. ● Match with Skydance’s 2.4G dimming remote control, one RF controller accept up to 10 remote control. ● Auto-transmitting function: Controller automaticly transmit signal to another controller with 15m control distance.
- Page 2 V1-T Single Color LED Controller Mechanical Structures and Installations Installation rack LED indicator Push switch in Match key Push switch com 0/1-10V input Power input - Power input + LED output + LED output - 107.00 mm 75.00 mm 24.50 mm...
- Page 3 V1-T Single Color LED Controller Match Remote Control (two match ways) End user can choose the suitable match/delete ways. Two options are offered for selection: Use Power Restart Use the controller’s Match key Match: Match: Switch off the power, then switch on power again,...
- Page 4 V1-T Single Color LED Controller Dimming Cur ve RF and Push dimming 0/1-10V dimming Gamma=1.6 Gamma=1.6 6.0. 7.0 10.0 Brightness(%) 0/1-10V(V) Malfunctions Analysis & Troubleshooting Malfunctions Causes Troubleshooting 1. No power. 1. Check the power. No light 2. Wrong connection or insecure.
