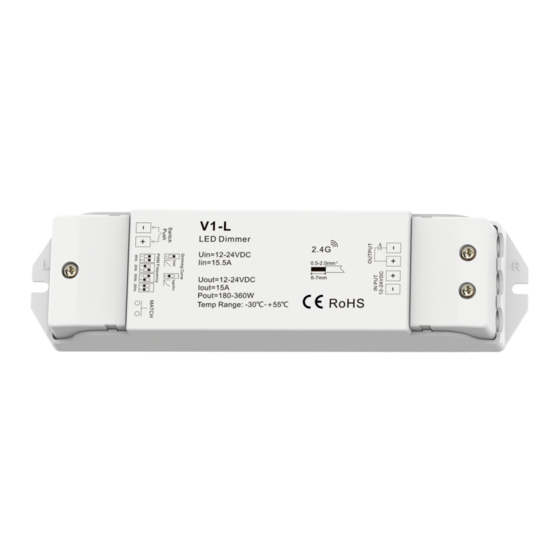

Single Color LED Controller
Model No.: V1-L
1 Channel/Step-less dimming/Wireless remote control/Push Dim/Four PWM frequency/Linear or logarithmic dimming
Features
● Match with Skydance's 2.4G dimming remote control, one RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and dimming function.
● Logarithmic or linear dimming curve selectable.
● PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable.
Technical Parameters
Input and Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Dimming data
Input signal
Control distance
Dimming level
Dimming range
Dimming cur ve
PWM Frequency
User Manual Ver 1.0.2
12-24VDC
15.5A
12-24VDC
1CH,15A
180W/360W
(12V/24V)
Constant voltage
RF 2.4GHz + Push Dim
30m
4096 levels
0 - 100%
Logarithmic or linear
250Hz, 500Hz, 2kHz, 8kHz
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
IP rating
Warranty and Protection
Warranty
Protection
www.iskydance.com
LVD
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
Ta: -30
C ~ +55
Max.
(
)
O
T c: +85
C
IP20
5 years
Reverse Polarity
RED
O
C
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE V1-L
Summary of Contents for SKYDANCE V1-L

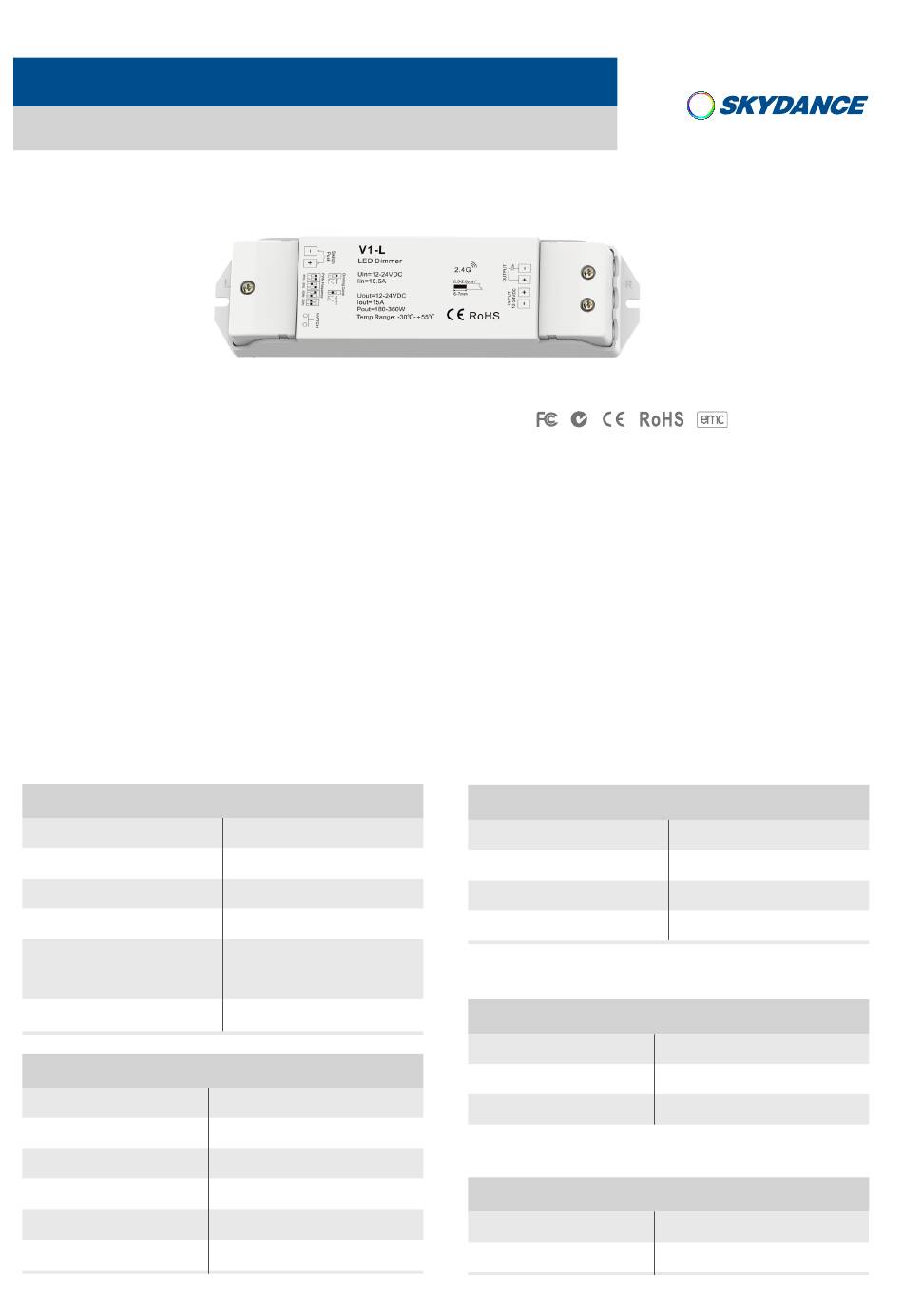

- Page 1 1 Channel/Step-less dimming/Wireless remote control/Push Dim/Four PWM frequency/Linear or logarithmic dimming Features ● Match with Skydance’s 2.4G dimming remote control, one RF controller accept up to 10 remote control. ● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance.
- Page 2 Power input + Match key Power input - LED indicator 175mm 45mm 27mm 160mm Wiring Diagram ● V1-L match with dimming remote Single color LED strip V1-L AC100-240V Power Supply 12-24VDC Constant Voltage RF remote ● V1-L connect with push switch...
- Page 3 V1-L Single Color LED Controller Match Remote Control (two match ways) End user can choose the suitable match/delete ways. Two options are offered for selection: Use Power Restart Use the controller’s Match key Match: Match: Short press match key, immediately press on/off...
- Page 4 V1-L Single Color LED Controller ● Synchronization: If more than one controller are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%.
