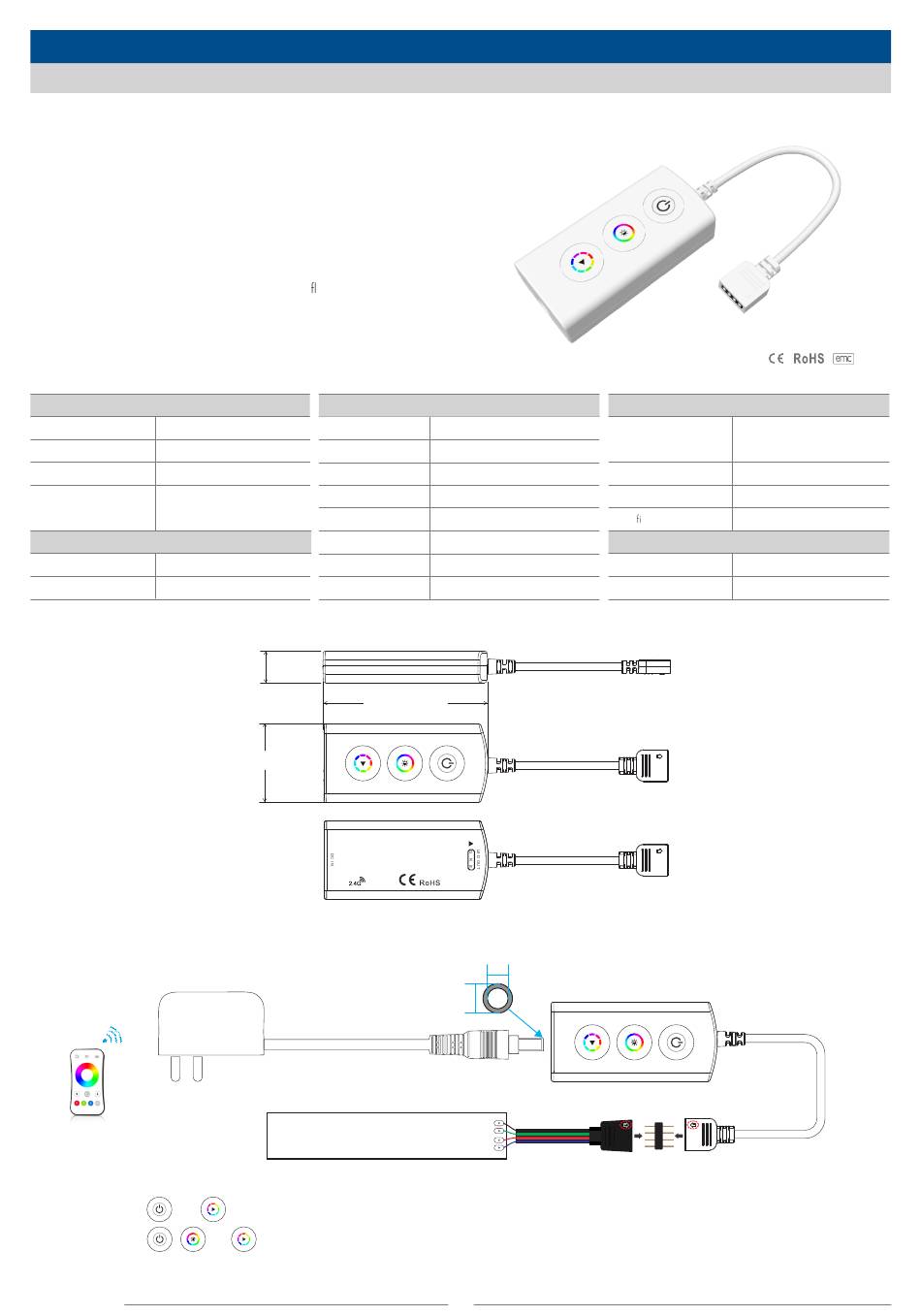

SKYDANCE VD3 Manual

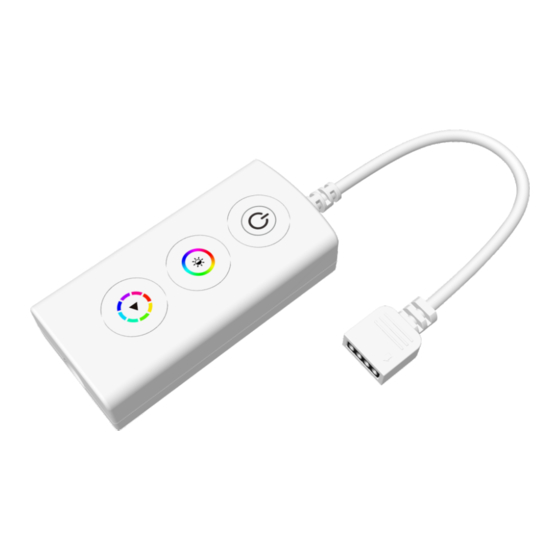

3-Button RF RGB LED Controller
Model No.: VD3
3 channel constant voltage / Max 4.5A
output / 3-button / Wireless remote control / Step-less dimming

Features

● 3 channel constant voltage RGB LED RF controller.
● 1.5A per channel, output connects with 5 meters RGB LED strip.
● 3 buttons operation with on/off, mode and color adjustment.
● Match with 2.4G single zone or multiple zone RGB remote control optional.
● 256 levels 0-100% dimming smoothly without any ash.
● Built in 10 dynamic modes, include jump or gradual change style.

Technical Parameters

Input and Output
Input voltage
5-24VDC
Output voltage 5-24VDC
Output current
3CH, 1.5A/CH
22.5W@5V
Output power
54W@12V
108W@24V
Environment
Operation temperature
O
Ta: -30 C ~ +50
O
Tc: +85 C
Case temperature (Max.)
Dimension
14.00 mm

Wiring Diagram

Power Adapter
5-24VDC
RGB remote

Note:

1. Press and hold the and
2. Press and hold the ,
"BRG" (flashes 3 times) and "BGR" (flashes 4 times) output sequences, default is GRB.
User Manual Ver 1.0.1
Dimming data
Input signal
Control distance
Dimming gray scale
Dimming range
Dimming cur ve
PWM Frequency
Warranty
O
C
Protection
73.00mm
35.00 mm
VD3
RGB LED Controller
Uin: 5-24VDC
Iout: 3CH, 1.5A/CH
Pout: 22.5W@5V 54W@12V 108W@24V
Temp Range: -30℃~+50℃
(Back side)
5m RGB LED strip
button for 2s, output LED flashes 3 times, the light on/off fade time will change between 3s and 0.5s.
and button for 2s, output LED flashes multiple times, switch between "GRB" (flashes 1 times), "RGB" (flashes 2 times),
3 button + RF 2.4GHz
30m(Barrier-free space)
4096 (2^12) levels
0 -100%
Logarithmic
2KHz (default)
5 years
Over-heat

Inner diameter
2.1mm
Outer diameter
5.5mm
+
G
R
B
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
Radio Equipment(RED)
Certi cation CE,EMC,RED
Package
Size W120 x L43 x H27mm
0.013kg
Gross weight
RED
