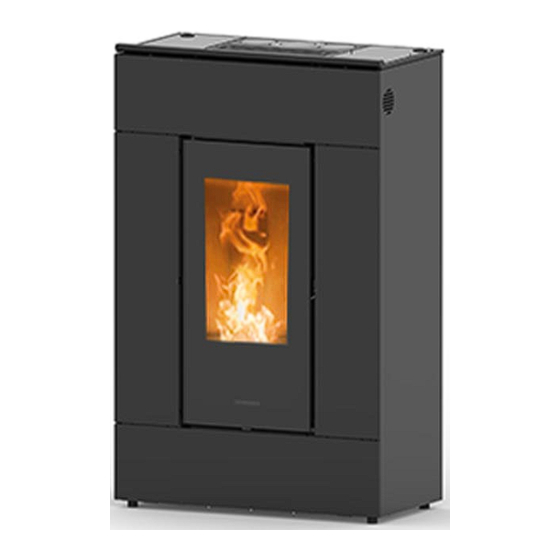

SLIMQUADRO LUMIA
ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE.
FRA - MANUEL D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN.
ENG - INSTALLATION, USE AND MAINTENANCE GUIDE.
DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG.
ESP - MANUAL DE INSTALACIÓN, USO Y MANTENIMIENTO.
NL - HANDLEIDING VOOR INSTALLATIE, GEBRUIK EN ONDERHOUD.
ITA - Informazioni importanti per la sicurezza ed il corretto funzionamento.
FRA - À lire impérativement ! Informations importantes pour la sécurité et le bon fonctionnement.
ENG - Must read! Important information for safety and correct operation.
DEU - Unbedingt lesen! Wichtige Informationen zur Sicherheit und zum sicheren Betrieb.
ESP - ¡Leer! Informaciones importantes para la seguridad y el correcto funcionamiento.
NL - Belangrijke informatie voor de veiligheid en correcte werking.

Advertisement

Table of Contents
loading

Related Manuals for THERMOROSSI SLIMQUADRO LUMIA

Summary of Contents for THERMOROSSI SLIMQUADRO LUMIA

  • Page 1 SLIMQUADRO LUMIA ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE. FRA - MANUEL D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN. ENG - INSTALLATION, USE AND MAINTENANCE GUIDE. DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG. ESP - MANUAL DE INSTALACIÓN, USO Y MANTENIMIENTO. NL - HANDLEIDING VOOR INSTALLATIE, GEBRUIK EN ONDERHOUD.
  • Page 2 Installation, use and maintenance guide SLIMQUADRO LUMIA Page 1...

  • Page 3: Table Of Contents

    Installation, use and maintenance guide SLIMQUADRO LUMIA INDEX 1 – INTRODUCTION..........................5 2 – TECHNICAL CHARACTERISTICS...................... 7 3 – GENERAL DESCRIPTION ........................8 4 – INSTALLATION ........................... 9 5 – DESCRIPTION OF THE CONTROLS ....................12 6 – USE OF THE APPLIANCE .........................19 7 –...
  • Page 4 DECLARATION OF PERFORMANCE ACCORDING TO REGULATION (EU) 305/2011 Codice di identificazione unico del prodotto-tipo: SLIMQUADRO LUMIA Modello, lotto, serie ai sensi dell'articolo 11, paragrafo 4: SLIMQUADRO LUMIA Unique identification code of the product type: Model, batch or serial number required under Article 11 (4):...
  • Page 5 Installation, use and maintenance guide SLIMQUADRO LUMIA IT – SCHEDA PRODOTTO (UE 2015/1186) IT – MARCHIO EN – PRODUCT FICHE (EU 2015/1186) EN – BRAND FR – FICHE PRODUIT (UE 2015/1186) FR – MARQUE THERMOROSSI S.P.A. NL – PRODUCTGEGEVENSBLAD (EU 2015/1186) NL –...

  • Page 6: Introduction

    Furthermore, Thermorossi reserves the right to apply changes to the content of this manual anytime and without notice. Thermorossi S.p.A. retains copyright on this manual. These instructions may not be reproduced or communicated to third parties or used in any other way without the necessary authorisation.
  • Page 7 Installation, use and maintenance guide SLIMQUADRO LUMIA ATTENTION: Before every use make sure that the burner is clean and positioned correctly in its seat, check that the ash pan is clean and that the firebox door is firmly closed and tight.

  • Page 8: Technical Characteristics

    80 (B) 80 /130 (A) Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Legenda...

  • Page 9: General Description

    Do not open the fuel feed door for any reason and Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito cons do not go near the appliance until said gases have been exhausted.

  • Page 10: Installation

    Installation, use and maintenance guide SLIMQUADRO LUMIA 4 – INSTALLATION 4.1 APPLIANCE LOCATION Follow the general guidelines set out in paragraph 1.1 to the letter. Keep in mind that the flooring of the room in which the appliance is to be installed must withstand the combined weight of the appliance and the pellets contained in the tank.
  • Page 11 LEGENDA SUPERIORE POSTERIORE REAR Page 10 Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo Prodotto Descrizione Lumia Assemblaggio stufa SLIM LUMIA...
  • Page 12 Moreover, a suitable windbreak fitting must be installed in the duct’s terminal. Il presente disegno è di proprietà esclusiva di THERMOROSSI S. p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Prodotto...

  • Page 13: Description Of The Controls

    Installation, use and maintenance guide SLIMQUADRO LUMIA 5 – DESCRIPTION OF THE CONTROLS The appliance, when operating, could be hot to the touch, particularly the door of the combustion chamber: take care when handling the appliance components. Your appliance has obtained the CE marking and has been made to run for at least one hour to check that it functions correctly.
  • Page 14 Installation, use and maintenance guide SLIMQUADRO LUMIA Display The following information can appear on the display: Displays the preset combustion power, and consequently the pellet consumption, by the number of bars that are lit up around the flame symbol, using this logic:...
  • Page 15 Installation, use and maintenance guide SLIMQUADRO LUMIA 5.3 DATE: SETTING THE DATE AND TIME The appliance must be energised and the I/0 switch in position "1". The current date and time can be set using the DATE function. To set the current time and date proceed as follows:...
  • Page 16 Installation, use and maintenance guide SLIMQUADRO LUMIA 5.4 CHRONO: ON/OFF PROGRAMMING The appliance must be energised and the I/0 switch in position "1". The CRONO function allows you to set the weekly program by setting up to 3 on-off cycles at different times for every day from Monday through to Sunday.
  • Page 17 Installation, use and maintenance guide SLIMQUADRO LUMIA The following screen will appear: At this point if no further programming is required for that day go to point 6-A. If, on the other hand, you wish to program a third ON/OFF cycle for that day go to point 6-B.
  • Page 18 Installation, use and maintenance guide SLIMQUADRO LUMIA Enabling the programmed cycles: Back in the initial screen, to enable the appliance to carry out the ON/OFF cycles as programmed simply press the Clock Button. The text CR.ON and the image of a clock will appear on the main screen: The programmed cycles are now enabled.
  • Page 19 Installation, use and maintenance guide SLIMQUADRO LUMIA After a few seconds the following screen will appear on the display: To change the operating level, hold down a Scroll Button while simultaneously pressing the other Scroll Button. To set the desired level or to exit the screen simply press the Menu Button; the initial screen will appear on the display.

  • Page 20: Use Of The Appliance

    Installation, use and maintenance guide SLIMQUADRO LUMIA 6 – USE OF THE APPLIANCE 6.1 DESCRIPTION OF THE OPERATING STAGES START: has a duration of approx. 20 minutes, during this phase the appliance is programmed to light the flame. The appliance will not accept power variations in the firebox.
  • Page 21 Data Revisione Top channelling: Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Prodotto Descrizione...
  • Page 22 Rear channelling: remove the two caps (A) by loosening the screws (B) and install the supplied collars (C). In this case top channelling will not be possible. Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguit Prodotto...
  • Page 23 Page 22 Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Prodotto Descrizione...
  • Page 24 Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, Prodotto Descrizione...
  • Page 25 CAUTION: if the two rear outlets are not used it is mandatory to position the lever in such a way that all the air flows out Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore.

  • Page 26: Additional Chronothermostat

    ATTENTION: Use N.O. (normally open) contacts for the connection to the chrono-thermostat. In the event of connections to the chrono-thermostat Thermorossi S.p.a. shall not be held responsible for the appliance not starting up, smoke leaks or breakage of the lighting component. In the event of a programmed cycle on always ensure that the brazier is clean and seated correctly in its lodging.

  • Page 27: Cleaning And Maintenance

    Installation, use and maintenance guide SLIMQUADRO LUMIA 8 – CLEANING AND MAINTENANCE 8.1 FOREWORD Before commencing any operation disconnect the appliance from the electric power outlet. Your pellet appliance needs maintenance; it requires a few simple, basic but frequent control and general cleaning operations. This will guarantee safe and regular operation and optimal output at all times.
  • Page 28 Installation, use and maintenance guide SLIMQUADRO LUMIA FIGURE 3 EVERY WEEK: • Inspect and clean the openings indicated as V1 (Figures 4, 5). To access them open the door, remove the ash pan and lift the flaps. On completion check that nothing is preventing them from closing properly.
  • Page 29 Installation, use and maintenance guide SLIMQUADRO LUMIA FIGURE 5 EVERY 2 WEEKS: • Inspect and clean the internal smoke exhaust “TEE” V2 (Figure 8). To gain access open the side door (Figure 6) and unscrew the 2 knobs (Figure 7). Before reassembling the door, check the condition of the seal, and if worn replace it.
  • Page 30 Installation, use and maintenance guide SLIMQUADRO LUMIA FIGURE 8 MONTHLY: • Remove the pellet chute (Figure 9) and remove the back of the combustion chamber (Figure 10) by lifting it and rotating it towards the outside of the appliance. Thoroughly clean the tubes and the smoke passages (Figure 11).
  • Page 31 Installation, use and maintenance guide SLIMQUADRO LUMIA FIGURE 11 EVERY 3 MONTHS: • Clean the smoke channels and check that they are airtight. TWICE A YEAR: • Clean the flue outlet and inspect the smoke exhaust pipe for airtightness. AT THE END OF THE WINTER SEASON OR WHENEVER NECESSARY Do an in-depth cleaning of the appliance firebox, with brushes and a vacuum cleaner.

  • Page 32: Smoke Discharge Tube And Ventilation Of The Rooms

    Installation, use and maintenance guide SLIMQUADRO LUMIA 9 – SMOKE DISCHARGE TUBE AND VENTILATION OF THE ROOMS 9.1 FOREWORD Due to the frequent accidents caused by poor functioning of flue outlets installed in private dwellings, we have prepared the following paragraph to assist the installer in his inspection of the parts concerned with eliminating the gases produced by combustion.
  • Page 33 Installation, use and maintenance guide SLIMQUADRO LUMIA 9.3.2 FLUE OUTLET / FLUE SYSTEM COMPONENTS 1 Chimney 2 Flow path 3 Smoke discharge tube 4 Thermal insulation 5 External wall 6 Outer lining 7 Flue outlet section 8 Multiwall chimney 9 Connector...
  • Page 34 Installation, use and maintenance guide SLIMQUADRO LUMIA 9.3.3 CONTROLS PRIOR TO INSTALLING THE APPLIANCE The user must possess a certificate of conformance for the flue outlet (Ministerial Decree 22 January 2008, no. 37). The flue outlet must be built in compliance with UNI 10683.

  • Page 35: Alarms

    ATTENTION: The appearance of one of the alarms described below, does not necessarily imply a defect in the product, but simply Thermorossi S.p.A.’s intention to inform the user of the need for corrective actions in order to guarantee maximum safety, greater reliability and high performance of the appliance.

  • Page 36: Electrical Wiring

    Installation, use and maintenance guide SLIMQUADRO LUMIA 11 – ELECTRICAL WIRING Riarmo Aspiratore fumi Ventilatore ambiente Resistenza Motore Motoriduttore pellet 230V 50Hz accensione Pellet Power Spia Verde Pressostato CN10 Encoder Pannello Sonda aspiratore fumi Comandi Natural Cronotermostato Sonda Fumi Modem...

  • Page 37: Information For The Skilled Technician

    Installation, use and maintenance guide SLIMQUADRO LUMIA 12 – INFORMATION FOR THE SKILLED TECHNICIAN 12.1 MAIN COMPONENTS AND THEIR OPERATION SMOKE PRESSURE SWITCH This is a safety switch that stops the screw feeder motor whenever necessary. The main cause for the pressure switch tripping is a blocked flue outlet or smoke exhaust pipe.
  • Page 38 Installation, use and maintenance guide SLIMQUADRO LUMIA 12.3 TROUBLESHOOTING CAUSE-SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION CLEAN THE BRAZIER AS INDICATED IN THIS USE AND PELLET TANK IS EMPTY MAINTENANCE GUIDE, THEN FILL UP THE TANK WITH THE FOLLOWING ALARM IS SHOWN ON THE DISPLAY “NO PELLET”...
  • Page 39 Installation, use and maintenance guide SLIMQUADRO LUMIA ROOM TEMPERATURE THERMOSTAT SET TOO LOW, APPLIANCE OPERATES THE APPLIANCE NEEDS TO RUN FOR MORE HOURS AT A INTERMITTENTLY HIGHER POWER; SET A HIGHER ROOM TEMPERATURE THE APPLIANCE SHOULD OPERATE FOR MORE TIME...
  • Page 40 Installation, use and maintenance guide SLIMQUADRO LUMIA Fire Lovers Via Grumolo, 4 (Z.I.) 36011 Arsiero (VI) - ITALY Fax 0445.741657 - www.thermorossi.com - info@thermorossi.it Page 39...
