- Page 1 Installation Guide Drive Reach OTR Vehicle Cell Signal Booster Kit Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 STEP 1 Select Mounting Location &... -
Page 4: Package Contents

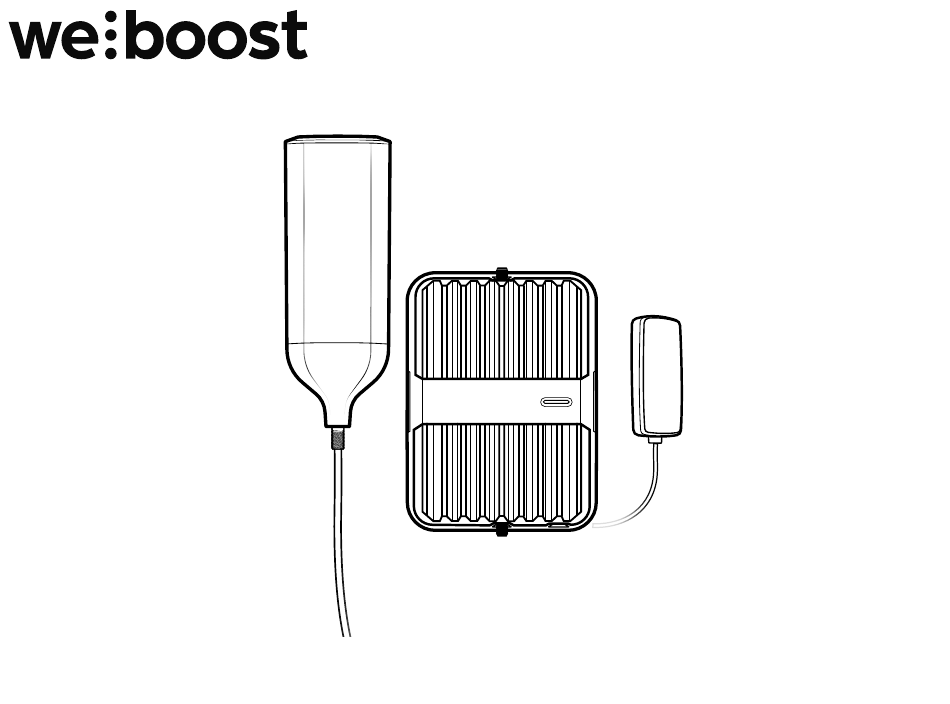

Package Contents Drive Reach Outside Inside Power 13 in. & 18 in. Signal Booster & Antenna Antenna Supply Mast Extensions, Bracket Side-Exit Adapter, Spring, 3-Way Mount, Cable Adaptor & Thread Lock Packs... - Page 5 Installation Overview Outside Antenna with Masts best mounting other mounting point points Inside Antenna Booster WORKS WITH DIFFERENT VEHICLE TYPES SUCH AS; SEMIS, SPRINTER VANS & PICKUPS Depending on the type of truck, there may be built-in antenna mounting points. If the vehicle does not have built-in mounting points, the antenna includes a three-way mount that will work on vehicles with mirror rails.
- Page 6 Best Outside Antenna Position on other Vehicle Types mounted above horizontal plane of vehicle For best performance the outside antenna should be mounted above the horizontal plane of the vehicle and/or above other gear on top of the vehicle. mounted above horizontal plane of vehicle &...
-
Page 7: Step 1 Select Mounting Location & Assemble The Outside Antenna
STEP 1 Select Mounting Location & Assemble the Outside Antenna Outside Antenna The antenna should be mounted above gear on top of the vehicle. Once you have 13 in. 13 in. determined the best location for the outside mast mast antenna, insert coax cable through mast extension (mast can be used optionally), run cable... - Page 8 (STEP 1 cont.) Outside Antenna After determining outside antenna mounting add Thread location and assembly is the correct height, Locker apply the thread locker precisely to thread points only (not plastic body of antenna). mast Screw mast onto antenna. Connect 14-foot cable to outside antenna mast cable.
-
Page 9: Step 2 Mounting The Outside Antenna
STEP 2 Mounting the Outside Antenna If the vehicle does not have built-in mounting points, a 3-way mount is included that will work on vehicles with mirror rails. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. -
Page 10: Step 3 Mounting The Inside Antenna
STEP 3 Mounting the Inside Antenna In-Vehicle Antenna Identify a place to mount the in-vehicle antenna, either on the dash or side of the seat and mount. The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used. -
Page 11: Step 4 Booster Location & Connect Coax Cables
STEP 4 Booster Location & Velcro® strips Connect Coax Cables Find a accessible location to place the booster that has good air flow. The booster includes a mounting bracket that provides different mounting options. It can be secured with Velcro® strips, screws or zip ties. Securing the booster with Velcro®... - Page 12 (STEP 4 cont.) from Outside Antenna Connect the coax cable from the outside antenna to the port labeled “Outside Antenna” on the booster. Then connect the cable from the inside antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna...
-
Page 13: Step 5 Connect Power Supply To Booster
STEP 5 Connect Power Supply to Booster Connect the 12V power supply cord to the end of the booster, labeled "12V DC." Then plug the power adapter into vehicle’s 12V DC power supply. Push switch to ON position. If your Drive Reach is working correctly, the light on the booster will be green. -
Page 14: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your Drive Reach booster is functioning properly and there are no issues with installation. SOLID RED Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. - Page 15 (Booster Light Patterns cont.) NOTE: The signal booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting, you must initiate a new power cycle by disconnecting and then reconnecting power to the booster.
-
Page 16: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660). - Page 17 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the outside antenna and inside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
-
Page 18: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone. RF Safety Warning: Any antenna used with this device must be located at least 8 inches (20 cm) from all persons. - Page 19 (Safety Guidelines cont.) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER IN THE U.S., PLEASE GO TO THE LINK BELOW: https://www.weboost.com/carrier-registration...
-
Page 20: Antenna Info
Antenna Info The following accessories are certified by the FCC to be used with the Drive Reach Booster. This radio transmitter 4726A-460061 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. -
Page 21: Specifications
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 22: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 23 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 24 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support@weboost.com Copyright © 2022 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000470_Rev02_10.06.23...
