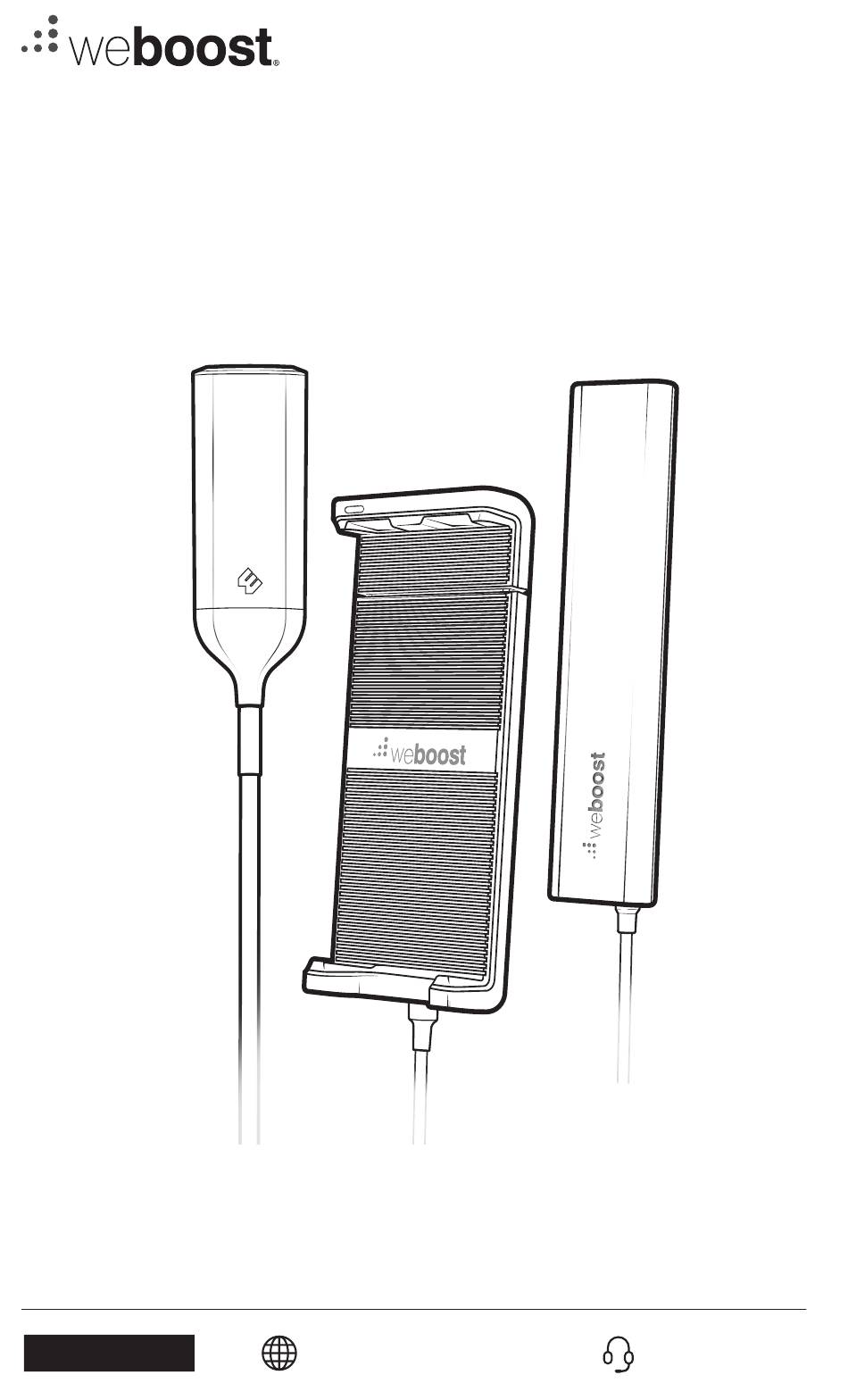

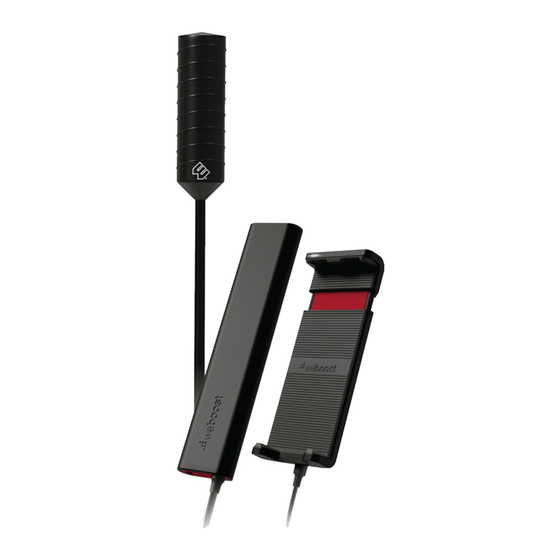

  • Page 1 A WILSON ELECTRONICS BRAND DRIVE SLEEK OTR Cell Signal Booster For Trucks Installation Guide support.weboost.com 866.294.1660 NEED HELP?
  • Page 2 ______ Index Package Contents Select Mounting Location & STEP 1: Assemble the Outside Antenna Mount The Antenna STEP 2: Route Antenna Cable & Connect Booster STEP 3: Route Fixed Booster Cable & Connect To Cradle STEP 4: Connect System To Power STEP 5: Insert Your Phone Into Cradle STEP 6:...
  • Page 3 ________ Package Contents Sleek Signal Outside Mast Extensions, Power Cradle Booster Antenna Side-Exit Adapter Supply 3-Way Antenna Antenna Thread Lock Cable Cradle Mount Spring Packets Adapter Mount DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 4 NOTE: Mount at least 12 inches from any other antennas. Free of obstructions. NOTE: If the vehicle is using two CB antennas with co-phase wiring, removing one antenna will cause reduced performance of the remaining CB antenna. Typical Antenna Mounting Points CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 5 Antenna NOTE: When adding the side exit adapter Side Exit Adapter cable hold the antenna vertically and screw the adapter from the bottom up. This reduces cable twisting. DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 6 ______ (STEP 1 cont.) 13” Mast 13” Mast 13” Mast 18” Mast Antenna Spring (can be used optionally) Side Exit Adapter Antenna Spring (should not be used on this length) CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 7 Mast Side Exit Adapter 3-Way Antenna Mount The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. mirror rail or bird perch mount DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 8 & plastic Antenna washer Spring Mount disc washer with lip in the DOWN position Add thread lock on all threads with tube provided Fasten nut with lip in the UP position CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 9 ANTENNA the booster). NOTE: The “hook” side of the Velcro ® (already on the booster) can be used to attach to the carpet of many vehicles. Velcro ® bottom side of Booster DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 10 Place booster behind seats or in back area of vehicle and route the 15 foot fixed cable to the front of the vehicle where the cradle will be located. Connect booster cable to sleek cradle cable. snap-in connectors Sleek Cradle CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 11 If your vehicle always has power going to this port, you may want to unplug this when you’re not driving so the booster does not drain your battery. Only 12V ports are supported. cable from Power Supply DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 12 NOTE: A magnetic mount is provided which provides a versatile, safe and functional smartphone solution. IMPORTANT: The FCC requires to never use the cell phone in the cradle next to your ear. CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 13: Troubleshooting

    Check/secure power connections to the CLA, booster, and cradle. If light shuts off, remove from vehicle port and plug back in to reset the system. For any questions or assistance contact our weBoost Customer Support Team (1-866-294-1660). Dropped Calls If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD Voice in your phone’s settings.
  • Page 14: Safety Guidelines

    ______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Any antenna used with this device must be located at least 8 inches from all persons. FCC requires to never use the cell phone in the cradle next to your ear.
  • Page 15: Antenna Kit Options

    ______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Drive Sleek OTR. This radio transmitter 4726A-460035 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated.
  • Page 16: Specifications

    (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 17: Year Warranty

    2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material...
  • Page 18 Notes support.weboost.com 866.294.1660 NEED HELP? CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR...
  • Page 19 Notes support.weboost.com 866.294.1660 NEED HELP? DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS...
  • Page 20 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000344_Rev01_02.12.21...
