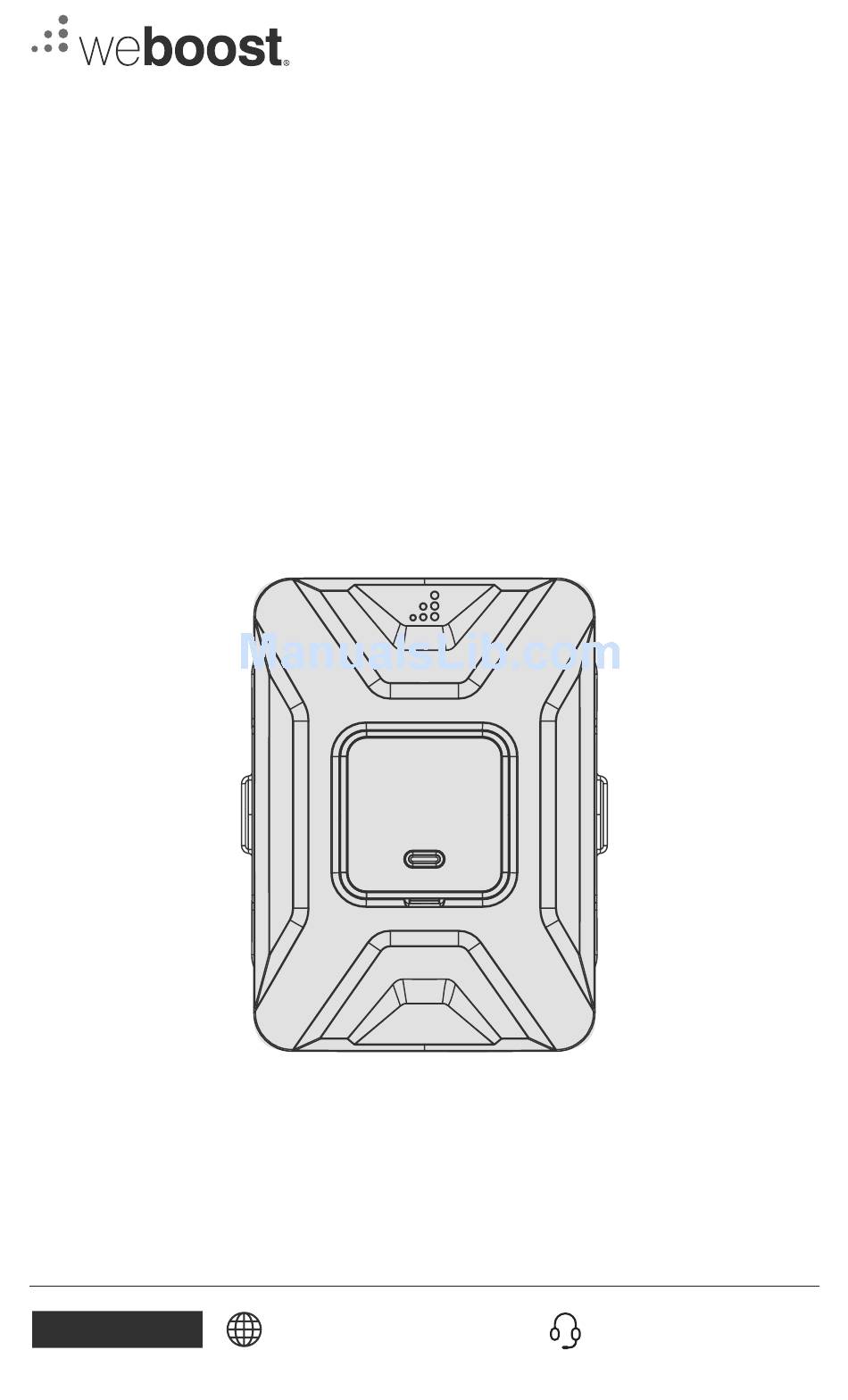

Page 1: User Manual
A WILSON ELECTRONICS, LLC COMPANY DRIVE 4G-X OTR Mobile Cellular Signal Booster Kit Truck Edition User Manual support.weboost.com 866.294.1660 NEED HELP? -
Page 2: Table Of Contents
_____ Index Package Content Quick Installation Signal Booster Specifications Frequently Asked Questions Safety Guidelines Light Patterns Troubleshooting Mobile Antenna Kit Options Warranty... -
Page 3: Package Content

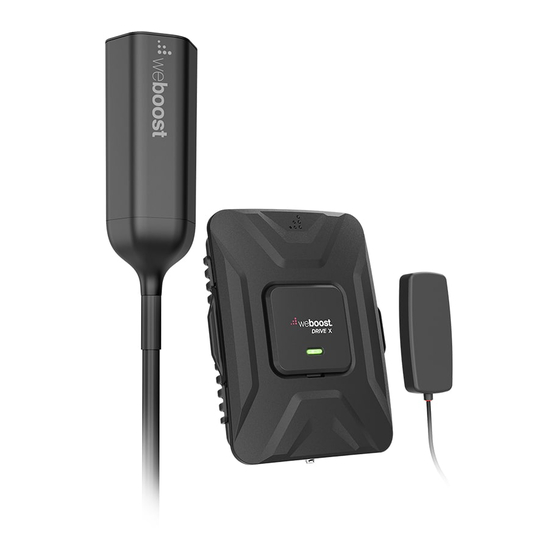

________ Package Content Installation Instructions for the Following weBoost Signal Booster: DRIVE 4G-X™ OTR 700 MHz Band 12/17 & 13 800 / 1900 (Excluding B25) AWS (1700 / 2100) Drive 4G-X 4G-OTR Slim Low Mounting DC Power Signal Antenna &... -
Page 4: Quick Installation
________ Quick Installation Remove Remove 4G-OTR ANTENNA INSTALLATION Select a location on one of the mirror rails to mount Remove the 4G-OTR Antenna that is: Remove • At least 12 inches from any other antennas. • Free of obstructions. 4G-OTR •... - Page 5 DC power adapter on. If your Drive 4G-X is working correctly, the light will be green. NOTE: If light is not green on your weBoost booster, please refer to the troubleshooting section on page 8 or contact customer support at 1-866-294-1660 or email at support@weboost.com.
-
Page 6: Signal Booster Specifications
______ Specifications Drive 4G-X OTR Product Number U470010 Model Number 460010 FCC ID: PWO460021 4726A-460021 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz 700 MHz 700 MHz 800 MHz... -
Page 7: Frequently Asked Questions
What hours can I contact customer support? Customer Support can be reached 7 days a week by calling 866.294.1660, or through our support site at support.weboost.com Why do I need to create distance between the booster and the antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs. -
Page 8: Safety Guidelines
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 9: Light Patterns
A combination of vertical and horizontal separation distance also works to prevent oscillation. 5. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (866.294.1660). CELL PHONE SIGNAL BOOSTER... -
Page 10: Mobile Antenna Kit Options
(TROUBLESHOOTING cont.) Light Off If the Drive 4G-X Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. -
Page 11: Warranty
Warranty 2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 12 3301 East Deseret Drive, St. George, UT www.weboost.com | support.weboost.com Copyright © 2015 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA 111923_Rev 02_05.13.16...
