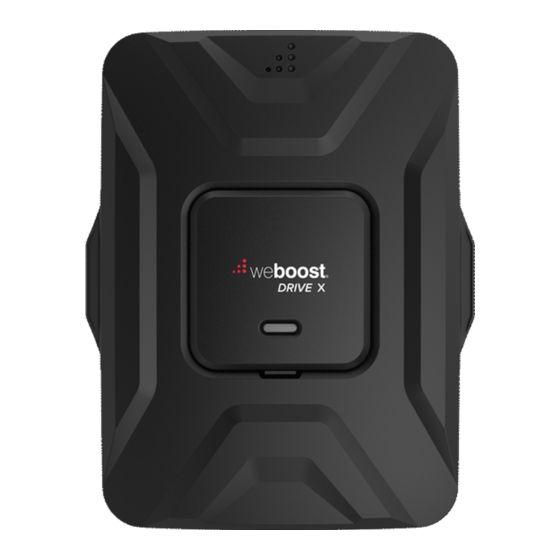

- Page 1 A WILSON ELECTRONICS BRAND DRIVE X OTR FLEET Cell Signal Booster For Fleet Trucks Installation Guide support.weboost.com 866.294.1660 NEED HELP?
- Page 2 ______ Index Package Contents Select Mounting Location STEP 1: Assemble The Antenna STEP 2: Mount Outside Antenna STEP 3: Mount Inside Antenna STEP 4: Wiring The Power Supply To Vehicle Battery STEP 5: Connect Coax Cables To Booster STEP 6: Connect Power Supply To Booster STEP 7: Light Patterns...
- Page 3 ________ Package Contents Booster Outside Inside Mast Extensions Power & Bracket Antenna Antenna & Side Exit Adapter Supply 3-Way Antenna Antenna Thread Cable Mount Spring Lock Adapter DRIVE X OTR FLEET CELL SIGNAL BOOSTER...
- Page 4 NOTE: Mount at least 12 inches from any other antennas. Free of obstructions. NOTE: If the vehicle is using two CB antennas co-phase wiring, removing one antenna will cause reduced performance of the remaining CB antenna. Typical Antenna Mounting Points CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
-
Page 5: Step 2: Assemble The Antenna
Antenna Side Exit Adapter. NOTE: When adding the side exit adapter Side Exit Adapter cable hold the antenna vertically and screw the adapter from the bottom up. This reduces cable twisting. DRIVE X OTR FLEET CELL SIGNAL BOOSTER... - Page 6 45” Extension Antenna Spring (can be used optionally) run cable through Mast Extension Antenna Spring Mast Extension (can be used optionally) (Antenna Spring should not be used Side Exit Adapter on this length) CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
-
Page 7: Step 3: Mount Outside Antenna
3-Way Antenna Mount The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. mirror rail or bird perch mount DRIVE X OTR FLEET CELL SIGNAL BOOSTER... - Page 8 Spring Remove bolt & plastic washer Spring Mount disc washer with lip in the DOWN position Add thread lock on all threads with tube provided Fasten nut with lip in the UP position CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
-
Page 9: Step 4: Mount Inside Antenna
18 inches but no more than 36 inches from where the cellular device will be used. Use the Velcro® adhesive strip/adhesive strip provided and attach to desired location. In-Vehicle Antenna Velcro® In-Vehicle Velcro® Antenna DRIVE X OTR FLEET CELL SIGNAL BOOSTER... - Page 10 IMPORTANT: Power supply must be wired to fuse. CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
- Page 11 NOTE: Bracket can be used to fasten booster in a specific location if desired. from Outside Antenna Connect the cable from the In-Vehicle Antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna DRIVE X OTR FLEET CELL SIGNAL BOOSTER...
- Page 12 Connect the power supply cord to the end of the Drive X labeled “Power.” NOTE: Do NOT connect the power to the Signal Booster until you have connected both cables from the Inside and Outside Antennas. Power Supply CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
-
Page 13: Light Patterns
NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. support.weboost.com 866.294.1660 NEED HELP? DRIVE X OTR FLEET CELL SIGNAL BOOSTER... -
Page 14: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than perpendicular separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (866.294.1660). FREQUENTLY ASKED QUESTIONS What hours can I contact customer support? Customer Support can be reached monday thru friday by calling 866.294.1660, or... -
Page 15: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside panel and dome antennas must have at least 6’ of separation distance from all active users, and low profile antennas must have at least 1.5’ separation distance from all active users. -
Page 16: Specifications
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. CELL SIGNAL BOOSTER DRIVE X OTR FLEET... -
Page 17: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... -
Page 18: Need Help
Notes support.weboost.com 866.294.1660 NEED HELP? CELL SIGNAL BOOSTER DRIVE X OTR FLEET... - Page 19 Notes support.weboost.com 866.294.1660 NEED HELP? DRIVE X OTR FLEET CELL SIGNAL BOOSTER...
- Page 20 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2020 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000262_Rev01_02.26.20...
