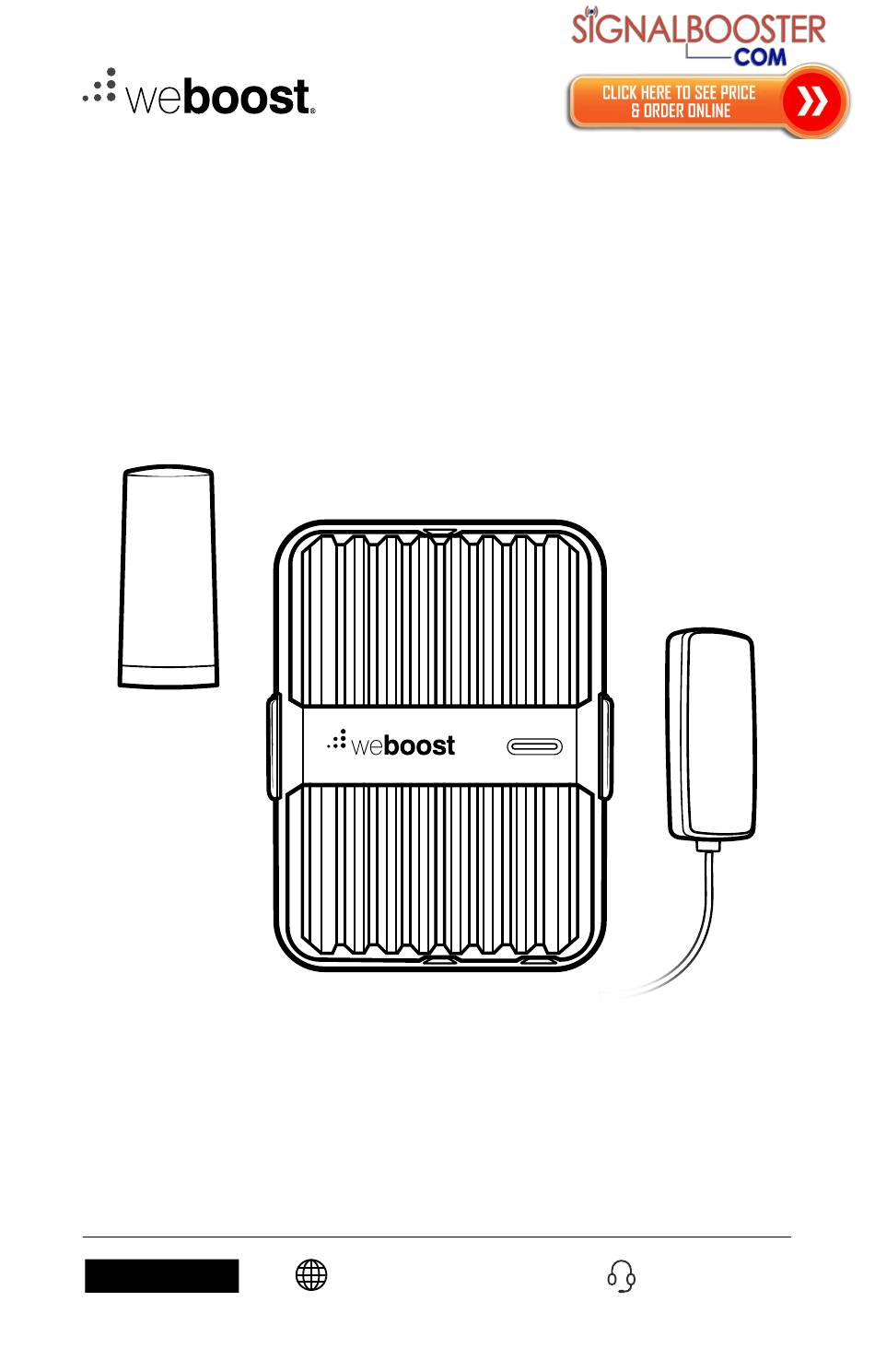

- Page 1 A WILSON ELECTRONICS BRAND DRIVE REACH FLEET PROFESSIONAL VEHICLE CELL SIGNAL BOOSTER KIT ® Installation Guide SignalBooster.com 855.846.2654 NEED HELP?
- Page 2 ______ Index Package Contents Drill Cable Entry Hole Into Your Vehicle STEP 1-A: Insert & Route Cable STEP 1-B: Mount NMO Outside Antenna STEP 1-C: Mount 4G In-Vehicle Antenna STEP 2: Wiring The Power Supply To The Vehicle Battery STEP 3: Connect Coax Cables To Booster STEP 4: Connect Power Supply To Booster...
-
Page 3: Package Contents
________ Package Contents Outside NMO 4G In-Vehicle Power Drive Reach Antenna Antenna + Supply Booster Connector & Bracket Mounting Cable Optional Antenna Protective Tape O-Ring Lubricant Extension Cable For Installation Packet DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 4: Step 1-A: Drill Cable Entry Hole Into Your Vehicle
Good NMO Outside 6 in. away from windows Antenna Placement (including sunroofs) PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET... - Page 5 Place the protective tape on the vehicle surface vehicle in the desired location. protective tape Using a 3/4” hole saw, drill a hole in the center of the 3/4” bit protective tape. protective tape DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT...
-
Page 6: Step 1-B: Insert & Route Cable
For a professional installation, we recommend routing the cable under the headliner and down through the side trim panel to the desired booster location on the fl oor of the vehicle. side trim panel PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET... -
Page 7: Step 1-C: Mount Nmo Outside Antenna
NOTE: DO NOT apply silicone grease to the antenna pin contact surface. screw on NMO Antenna apply silicone grease hand tighten and make sure gasket is touching vehicle surface DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 8: Step 2: Mount 4G In-Vehicle Antenna
Velcro® adhesive strip or the 2-sided adhesive strip provided and attach to the side of the antenna labeled “MOUNTING SIDE”. Then mount to the desired location. In-Vehicle Antenna Seat Mount In-Vehicle Antenna Dash Mount PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET... -
Page 9: Step 3: Wiring The Power Supply To The Vehicle Battery
. DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 10: Step 4: Connect Coax Cables To Booster
The Velcro® strip on the bottom of the bracket can also be used to keep booster from sliding around. Drive Reach from Outside NMO Antenna bracket Connect the cable from the 4G In-Vehicle Antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET... -
Page 11: Step 5: Connect Power Supply To Booster
NOTE: Do NOT connect the power to the Signal Booster until you have connected both the Inside and Outside Antennas. from Outside Antenna from Inside Antenna Power Supply DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 12: Light Patterns
NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. 855.846.2654 NEED HELP? SignalBooster.com PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET... -
Page 13: Troubleshooting
The best way to keep these spheres of signal from overlapping is to maximize separation between the inside and outside antennas. DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 14: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside antennas must have at least 1.5’ separation distance from all active users. Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. -
Page 15: Specifi Cations
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. 855.846.2654 SignalBooster.com... - Page 16 2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material...
