Summary of Contents for weBoost DRIVE 4G-X RV
-

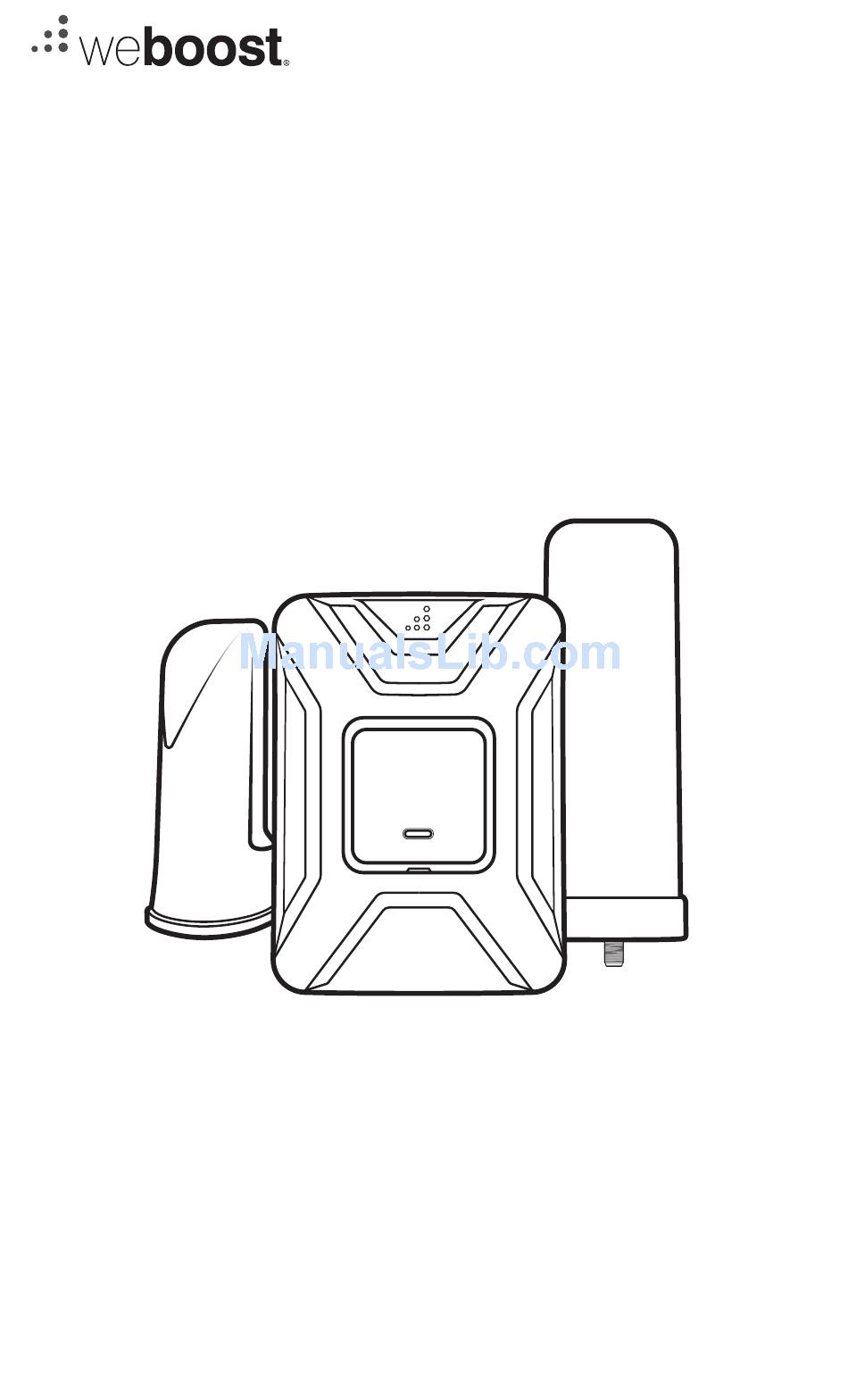

Page 1: User Manual

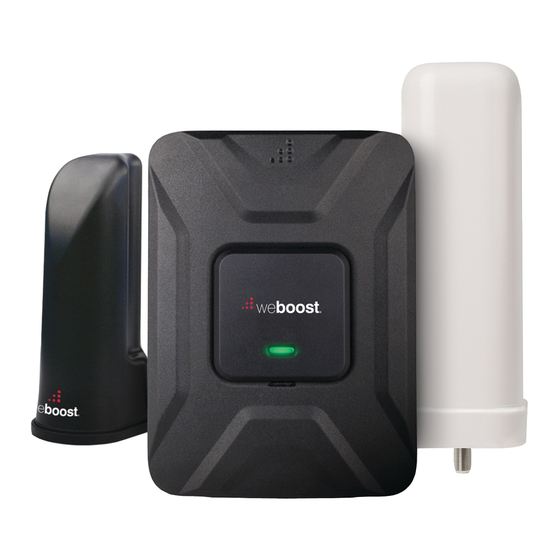

A WILSON ELECTRONICS BRAND DRIVE 4G-X RV RV Cellular Signal Booster User Manual... -
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Antenna STEP 1: Drill Entry Hole STEP 2: Connect Cable To Outside Antenna STEP 3: Booster Location STEP 4: Connect Outside Antenna Cable To Booster STEP 5: Mount Cable Entry Cover STEP 6: Connect Inside Antenna Cable To Booster STEP 7: Power Up &... -
Page 3: Package Contents
THE DRIVE 4G-X SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER SOURCES DO NOT AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF. THIS COULD RESULT IN DISCHARGING THE VEHICLES BATTERY IN ONE TO TWO DAYS. DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER... -
Page 4: Step 1: Mount Outside Antenna
NOTE: Keep in mind to stay below the max height limit allowed by law, which varies from state to state (generally 14’ in western states and 13’6” in eastern states). CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... - Page 5 Drill a 1 inch hole toward the top of the RV that goes into the desired location. Do not put this hole on the top of the RV. WARNING: Be sure to stay clear of any power, pipes, etc. that may be damaged. 1 inch bit DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
-
Page 6: Step 3: Connect Cable To Outside Antenna
Outside Antenna Connect the RG-6 cable to the outside antenna and route through the rubber ring of the cable entry cover, then into the newly drilled hole rubber ring of the cable entry cover CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... -
Page 7: Step 4: Booster Location
Snap booster back into bracket. NOTE: We recommend in a cabinet near a power source. Be sure it’s in a location that the 20’ RG-6 cable can reach. good booster location DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER... -
Page 8: Step 5: Connect Outside Antenna Cable To Booster
______ Step 5: Connect Outside Antenna Cable To Booster Fasten the end with smaller SMA connection to the ‘Outside Antenna’ port on the booster. be sure to hand tighten only CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... -
Page 9: Step 6: Mount Cable Entry Cover
RV. We strongly recommend using an RTV sealant from the cable inside to prevent moisture, insects, & other mounts undesired things from entering the RV. DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER... -
Page 10: Step 7: Connect Inside Antenna Cable To Booster
Connect the 13’ RG-58 cable to the ‘Inside Antenna’ port on the booster. Route the cable where you want to receive the boosted signal. Connect the inside antenna to the cable. Inside Antenna best when used within 4-10 feet of cellular device CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... - Page 11 ______ Step 8: Power Up The Booster Connect power cable to booster, then into 110V Wall plug and enjoy! NOTE: We’ve included a fused 12V hardwire power supply option as well. DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
- Page 12 When system is set-up, you can easily revert back to the “bar display” by dialing *3001#12345#* press Call, press the signal strength at the top left of screen to toggle between numbers and bars, then press the Home button to exit Field Test mode. CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
- Page 13 -110 -111 -119 -120 3G/1x -100 -101 -109 -110 4G/LTE -105 -106 -110 -111 -119 -120 Did you know a signal increase of just 3dB is 2 times the power and signal amplification! DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER...
-
Page 14: Light Patterns
If the Drive 4G-X Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... -
Page 15: Troubleshooting
If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (866.294.1660). FREQUENTLY ASKED QUESTIONS Why do I need to create distance between the booster and the antenna? Antennas connected to a booster create spheres of signal. - Page 16 3 - Wall Panel Antennas 20’ RG 11 cable 75’ LMR400 Cable 3 - 2-Way 50 Ohm Splitters Kit 311203-40020 20’ RG174 Omni-Directional antenna Kit 309902-75F 20’ LMR400 Cable 2 - Wall Panel Antennas CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV...
-
Page 17: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range. -
Page 18: Specifications
Band 4 Band 2 -1.2 -0.4 -0.6 -1.6 -3.2 -2.4 -2.6 -1.6 -3.5 -4.7 -4.0 -4.2 -3.2 -5.1 5 dB nominal Noise Figure Isolation > 90 dB Power Requirements 6 V 2 A CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV... - Page 19 This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
-
Page 20: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material...
