- Page 1 A WILSON ELECTRONICS BRAND DRIVE REACH Vehicle Signal Booster Kit ® Installation Guide 855.846.2654 SignalBooster.com NEED HELP?
-
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Magnetic Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Coax Cables To Booster STEP 3: Connect Power Supply To Booster STEP 4: Plug Power Adapter Into Vehicle’s Power Supply STEP 5: Booster Light Patterns Troubleshooting Safety Guidelines Specifi... -

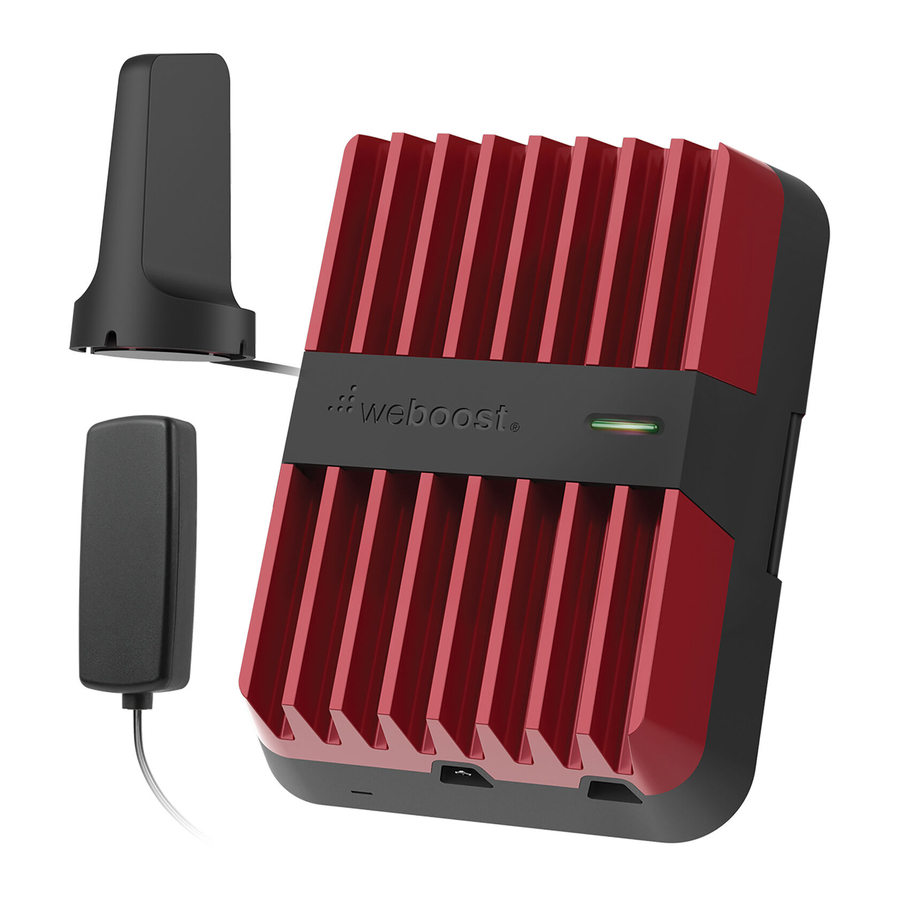

Page 3: Package Contents

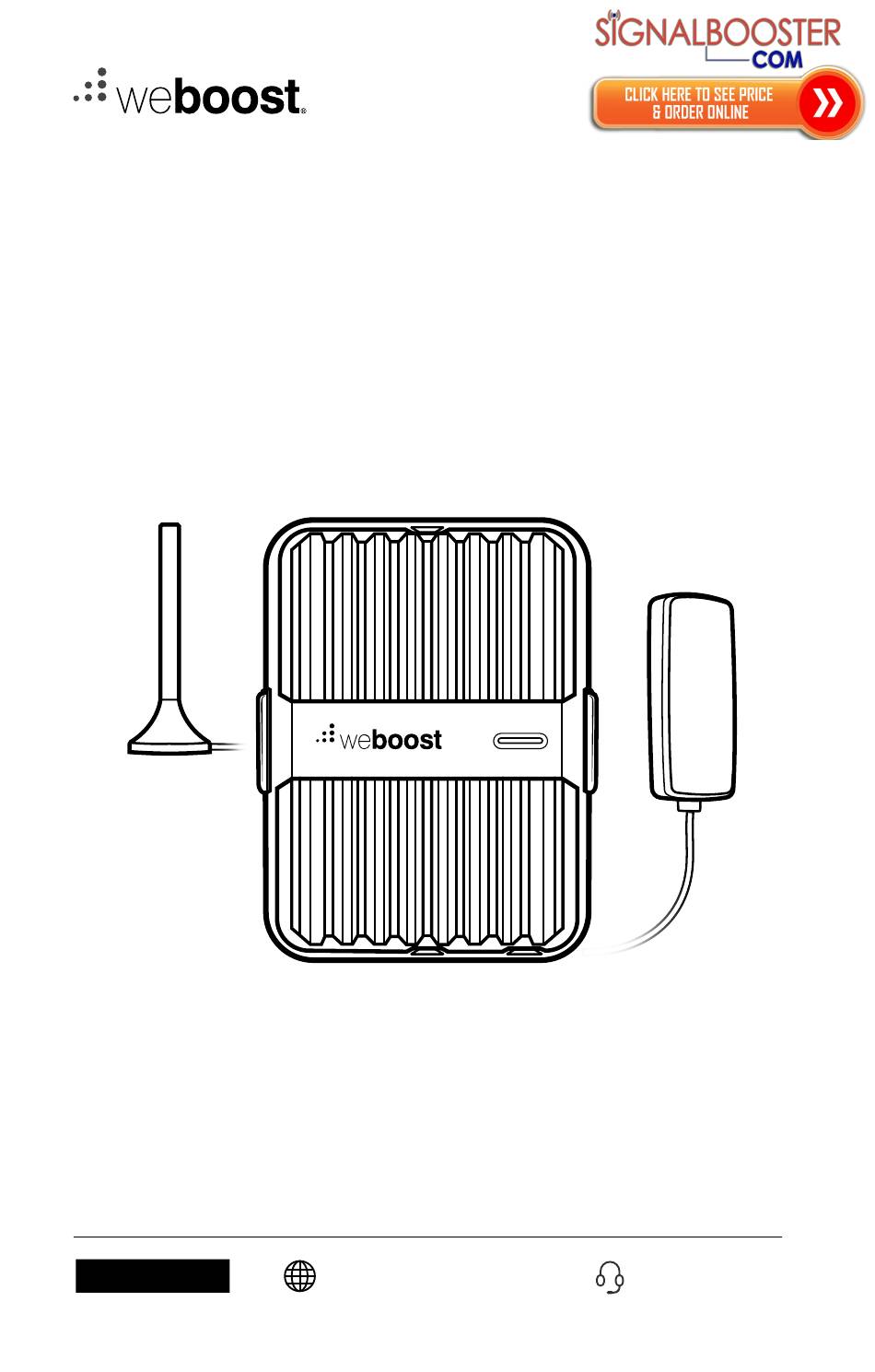

________ Package Contents Outside Inside Power Booster Antenna Antenna Supply & Bracket Optional: Adhesive disk for aluminum vehicles DRIVE REACH VEHICLE SIGNAL BOOSTER... -
Page 4: Step 1: Mount Outside Magnetic Antenna
Mount the outside antenna by placing on top of vehicle. 12 in. away from windows (including sunroofs) NOTE: For aluminum roofs, use the included adhesive disk to secure outside antenna in place. WORKS WITH ALL VEHICLES VEHICLE SIGNAL BOOSTER DRIVE REACH... - Page 5 Truck: Cable routed into side door. NOTE: The cable is strong enough that it may be routed under weather stripping and shut in most vehicle doors without damaging the cable. DRIVE REACH VEHICLE SIGNAL BOOSTER...
-
Page 6: Step 2: Mount Inside Antenna
2-sided adhesive strip provided and attach to the side of the antenna labeled “MOUNTING SIDE”. Then mount to desired location. WARNING: DO NOT MOUNT WHERE AIRBAGS WILL DEPLOY. In-Vehicle Antenna Seat Mount In-Vehicle Antenna Dash Mount VEHICLE SIGNAL BOOSTER DRIVE REACH... -
Page 7: Step 3: Connect Coax Cables To Booster
To Booster Connect the cable from the Mini-Mag Mount Antenna to the port labeled “Outside Antenna” on the Drive Reach booster. NOTE: Bracket can be used to fasten booster in a specifi c location if desired. The Velcro® strip on the bottom of the bracket can also be used to keep booster from sliding around. -
Page 8: Step 4: Connect Power Supply To Booster
Connect the power supply cord to the end of the booster, labeled “ .” NOTE: Do NOT connect the power to the Signal Booster until you have connected both the Inside and Outside Antennas. from Outside Antenna from Inside Antenna Power Supply VEHICLE SIGNAL BOOSTER DRIVE REACH... -
Page 9: Step 5: Plug Power Adapter Into Vehicle's Power Supply
) and you will be parking for extended periods of time (more than a day), we recommend you turn the booster off by pushing the LED light, which is also a button. This will prevent the Drive Reach from draining the battery in your vehicle. -
Page 10: Booster Light Patterns
Refer to Troubleshooting section. Light Off If the Drive Reach Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. -
Page 11: Troubleshooting
The best way to keep these spheres of signal from overlapping is to maximize separation between the inside and outside antennas. DRIVE REACH VEHICLE SIGNAL BOOSTER... -
Page 12: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside antennas must have at least 1.5’ separation distance from all active users. Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. -
Page 13: Specifi Cations
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. DRIVE REACH VEHICLE SIGNAL BOOSTER... -
Page 14: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 15 ______ Antenna Kit Options The following accessories are certifi ed by the FCC to be used with the Drive Reach. Mobile Outside Antenna Kit Options Mobile Inside Antenna Kit Options Kit 304415 Kit 314419 Trucker Antenna w/15’ RG-58 Low Profi le Antenna w/10’ LMR-100 Kit 314418 Mini-Mag Mount w/10’...
