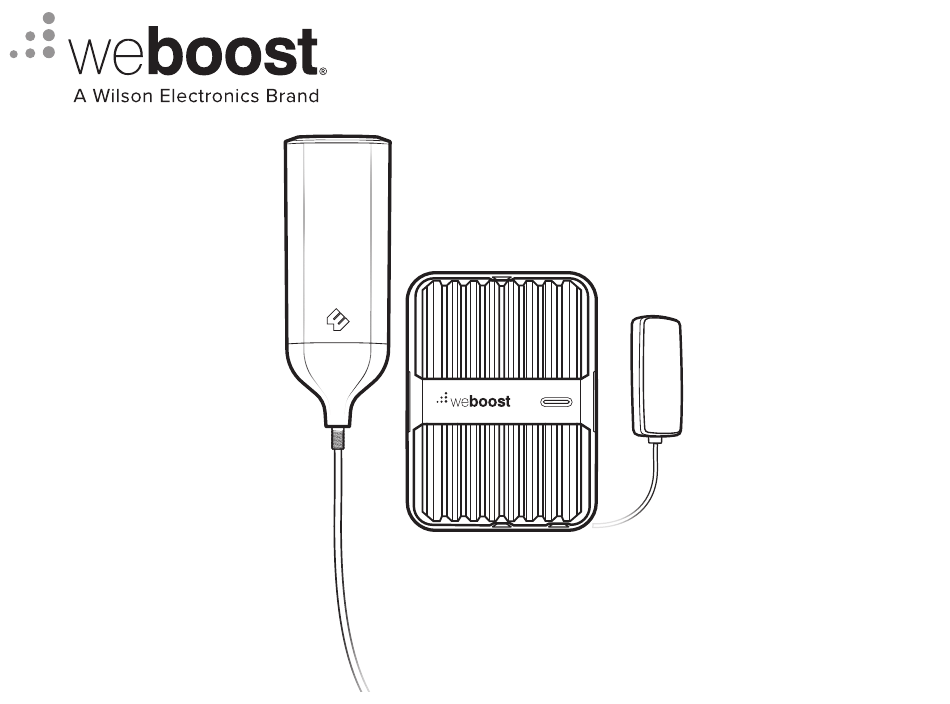

- Page 1 Installation Guide ® Drive Reach OTR Cell Signal Booster...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 STEP 1 Select Mounting Location &... -
Page 3: Package Contents
Package Contents Drive Reach Outside Inside Power 13 in . & 18 in . Signal Booster Antenna Antenna Supply Mast Extensions, & Bracket Side-Exit Adapter, Spring, 3-Way Mount & Thread Lock Packs... -
Page 4: Step 1 Select Mounting Location & Assemble The Outside Antenna
STEP 1 Select Mounting Location & Assemble the Outside Antenna Outside Antenna Once you have determined the best location for the Outside Antenna, insert 13 in. 13 in. 13 in. cable through Mast Extension(s) then mast mast mast through Side Exit Adapter . run cable cable from through Mast... - Page 5 (STEP 1 cont .) Use Thread Locker (provided) to thread Outside Antenna points and screw into place . NOTE: Be sure the Outside Antenna is the correct height before applying Thread Locker . NOTE: When adding the Side Exit Adapter hold the Outside Antenna vertically and mast add Thread...
-
Page 6: Step 2 Mounting The Outside Antenna
STEP 2 Mounting the Outside Antenna Mast Extension If the vehicle does not have built-in mounting points, a 3-Way Mount is included that will work on vehicles with mirror rails . Side Exit NOTE: The cable is strong enough that Adapter it may be shut in most vehicle doors add Thread... - Page 7 (STEP 2 cont .) Mast Extension If installing with the Spring, disassemble Side Exit the 3-Way Mount and use disc washer Adapter and nut (provided) to mount the Outside Antenna with Spring as shown . add Thread Locker Spring Remove nut & shakeproof washer add Thread Locker...
-
Page 8: Step 3 Mounting The Inside Antenna
STEP 3 Mounting the Inside Antenna Identify a place to mount the Inside Antenna, either on the side of the seat or on the dash and mount . The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used . -
Page 9: Step 4 Connect Coax Cables To Booster
STEP 4 Connect Coax Cables to Booster Connect the cable from the Outside Antenna from Outside Antenna to the port labeled “Outside Antenna” on the booster and connect the cable from the Inside Antenna to the port labeled “Inside Antenna” on the booster . -
Page 10: Step 5 Connect Power Supply To Booster
STEP 5 Connect Power Supply to Booster Connect the 12V Power Supply Cord to the end of the Booster, labeled "12V DC" then plug the power adapter into vehicle’s 12V DC Power Supply . Push switch to ON position . If your Drive Reach is working correctly, the light on the Booster will be green . -
Page 11: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your Drive Reach Booster is functioning properly and there are no issues with installation . SOLID RED Band has shutoff . This is due to a feedback loop condition called oscillation . This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower . - Page 12 (Booster Light Patterns cont .) NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply . After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster .
-
Page 13: Troubleshooting
. Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation . If you are having any difficulties while testing or installing your Booster, contact our weBoost Customer Support team for assistance (866 .294 . 1 660) . - Page 14 . The best way to keep these spheres of signal from overlapping is to maximize separation between the inside and outside antennas . 1 .866 .294 . 1 660 www .weboost .com support@weboost .com...
-
Page 15: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package . Use of a non-weBoost product may damage your equipment . Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone . - Page 16 (Safety Guidelines cont .) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: T-Mobile/Sprint/MetroPCS: https://www . t -mobile .com/support/coverage/register-a-signal-booster Verizon Wireless: http://www . v erizonwireless .com/wcms/consumer/register-signal-booster .html AT&T: https://securec45 .securewebsession .com/attsignalbooster .com/ U.S. Cellular: http://www .uscellular .com/uscellular/support/fcc-booster-registration .jsp...
- Page 17 Antenna Info The following accessories are certified by the FCC to be used with the Drive Reach Booster . This radio transmitter 4726A-460061 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated . Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device .
-
Page 18: Specifications
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to... -
Page 19: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate . However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use . - Page 20 866 .294 . 1 660 www .weboost .com support@weboost .com Copyright © 2020 weBoost . All rights reserved . weBoost products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents GDE000368_Rev01_01 .08 .21 NOT AFFILIATED WITH WILSON ANTENNA...
