Msn - RTS TIF-PRO2 Technical Manual

TIF-PRO2
–
–
–
–
–
10.8.6

MSN

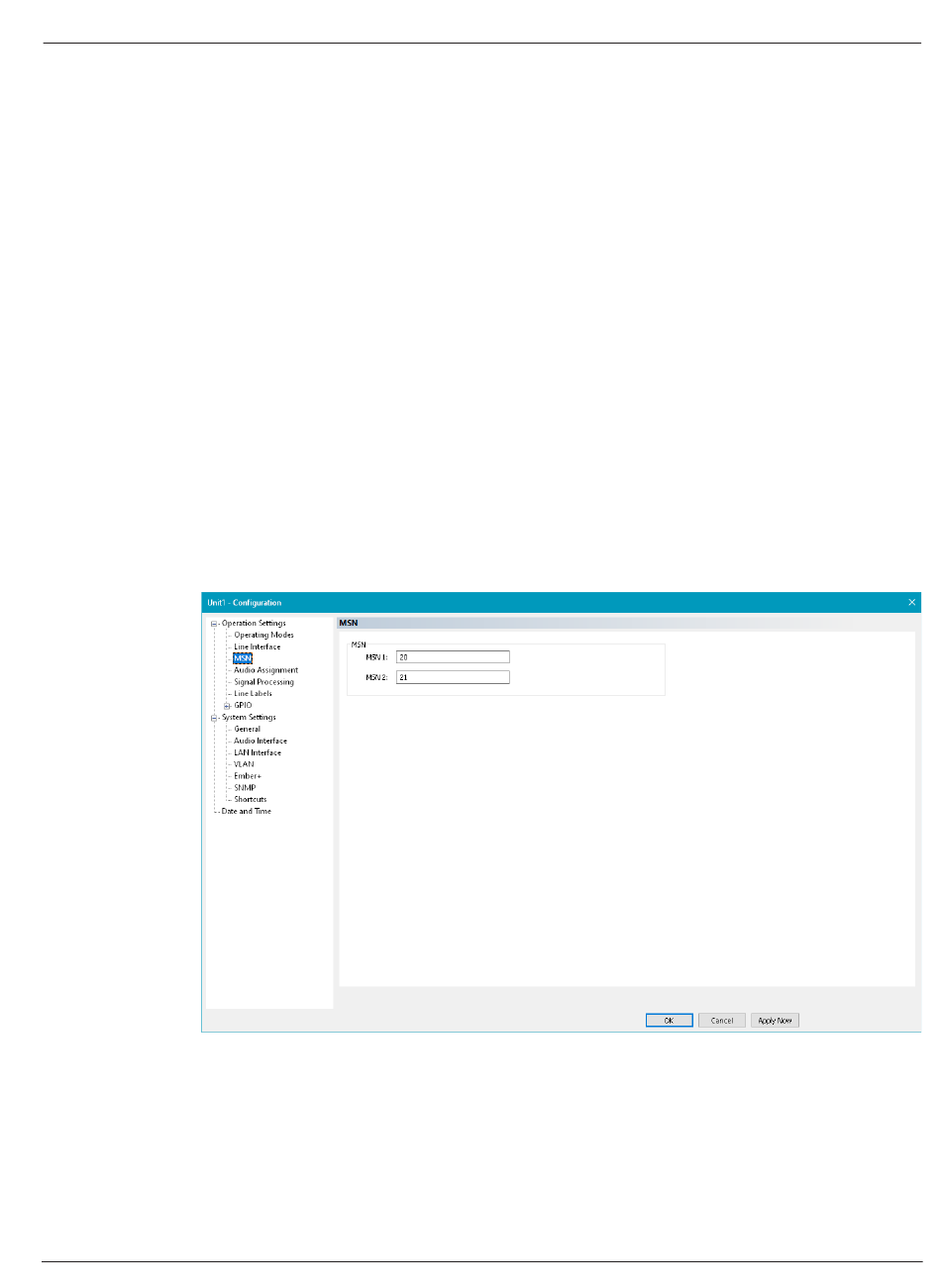

Figure 10.33: Configuration - MSN
The MSN page is displayed only in ISDN mode.
Depending on the PBX you may need to enter an MSN (Multiple Subscriber Number) for each
ISDN channel connected to the RTS TIF-PRO2. The MSN may be the internal telephone
number (extension). For more information, refer to the PBX manual or the provider's
documentation.
Bosch Security Systems, LLC
BUSY / DROP Tone: The RTS TIF-PRO2 can detect if the remote station has hung up. It is
monitoring the audio signal for a sequence of tones and pauses with defined duration.
The sequence might be different for each PBX or provider.
– Tone Duration: Specify a custom tone duration.
– Pause Duration: Specify a custom pause duration.
– Measure Values: Click the button to measure the actual sequence and set it as
custom tone and pause duration. To measure the values correctly make sure the
drop tone can be heard on the first telephone line connected to the PBX or the
public network, respectively.
Enable Expert Settings: The expert settings help to improve the audio signal on
telephone lines with difficult line characteristics.
High Pass Filter Cut-Off Frequency - Receive: Sounds below this frequency are filtered
out (e.g., low frequency hum).
POTS Line Level Adjustment
– Receive: Increase the value to amplify the audio signal coming in from the telephone
line. Decrease the value if the audio is distorted.
– Transmit: Increase the value to send a louder signal. Decrease the value if the audio
signal sounds distorted at the remote station or if there is a loud echo signal coming
back.
Default Settings: Resets all values on the page to factory settings.
