INSTALLATION MANUAL

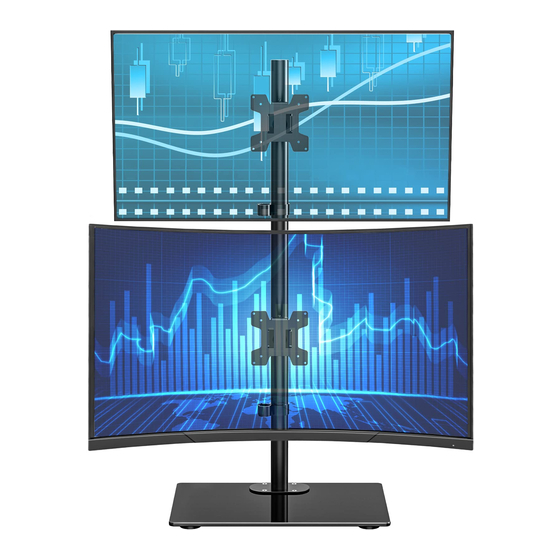

Dual Monitor Desk Stand
GMF002S
Supplied Parts List
Upper Pole
A (x1)
Anti-skid Pad
M5x16 Bolt
H (x1)
I (x4)
1
Tear off the protective paper to attach Anti-Skid Pad F to the bottom designated position of
G
Base C as image shown.
C
www.walielectric.com
support@walielectric.com
1-844-SATTLER (18447288537)
Lower Pole
Base
B (x1)
C (x1)
M6 Nut
Wire Clip
J (x2)
K (x2)
2
Install the Pole B to the Base C using M5x16 Bolt I and corresponding Bolts E , and
tighten using the Allen Key 5mm L .
C
G
WARNING
！
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly or inappropriate use.
TIPOVER WARNING
！
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Monitor Arm
VESA Plate
D (x2)
Allen Key 3mm
Allen Key 5mm
L (x1)
B
C
I
L
B
L
I
H
H
F
Bolt
Anti-skid Pad
E (x2)
F (x4)
M (x1)
3
F
Loosen the screw on the Lower Pole B with Allen key 3mm L . Connect Lower Pole B
to Upper Pole A and tighten the screw with Allen key 3mm L to fix the two poles.
A
L
B
C
M4x12 Bolt
M-A (x4)
G (x4)
M4x30 Bolt
M-B (x4)
∅6x∅12.5x13 Spacer
M-C (x4)
B
L
B
L
A
A
L
B
B
