Summary of Contents for Wali GSDM002

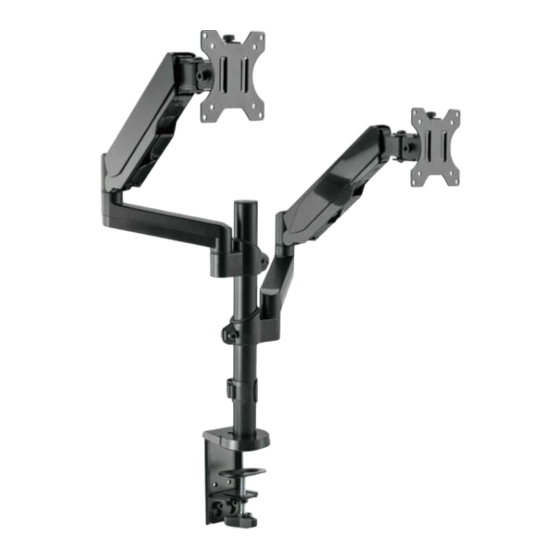

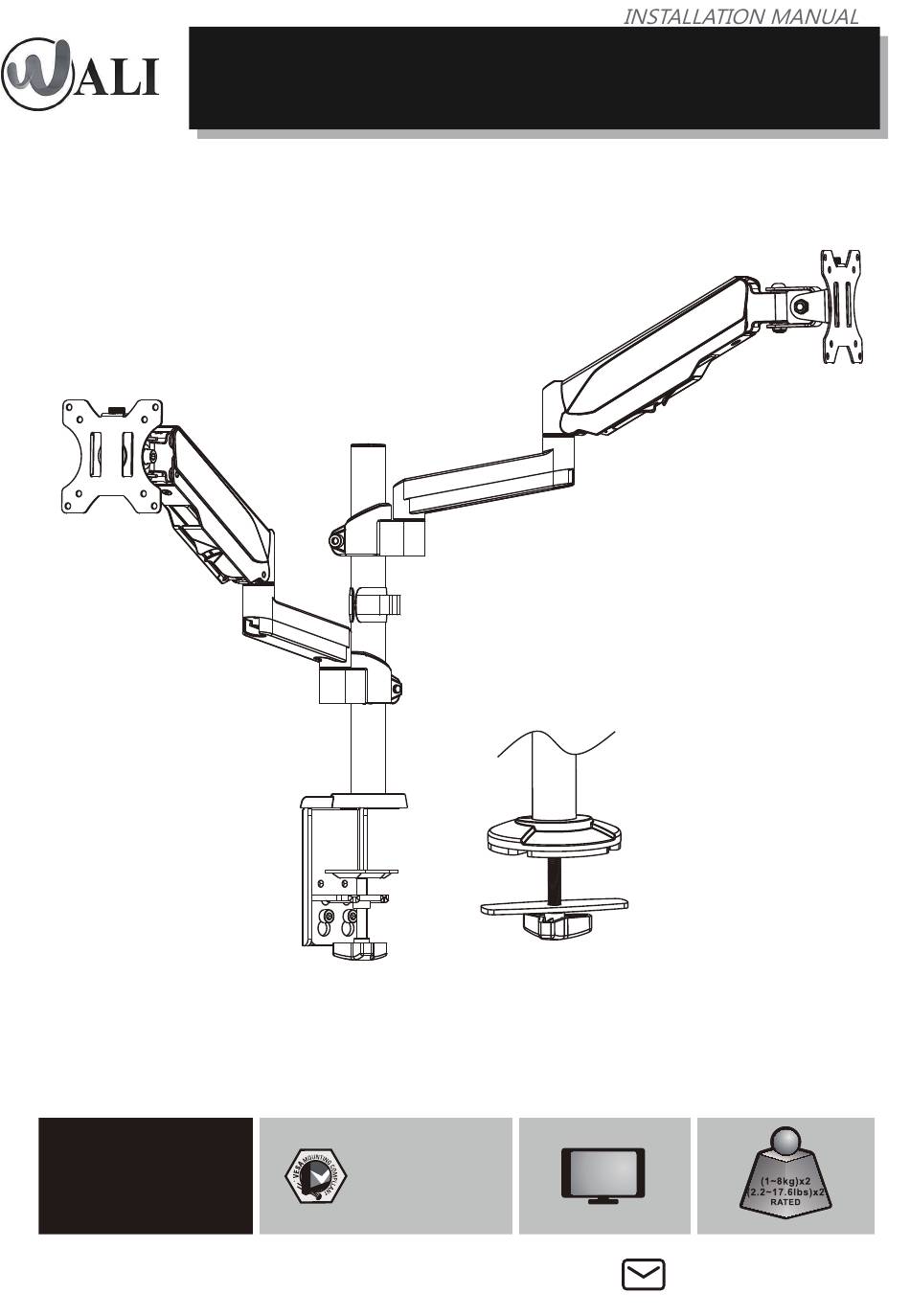

- Page 1 Dual Monitor Desk Mount GSDM002 32" 75x75/100x100 GSDM002W 1 8kg (2.2~17.6lbs ) R AT E D support@walielectric.com...
- Page 3 Supplied Parts List C-Clamp Décor Cover VESA Plate A(x2) B(x1) C(x1) D(x2) Pole Tool Holder Top Screw Pole Screw E(x1) F(x1) G(x2) H(x3) Bottom Grommet Plate Décor Cover Top Grommet Plate Allen Key 3mm I(x1) J(x1) K(1) L(x1) Allen Key 6mm M(x1) M4x12 Bolt M4x16 Bolt...
-
Page 4: Clamp Installation
Step 1 C-clamp: Up to 3.1” Grommet: Up to 1.6” Step 2 Option A Clamp Installation 1. Loosen the screws using Allen Key 6mm to adjust the preferred height range option and tighten the screws back. 2. Fix the Décor Cover onto C-Clamp... - Page 5 Step 2 Option A Clamp Installation 3. Place the Pole onto the top of C-Clamp ,connect Pole and C-Clamp from the bottom using Pole Screw and tighten with Allen Key 3mm Option B Grommet Base Installation 1. Loosen the screws on C-Clamp using Allen Key 6mm firstly, then loosen the screw to release the hand knob using Screwdriver as shown in second image.
- Page 6 Step 2 Option B Grommet Base Installation 2. Guide Décor Cover through Pole , place the Pole onto Top Grommet Plate and connect them from the bottom using Pole Screw and tighten with Allen Key 3mm 3a Existing Grommet Hole Installation If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount.
- Page 7 Step 2 Option B Grommet Base Installation Grommet Base Installation Grommet Base Installation Grommet Base Installation 3b Self-drilled Grommet Hole Installation Mark the position of the hole on your mounting surface. Drill a 3/8"(10mm) diameter hole at the marked position through the mounting surface.
- Page 8 Step 4 Step 4.1 Step 4.2 Select TV Screws Select Spacers ( if needed ) Step 4.3a Step 4.3b Select M4x12 Bolt or M5x12 Bolt Select M4x16 Bolt or M5x16 Bolt according to your TV/Monitor,connect VESA Plate according to your TV/Monitor,connect VESA Plate together with D5 Washer into the mounting together with D5 Washer...
- Page 9 Step 5 Put the assembled TV/Monitor onto the Arm A and ensure the stability, tighten the VESA plate using Top Screw G . Step 6 Pull the bottom cable slot cover to the VESA direction to detach it off the arm.
- Page 10 Step 7 Guide the cable through the cable slot and slide the cover back to arm. Step 8 Press the Arm A on horizontal level as image shown, adjust gas spring tension to your personal preference using Allen Key 6mm M , adjust the tilt tension using Allen Key 6mm A . For Heavier Monitors For Lighter Monitors...
- Page 11 Step 9 Manually swivel,tilt or rotate the angle for the best operating environment.
- Page 12 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. support@walielectric.com 1-844-SATTLER (18447288537)
