INSTALLATION INSTRUCTIONS AND USER MANUAL FOR
SLOAN
EAF-700/750
Sloan Valve Company ("Sloan"), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan's reason-
able control. Instructions for filing claims can be found in the Limited Warranty which can be obtained at www.sloan.com or by requesting a free copy by telephone at
888.756.2614. Sloan will repair or replace your defective product, or provide a refund, as your exclusive remedy. This is only a general summary of Sloan's Limited
Warranty so it is important to note that the specific terms, conditions, limitations and exclusions, including the duration of warranty coverage for your particular Sloan
product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject to applicable laws in your country, state, province or other jurisdiction—and
disputes arising under the Limited Warranty are to be resolved by binding arbitration unless you provide Sloan with an opt-out notice no later than 30 days after your
purchase date. In case of a conflict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.
PRIOR TO INSTALLATION
Prior to installing the Sloan Optima EAF-700 Series Faucets, install the
items listed below. Also, refer to rough-in illustrations.
• Lavatory/sink
• Drain Line
• Hot/Cold Water Supply Lines or Tempered Supply
IMPORTANT:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH
APPLICABLE CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
TOOLS REQUIRED FOR INSTALLATION
• 13 mm open end wrench or nut driver for faucet retainer nut
• 5/8" open end wrench for female end of flex hose

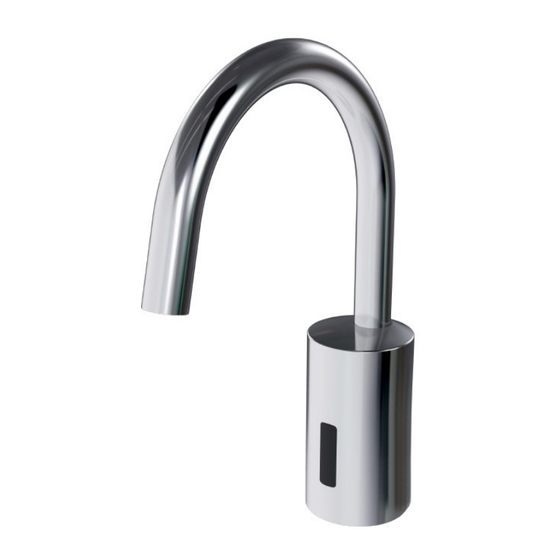

EAF-700/750 GOOSENECK SERIES FAUCETS
®
SLOAN
LIMITED WARRANTY SUMMARY
®
EAF-700/750-ISM
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT
COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS.
Trim Plates
When the EAF Faucet is installed on a sink that has three (3) hole
punchings, a trim plate should be used. Trim Plates must be specified and
ordered separately.
SFP-11 Trim Plate for 4" (102 mm) Centerset Sink
SFP-22 Trim Plate for 8" (203 mm) Centerset Sink
Code No: 0816409
Faucet Variations
-ISM
Integral Spout Temperature Mixer
-PLG
Plug-in Adapter power supply
(EAF-700)
-LT
Less Transformer/Adapter
(EAF-700 Only) (Includes EAF-44
Power Splitter)
Rev. 3 (06/23)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sloan EAF-700 Series
Summary of Contents for Sloan EAF-700 Series
- Page 1 Sloan Valve Company (“Sloan”), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan’s reason- able control. Instructions for filing claims can be found in the Limited Warranty which can be obtained at www.sloan.com or by requesting a free copy by telephone at 888.756.2614.
- Page 2 FAUCET ROUGH-IN Model EAF-700/750 -ISM 1.5 gpm (5.7 Lpm) Max. Flow Faucets with Hot/Cold Water Supply 10-1/32” (255 mm) SPOUT 24° 5-7/8” (147 mm) 3-15/16” (100 mm) 5-11/32” 1-1/4” (32 mm) (151 mm) MIN. DIA. HOLE REQUIRED O-RING 2-9/16” 2-1/4” (57 mm) (65 mm) Model EAF-700/750...
-
Page 3: Connection To Water Supply
2 - CONNECTION TO WATER SUPPLY Flush supply stops before making connections. Tighten the flex hose (with strainer in place) securely to the supply. Install strainer and flex hose onto supply stop. Open supply stop(s). 3A - EAF-700 MODELS – PLUG ADAPTER INTO RECEPTACLE ELECTRICAL CONNECTIONS FOR UP TO SIX (6) FAUCETS USING ONE (1) ADAPTER &... - Page 4 4 - START-UP Remove label from faucet sensor. Activate Faucet by holding installation instructions approximately 1-1/2” (38 mm) in front of the sensor window until red light appears, then remove instruction sheet. Faucet will run for four (4) seconds and then sensor will automatically adjust sink basin environment.
- Page 5 STEPS TO REMOVE SPOUT CASING FROM SPOUT BASE ASSEMBLY FOR ACCESS TO SOLENOID, SENSOR, AND HOT LIMIT STOP. Turn off water. Use a 2 mm hex key to Use 2.5 mm hex key to remove spout screw remove side mixer lever. (behind side mixer or cap, back-right area of spout).
- Page 6 SENSOR RANGE ADJUSTMENT FACTORY SETTING IS APPROPRIATE FOR THE MAJORITY OF APPLICATIONS AND SHOULD NOT REQUIRE RESETTING UNLESS UNDER EXTREME SITUATIONS. First enter programming mode, place Cover IR-Click (bottom half of sensor) after a few seconds, LED finger on IR-Click sensor (covering bot- flashes RED 4 times then a pause - continue holding finger over tom half of sensor about 3 seconds) until IR-Click sensor until LED flashes RED 1 to 8 times from minimum...
- Page 7 CONTINUOUS RUN AND CLEANING MODE FEATURES CONTINUOUS RUN Continuous run of water for 2 Faucet will operate normally after 2 minutes or after using the minutes. touch function once again for 2 seconds. Enter Programming Mode by covering bottom half of sensor for about three (3) seconds until ORANGE LED lights, then remove finger.
-
Page 8: Operation
OPERATION As the user’s hands enter the beam’s effective range, the beam is reflected back into the sensor receiver and activates the solenoid valve allowing water to flow from the faucet. Water will flow until the hands of the user are removed or until the faucet reaches its automatic time out limit setting. -
Page 9: Troubleshooting
A. Battery low (battery operated models). Adjust supply stops. Replace battery (refer to Battery Replacement section of guide). B. Power failure. When assistance is required, please contact Sloan Technical Support at: Check power supply. 1-888-SLOAN-14 (1-888-756-2614) CARE AND CLEANING DO NOT USE abrasive or chemical cleaners (including chlorine bleach) to clean faucets that may dull the luster and attack the chrome or special decorative finishes. -
Page 10: Parts List
The information contained in this document is subject to change without notice. SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60133 Phone: 1-800-9-VALVE-9 (1-800-982-5839) • Fax: 1-800-447-8329 • www.sloan.com Copyright © 2023 SLOAN VALVE COMPANY...
