Sloan EFP-39-A Installation Instructions Manual

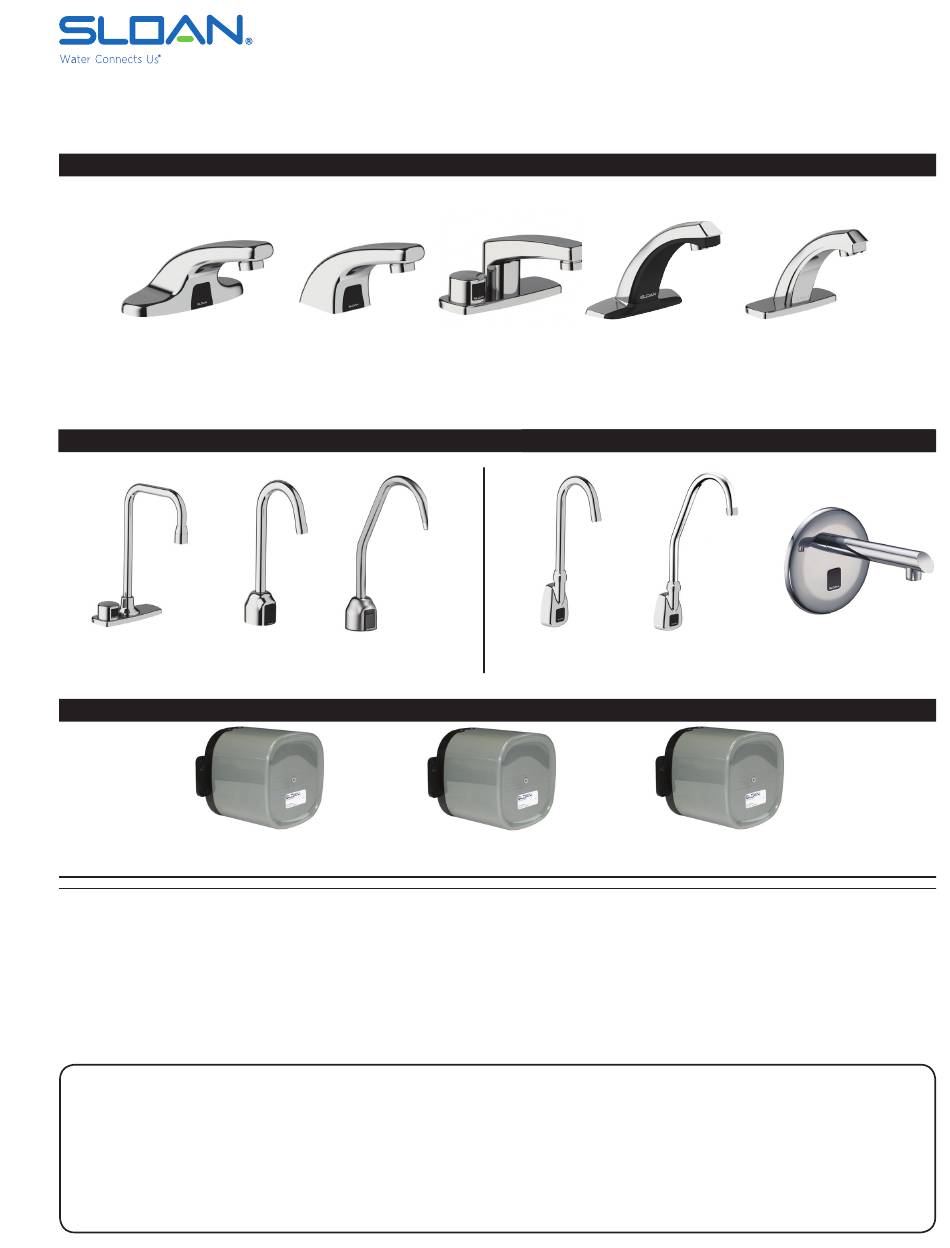

Optima sensor activated lavatory faucets with the optima control box

Advertisement

INSTALLATION INSTRUCTIONS FOR OPTIMA SENSOR ACTIVATED LAVATORY FAUCETS
DECK MOUNTED OPTIMA FAUCETS
ETF-600 Low-height, hardwired
EBF-650 Low-height, battery
GOOSENECK DECK MOUNTED OPTIMA FAUCETS
ETF-770 Hardwired with
ETF-700 Hardwired
EBF-750 Battery
side sensor
EBF-775 Battery with
side sensor
Control Box w/o Turbine

TABLE OF CONTENTS

• Prior To Install .......................................................................... 2.
• Mixing Valve Installation ........................................................... 2.
• Important ................................................................................ 2.
• Quick Connect Tee ................................................................... 2.
• Tools Required ......................................................................... 2.
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship
for a period of three (3) years (1 year for SF faucets, special finish and PWT electronics and 30 days on PWT software) from date of first purchase. During this period, Sloan Valve
Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole
and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer's cost. No claims will be allowed for labor, transportation or other costs.
This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale. This warranty does
not cover the life of the battery.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES
OF ANY MEASURE WHATSOEVER.
WITH THE OPTIMA CONTROL BOX
ETF-610 Low-height,hardwired
ETF-660 Low-height,
EBF-615 Low-height, battery
hardwire with side sensor
EBF-665 Low-height,
battery w/side sensor
ETF-700-S Hardwired
with surgical bend
EBF-750-S Battery
with surgical bend
CONTROL BOX FOR ALL FAUCETS
Control Box w/ 0.5 gpm Turbine
EFP-39-A
LIMITED WARRANTY
ETF-80 Mid-height, hardwired
EBF-85 Mid-height, battery
WALL MOUNTED OPTIMA FAUCETS
ETF-500-S Hardwired
ETF-500 Hardwired
with surgical bend
EBF-550 Battery
EBF-550-S Battery
with surgical bend
Control Box w/1.5 gpm Turbine
EFP-40-A
• Deck Mounted Rough-in .......................................................... 4.
• Wall Mounted Rough-in ............................................................ 5.
• Dimensional Data .................................................................... 5.
• Troubleshooting Instructions ..................................................... 7.
• Care and Cleaning Instructions ................................................. 8.
1
Code No. 0816843
Rev. 1 (06/18)
ETF-880 Mid-height, hardwired
EBF-187 Mid-height, battery
ETF-800 Hardwired
EBF-850 Battery
EFP-11-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFP-39-A and is the answer not in the manual?

Questions and answers

Thomas D Sowinski
March 13, 2025

Can I adjust how long the water stays on

1 comments:
Mr. Anderson
March 13, 2025

The Sloan EFP-39-A Control Module regulates the water flow duration after activation. To adjust the water duration, you need to configure the control module settings. Since this model is compatible with Sloan Optima electronic faucets that use Bluetooth technology, you may need to use the corresponding Bluetooth interface or app to modify the settings. Ensure compatibility before making adjustments.

This answer is automatically generated

Walter Hager
February 25, 2025

Sloan EFP39A , faucet not working , the hard wired plug is ok I switched plug from different electrical sockets , Replaced the 4 AA batteries . Now the red light is permanently on at the faucet . What else can I do ? Just as I was taking a photo the red light on faucet went out .

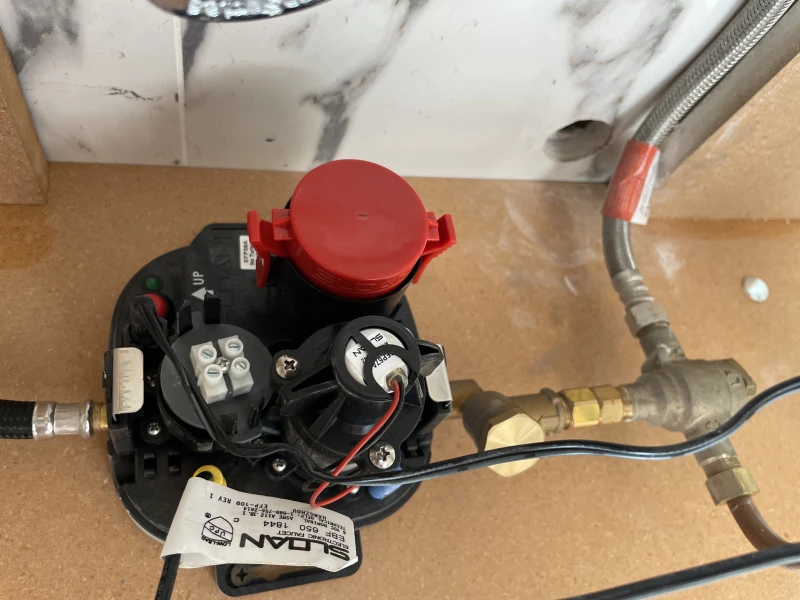

User image 67bdece1693ce
